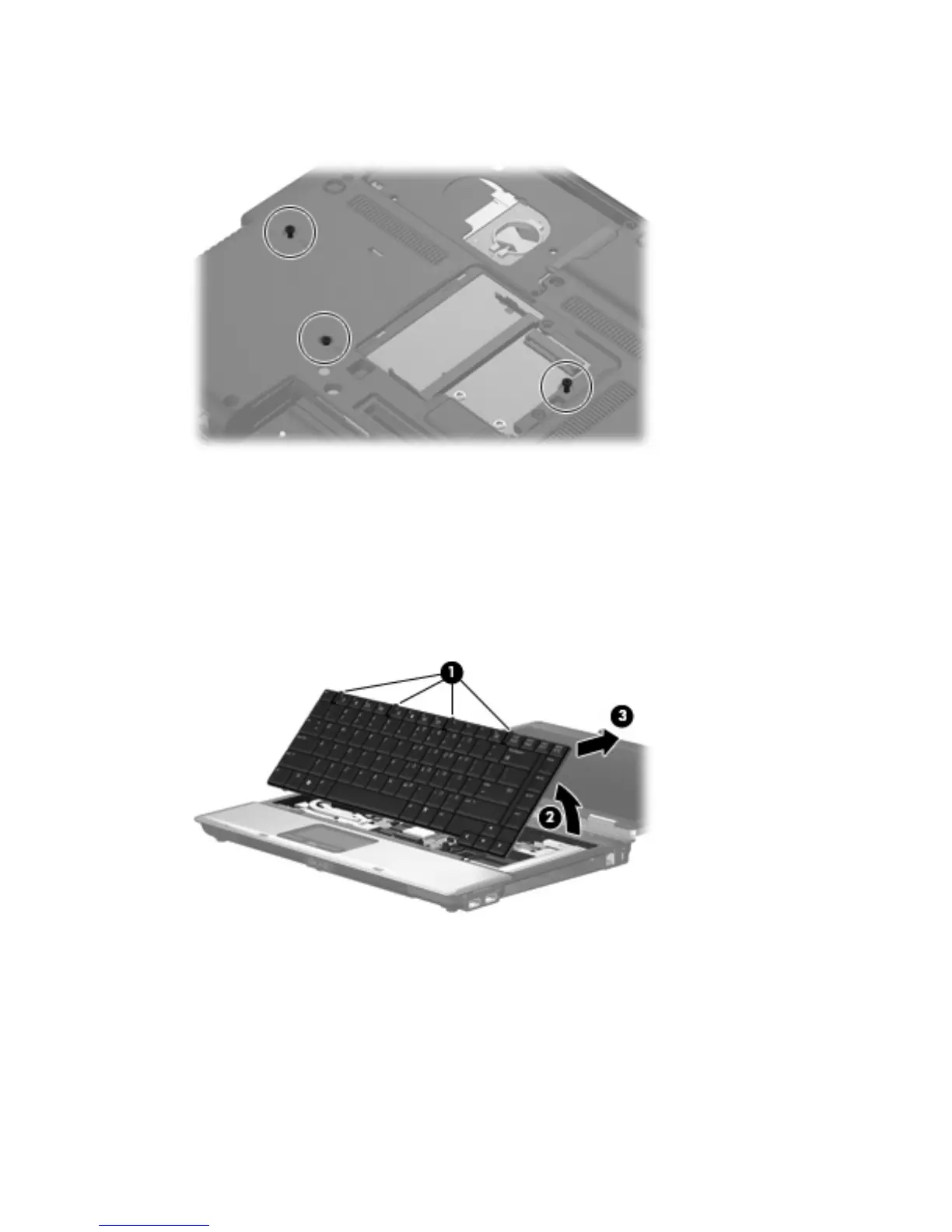

Remove the keyboard:
1. Loosen the three Phillips PM2.5×9.0 captive screws that secure the keyboard to the computer.
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.
4. Slide the four keyboard retention tabs (1) toward you. The tabs are located between the esc and
f1 keys, between the f4 and f5 keys, between the f8 and f9 keys, and between the f12 and scroll
keys.
5. Lift the rear edge of the keyboard (2) until it rests at an angle, and slide it back (3) until it rests on
the display assembly and switch cover.
62 Chapter 4 Removal and replacement procedures
