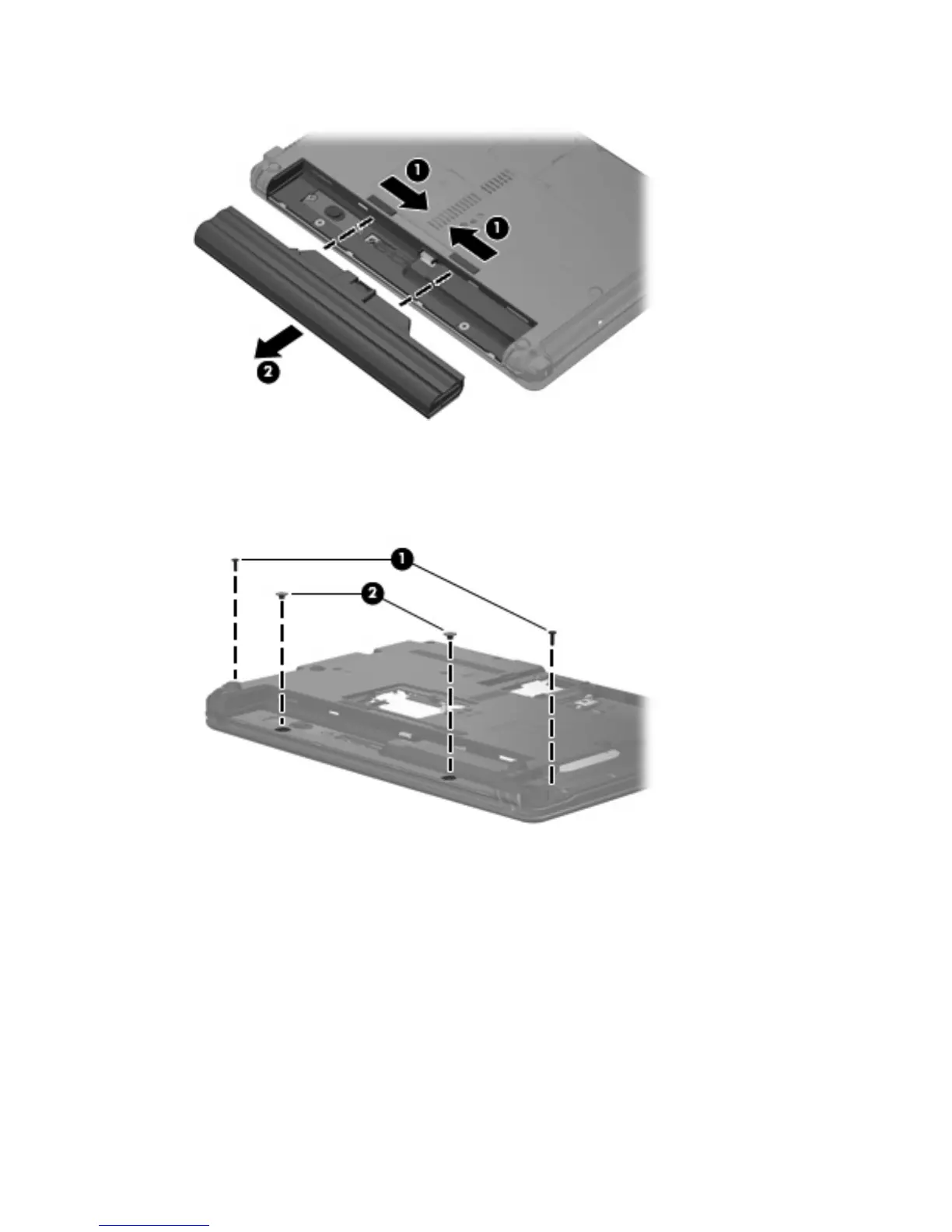

6. Remove the battery (2) from the computer.
7. Remove the following screws:
(1) Two slotted Torx ST8M2.5×7.0 screws
(2) Two Torx T8M2.0×2.0 broadhead (9-mm) screws
6 Chapter 1 Removal and replacement procedures ENWW
