HP Compaq 6530s Replacement Guide

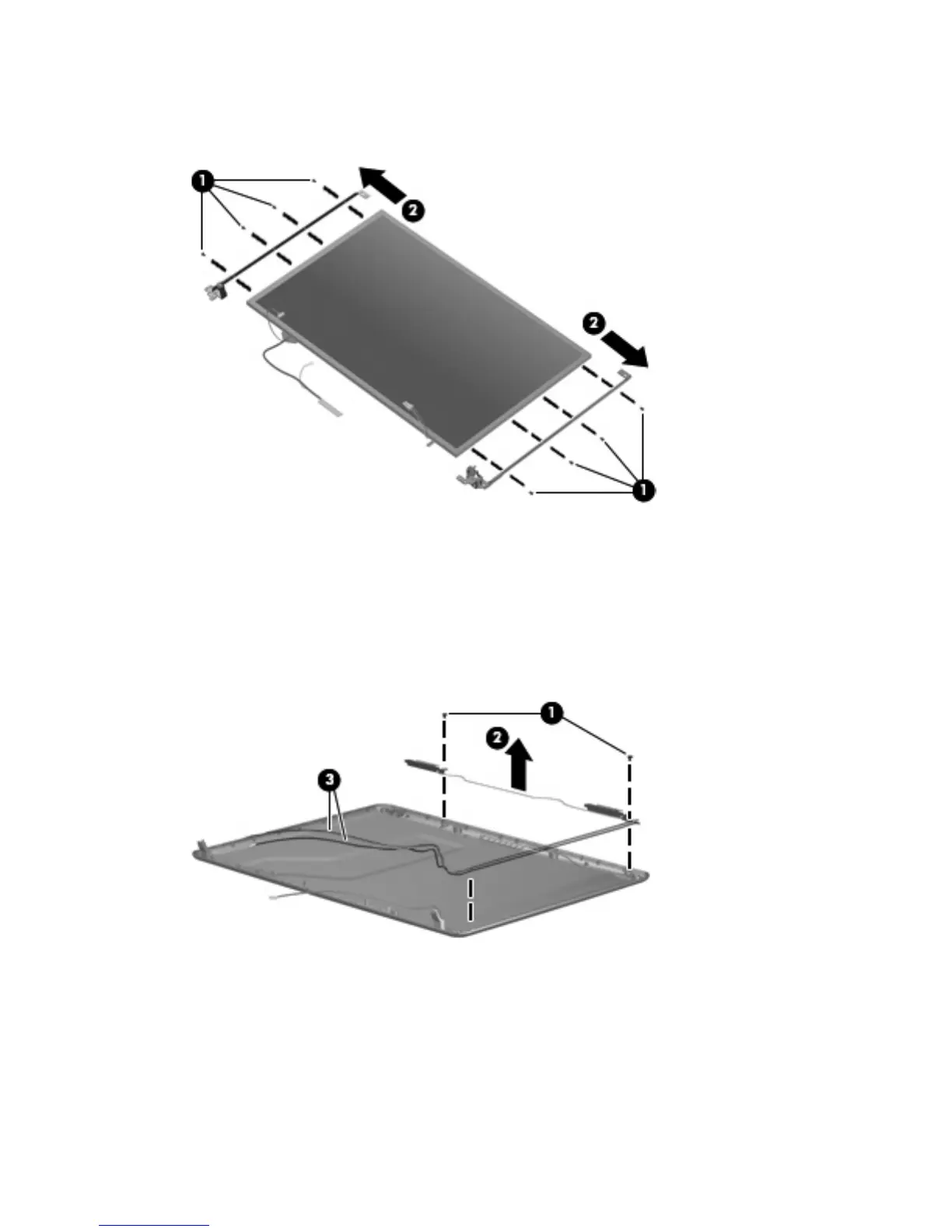

38. Remove the display hinges (2). The left and right display hinges are available in the Bracket Kit,
spare part numbers 493170-001 (for use only with HP Compaq 6535s Notebook PC models) and
491639-001 (for use only with HP Compaq 6530s and 6531s Notebook PC models).
39. If it is necessary to replace the wireless antenna cables, remove the two Torx T8M2.5×4.0 screws
(1) that secure the wireless antenna transceiver to the top cover. The wireless antenna cables are
included in the Display Cable Kit, spare part numbers 497620-001 (for use only with HP Compaq
6535s Notebook PC models) and 491637-001 (for use only with HP Compaq 6530s and 6531s
Notebook PC models).
40. Remove the wireless antenna (2).
41. Remove the wireless antenna cables (3) from the clips and routing channels built into the top cover.
14 Chapter 1 Removal and replacement procedures ENWW
