HP Compaq 6820s User Manual

2.

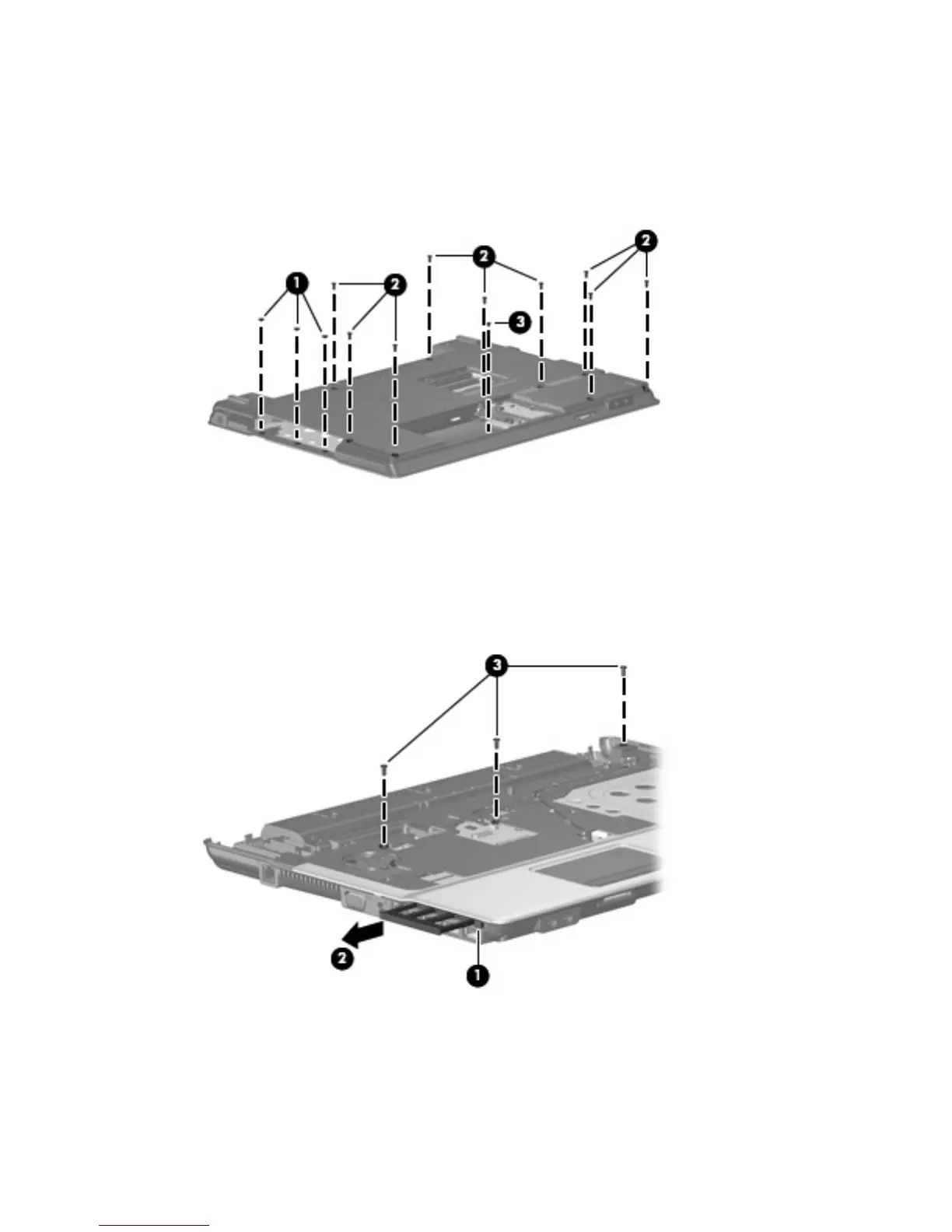

Remove the followng screws:
(1) Three Phillips PM2.0×2.0 broad-head screws
(2) Nine Torx T8M2.5×7.0 screws
(3) One Torx T8m2.5×4.0 screw
3.
Turn the computer right-side up, with the left side toward you.
4. Press in on the ExpressCard slot eject button (1) two times. The first press releases the ExpressCard
slot eject button. The second press releases the ExpressCard slot bezel from the ExpressCard slot.
5. Remove the ExpressCard slot bezel (2).
6. Remove the three Torx T8M2.5×7.0 screws (3) that secure the top cover to the computer.
7. Lift the rear edge of the top cover (1) and swing it up and forward until it rests at an angle.
8. Lift the front edge of the top cover (2) until it disengages from the base enclosure.
9. Tilt the top cover (3) back until the TouchPad cable is accessible.
Component replacement procedures 55

HP Compaq 6820s Specifications

General

Processor	Intel Core 2 Duo
Graphics	Intel GMA X3100
RAM	Up to 4 GB DDR2
Battery	6-cell Lithium-Ion
Display Size	17 inches
Battery Life	Up to 3 hours
Processor Speed	2.0 GHz
Display	17-inch
Storage	160 GB
Optical Drive	DVD+/-RW SuperMulti
Operating System	Windows Vista
Connectivity	USB 2.0, VGA
Chipset	Mobile Intel GM965 Express
Networking	10/100/1000 Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 x USB 2.0, VGA, microphone in, headphone out
Display Resolution	1440 x 900
