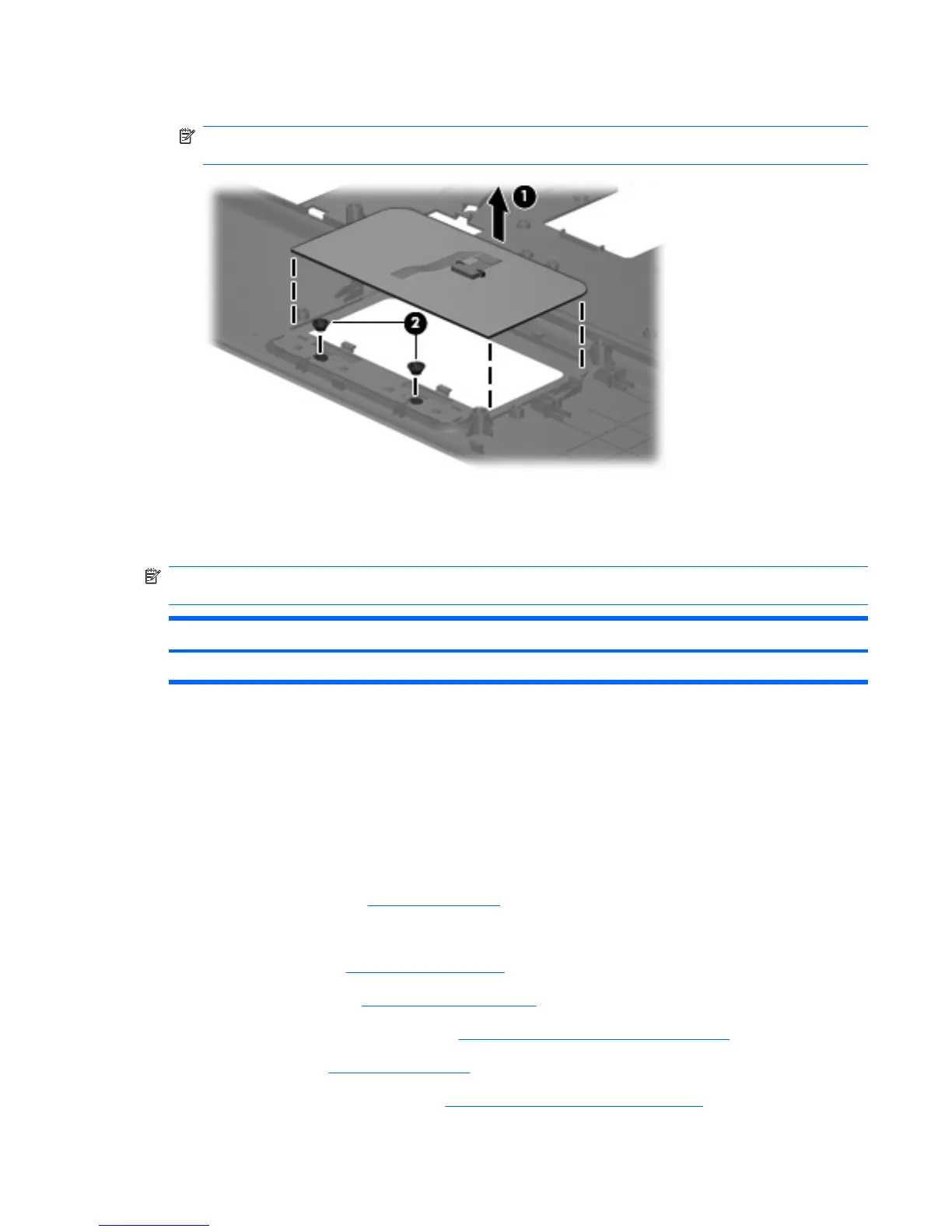

9. Remove the TouchPad board (1) from the top cover.
NOTE: When replacing the TouchPad board and TouchPad button board, be sure the TouchPad
button actuators (2) are installed in the top cover.
Reverse this procedure to install the TouchPad board and TouchPad button board.
Bluetooth module
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth
module cable is included in the Cable Kit, spare part number 457615-001.
Description Spare part number
Bluetooth module 398393-002
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 35).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 36)
b.
Optical drive (see
Optical drive on page 42)
c.
Switch cover and keyboard (see
Switch cover and keyboard on page 44)
d.
Speaker (see
Speaker on page 48)
e.
Display lid switch module (see
Display lid switch module on page 49)
Component replacement procedures 59
