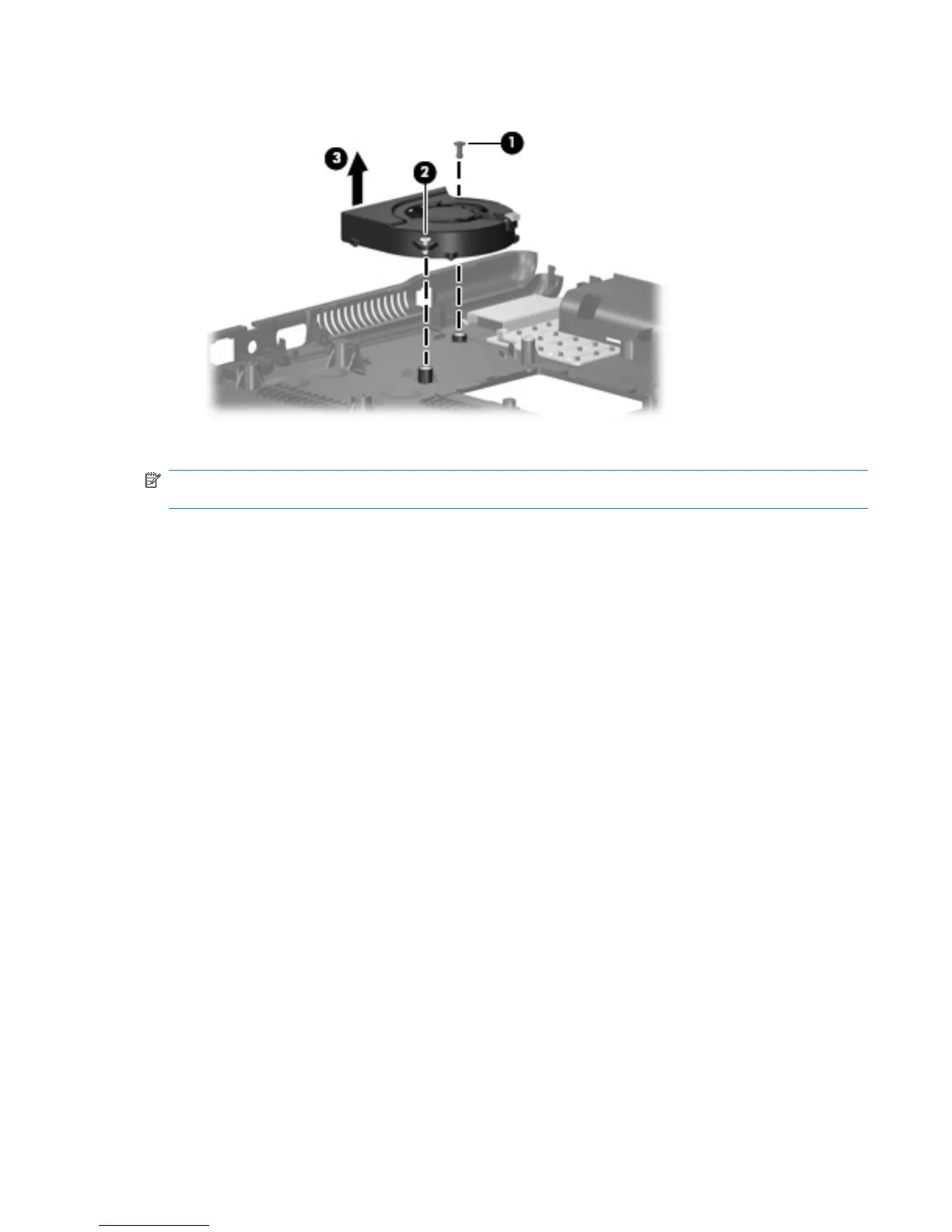

3. Remove the fan (3) from the base enclosure.
Reverse this procedure to install the fan.
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side of
the computer.
The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is
designed to turn on automatically when high temperature conditions exist. These conditions are affected
by high external temperatures, system power consumption, power management/battery conservation
configurations, battery fast charging, and software requirements. Exhaust air is displaced through the
ventilation grill located on the left side of the computer.
Component replacement procedures 65

HP Compaq 6820s Specifications

General

Processor	Intel Core 2 Duo
Graphics	Intel GMA X3100
RAM	Up to 4 GB DDR2
Battery	6-cell Lithium-Ion
Display Size	17 inches
Battery Life	Up to 3 hours
Processor Speed	2.0 GHz
Display	17-inch
Storage	160 GB
Optical Drive	DVD+/-RW SuperMulti
Operating System	Windows Vista
Connectivity	USB 2.0, VGA
Chipset	Mobile Intel GM965 Express
Networking	10/100/1000 Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 x USB 2.0, VGA, microphone in, headphone out
Display Resolution	1440 x 900
