8. Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on
the latch and rotating the latch to the open position.
NOTE: Your computer may look different than the illustration shown below.

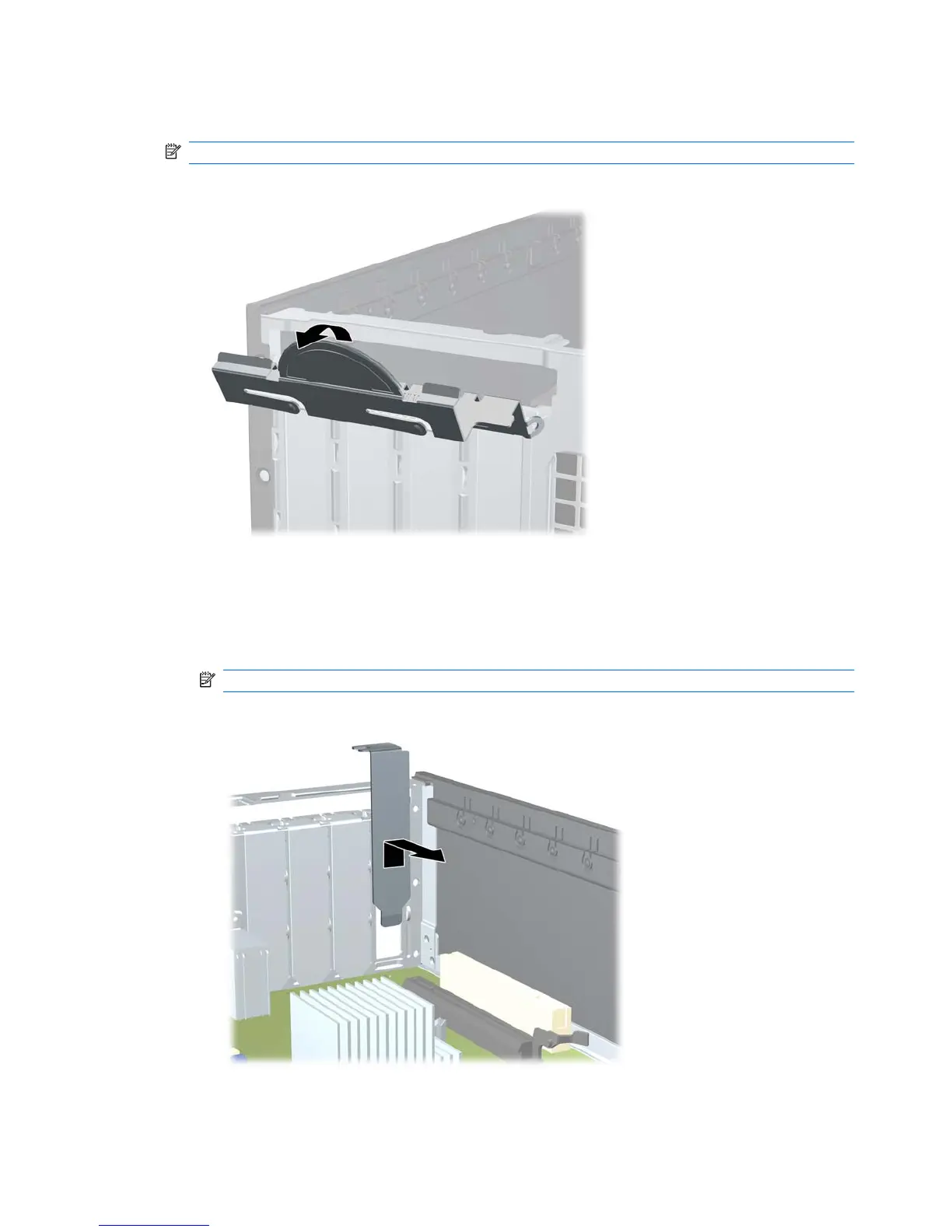

Figure 11 Opening the Expansion Slot Retainer
9. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside
of the chassis.
NOTE: Your computer may look different than the illustration shown below.
Figure 12 Removing an Expansion Slot Cover
16 Hardware Upgrades ENWW
