8. If removing an optical drive, disconnect the power cable (1) and data cable (2) from the rear of the
optical drive.
NOTE: Your computer may look different than the illustration shown below.

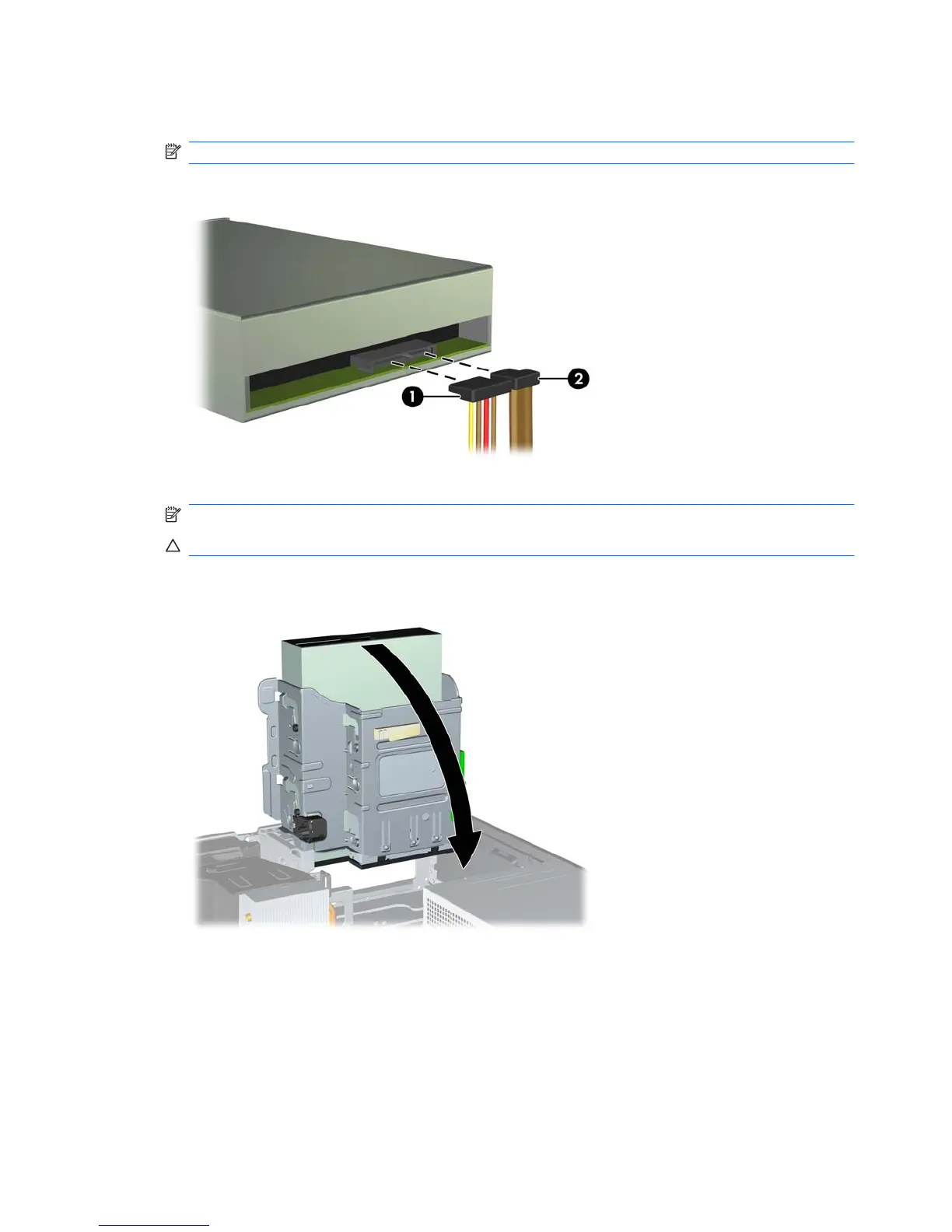

Figure 20 Disconnecting the Power and Data Cables
9. Rotate the drive cage back down to its normal position.
NOTE: Your computer may look different than the illustration shown below.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 21 Rotating the Drive Cage Down
24 Hardware Upgrades ENWW
