8. Rotate the power supply to its upright position. The hard drive is located beneath the power supply.
NOTE: Your computer may look different than the illustration shown below.

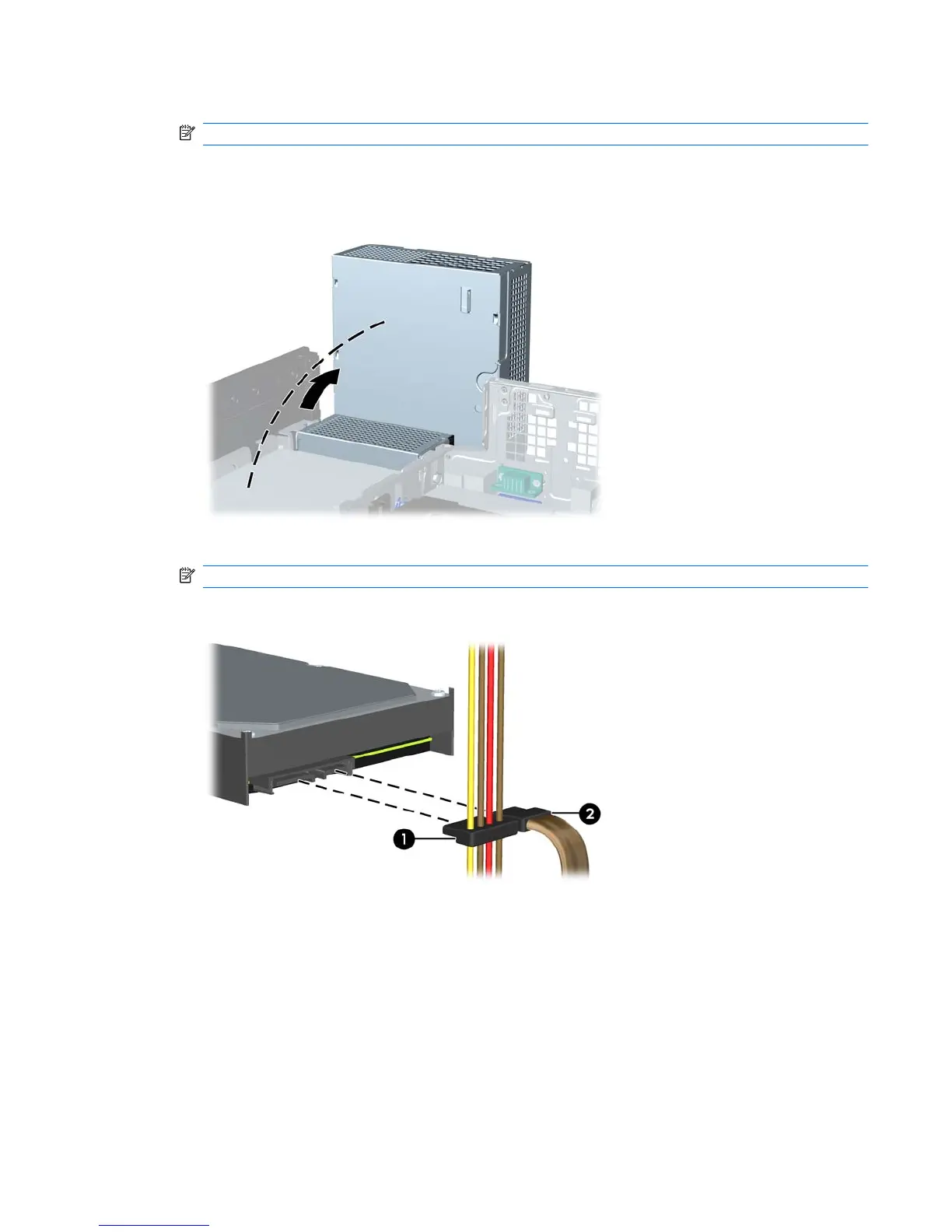

Figure 33 Raising the Power Supply
9. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
NOTE: Your computer may look different than the illustration shown below.
Figure 34 Disconnecting the Hard Drive Power Cable and Data Cable
ENWW Installing and Removing Drives 33

HP Compaq 8100 Elite Specifications

General

Chipset	Intel Q57 Express
Processor	Intel Core i5 or i7
Memory	Up to 16 GB DDR3 SDRAM
Storage	SATA hard drives up to 1 TB
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional
Form Factor	Small Form Factor (SFF), Convertible Minitower (CMT)
Audio	Integrated High Definition Audio with Realtek ALC261 codec
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, DisplayPort, VGA, serial, parallel, PS/2
Power Supply	240W (SFF), 320W (CMT)
