HP Compaq 8100 Elite User Manual

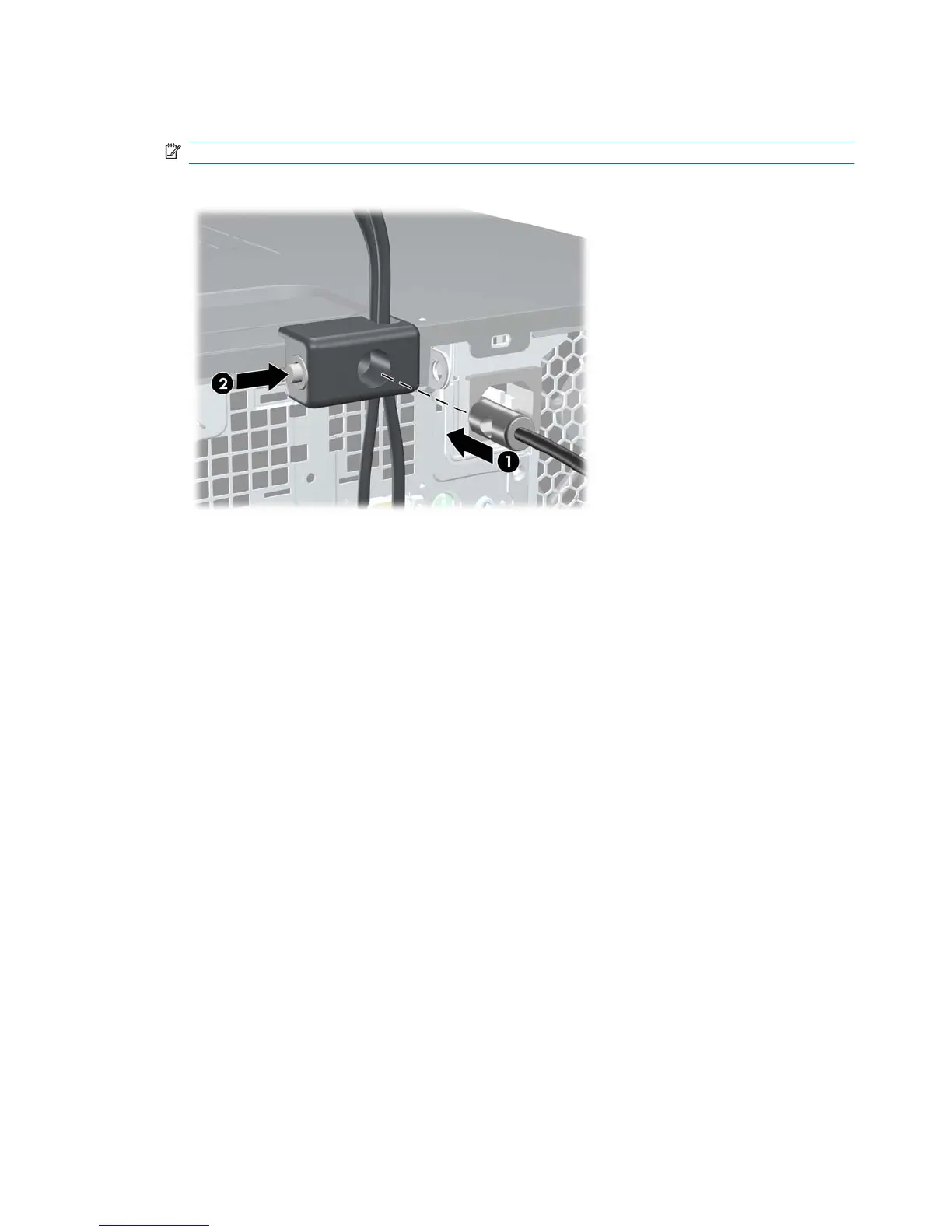

4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
NOTE: Your computer may look different than the illustration shown below.
Figure 54 Engaging the Lock
46 Hardware Upgrades ENWW

HP Compaq 8100 Elite Specifications

General

Chipset	Intel Q57 Express
Processor	Intel Core i5 or i7
Memory	Up to 16 GB DDR3 SDRAM
Storage	SATA hard drives up to 1 TB
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional
Form Factor	Small Form Factor (SFF), Convertible Minitower (CMT)
Audio	Integrated High Definition Audio with Realtek ALC261 codec
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, DisplayPort, VGA, serial, parallel, PS/2
Power Supply	240W (SFF), 320W (CMT)
