HP Compaq 8200 Elite User Manual

3. Insert the wireless receiver into a USB port on the computer.

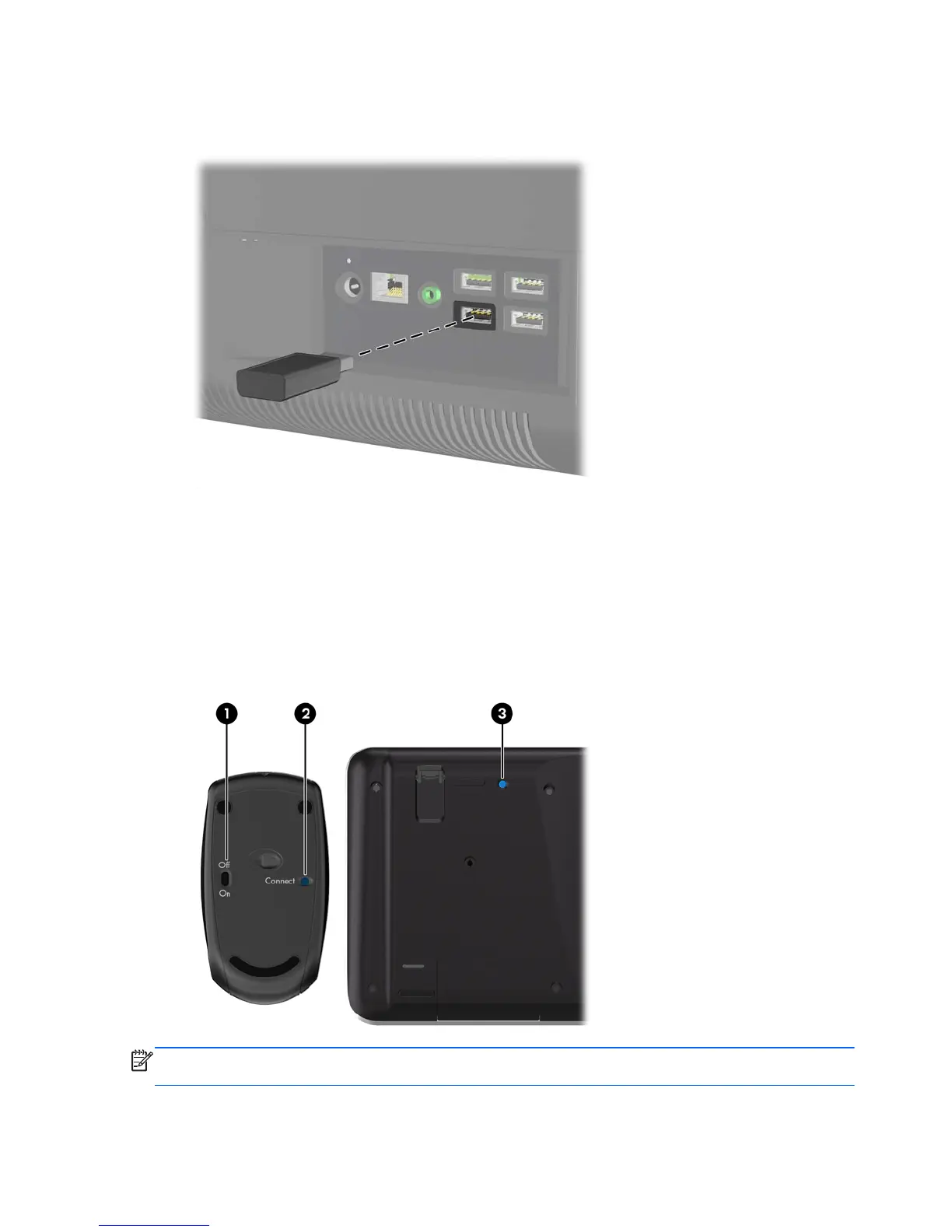

Figure 2-23 Installing the Wireless Receiver
4. Make sure the Power switch on the bottom of the mouse is in the On position (1).
5. Press the Connect button on the bottom of the mouse (2) for fives seconds. The blue activity
LED from the wireless receiver illuminates when the synchronization command has been
received and turns off when synchronization is complete.
6. Press the Connect button on the bottom of the keyboard (3) for five seconds. The blue activity
LED from the wireless receiver illuminates when the synchronization command has been
received and turns off when synchronization is complete.
Figure 2-24 Synchronizing the Wireless Keyboard and Mouse
NOTE: If the procedure does not work, remove and then re-insert the wireless keyboard and mouse
receiver from the back of the computer and then synchronize the keyboard and mouse again.
20 Chapter 2 Hardware Repair and Upgrade ENWW

HP Compaq 8200 Elite Specifications

General

Graphics	Intel HD Graphics 2000/3000 or optional discrete graphics
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q67 Express
Memory	Up to 32 GB DDR3 SDRAM
Storage	250GB, 320GB, 500GB, 1TB HDD or 128GB SSD
Optical Drive	DVD-ROM
Ports	USB 2.0, DisplayPort, VGA, serial, parallel, PS/2, audio in/out
Form Factor	Small Form Factor (SFF)
Audio	Integrated high-definition audio
Operating System	Windows 7
Power Supply	240W (SFF), 320W (MT)
Processor	Intel Core i3, i5, or i7 (2nd Gen)
