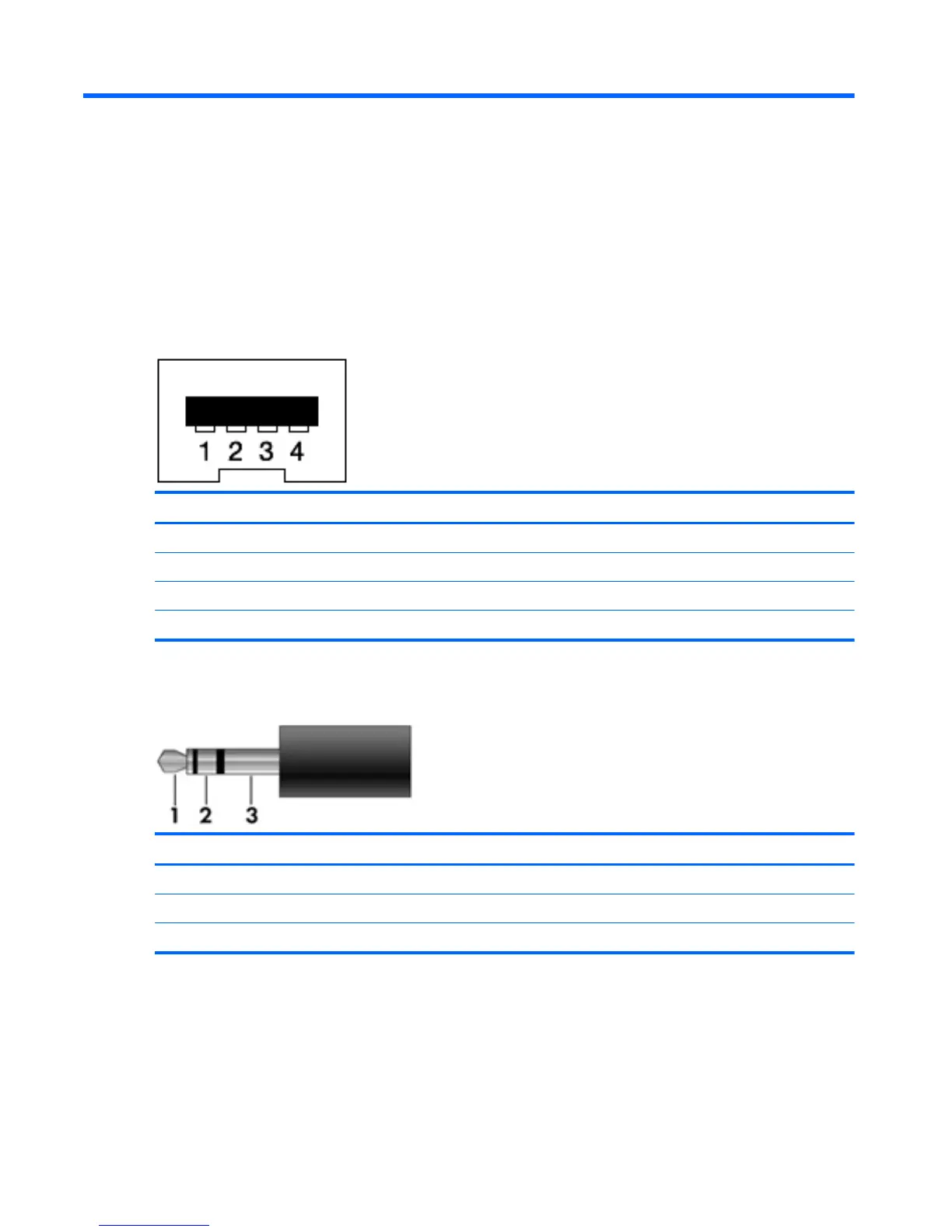

9 Connector pin assignments
1394
Pin Signal
1 Twisted pair B-
2 Twisted pair B+
3 Twisted pair A-
4 Twisted pair A+
Audio-out (headphone)
Pin Signal
1 Audio out, left channel
2 Audio out, right channel
3 Ground
146 Chapter 9 Connector pin assignments
