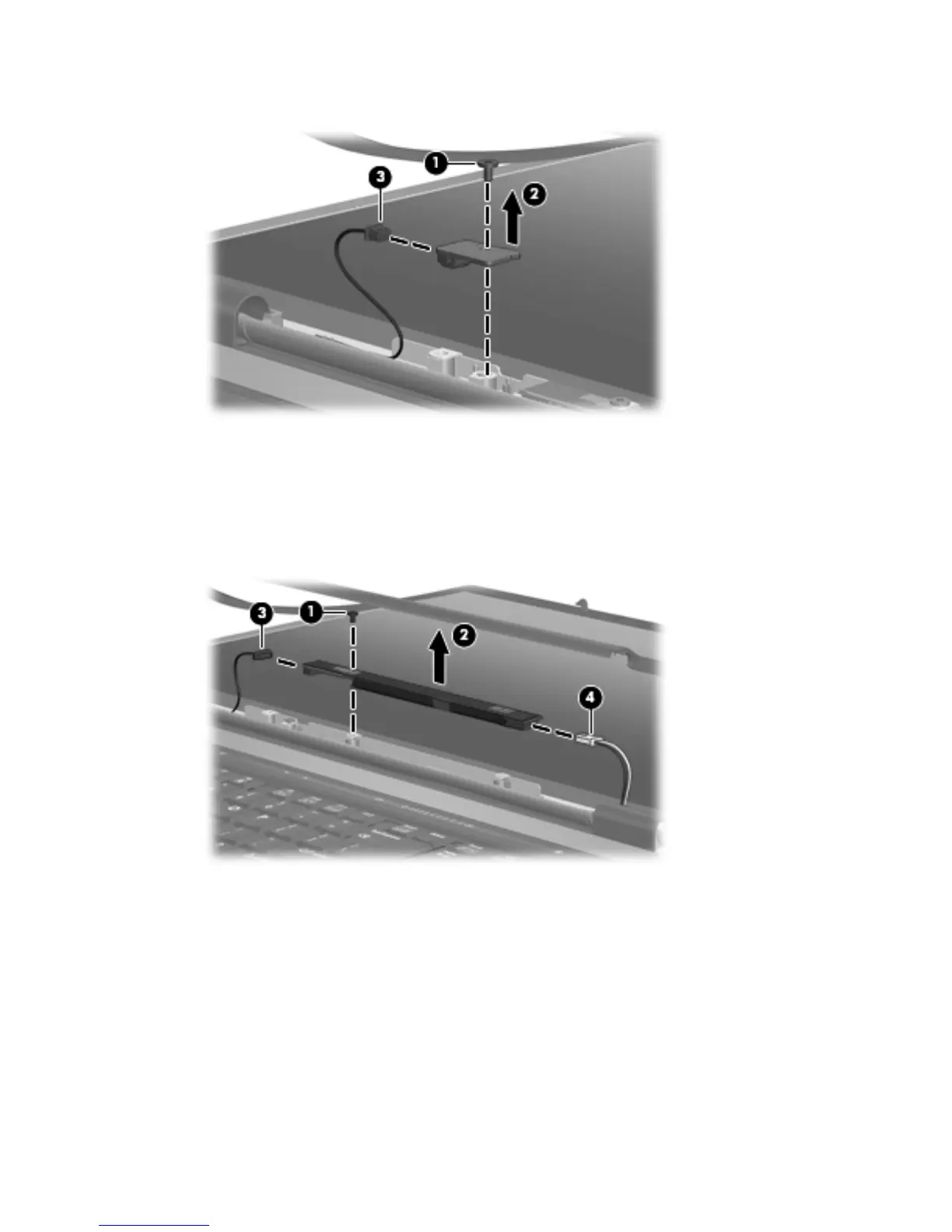

8. Disconnect the ambient light sensor board cable (3) from the ambient light sensor board.
9. Remove the Torx T8M2.5×4.0 screw (1) that secures the display inverter to the display
enclosure.
10. Release the inverter (2) from the display enclosure as far as the display panel cable and
backlight cable allow.
11. Disconnect the display panel cable (3) and the backlight cable (4) from the display inverter.
12. Remove the display inverter.
Reverse this procedure to install the display inverter.
