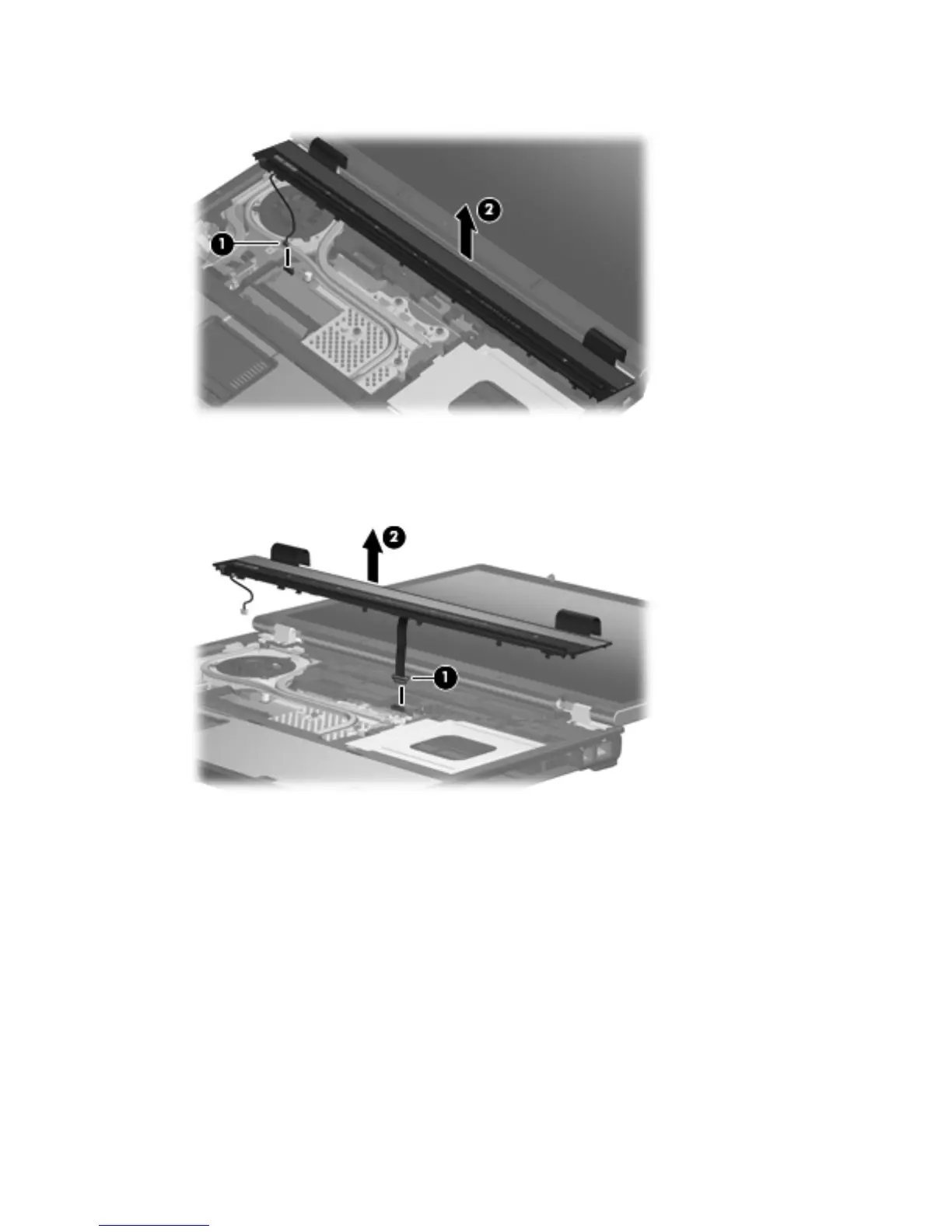

6. Lift the front edge of the switch cover (2) until it disengages from the computer.
7. Release the ZIF connector (1) to which the LED board cable is connected and disconnect the
cable from the system board.
8. Remove the switch cover (2).
Reverse this procedure to install the switch cover.
70 Chapter 4 Removal and replacement procedures
