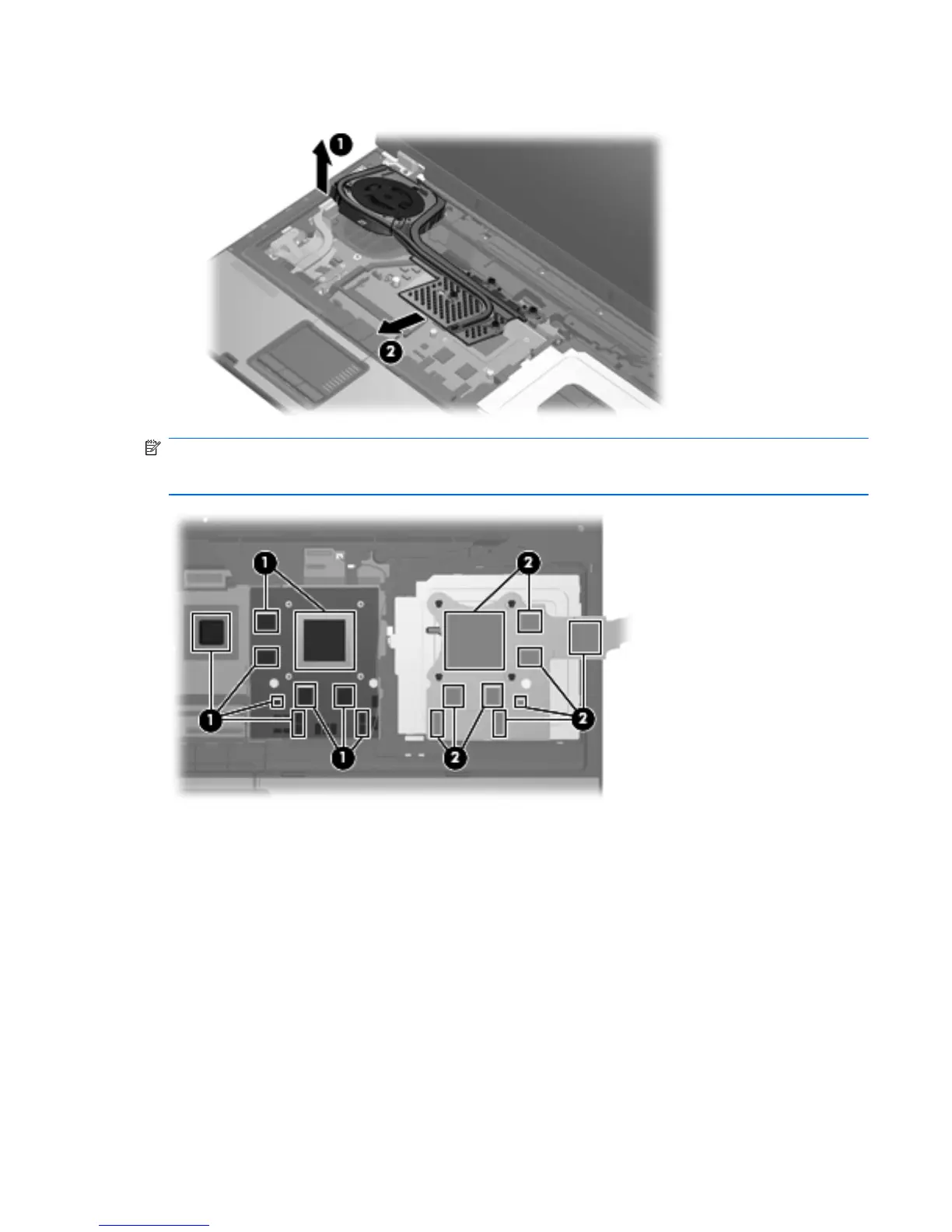

5. Remove the fan/heat sink assembly (2) by sliding it forward.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the graphics card (1)
and fan/heat sink assembly(2) each time the fan/heat sink assembly is removed. Thermal material is
included with all fan/heat sink assembly and graphics card spare part kits.
Reverse this procedure to reassemble and install the fan/heat sink assembly.
Component replacement procedures 73
