4. Remove the battery (see Battery on page 46).
5. Remove the following components:
a. Keyboard (see
Keyboard on page 62)
b. Switch cover (see
Switch cover on page 69)
c. Fan/heat sink assembly (see
Fan/heat sink assembly on page 72)
d. Processor heat sink (see
Heat sink on page 76)

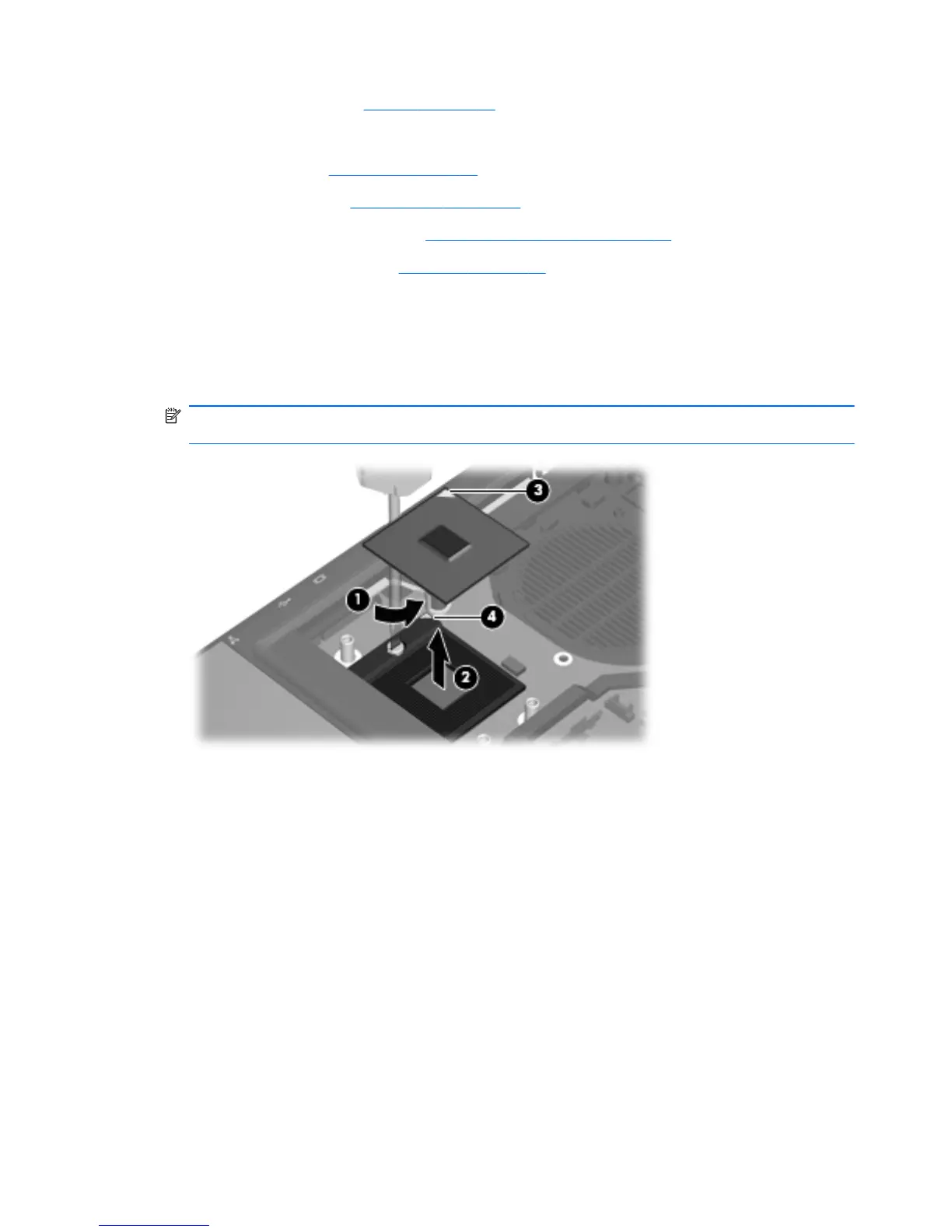

Remove the processor:
1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn
counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
