HP Compaq CQ58 User Manual

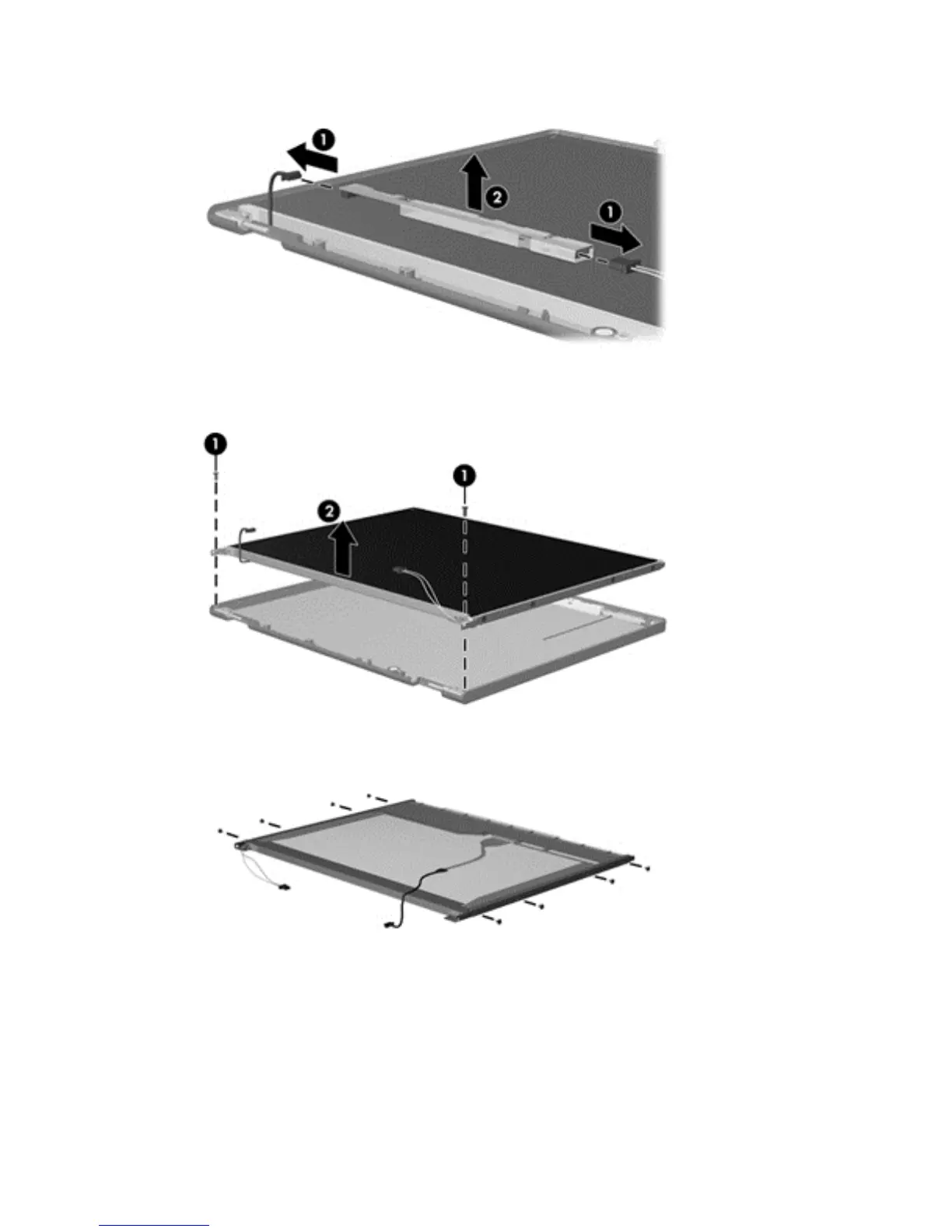

4. Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).
5. Remove all screws (1) that secure the display panel assembly to the display enclosure.
6. Remove the display panel assembly (2) from the display enclosure.
7. Turn the display panel assembly upside down.
8. Remove all screws that secure the display panel frame to the display panel.
9. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display
panel frame.
ENWW Display 121

HP Compaq CQ58 Specifications

General

Processor	Intel Celeron or AMD E-Series
RAM	Up to 8GB DDR3
Display	15.6-inch HD (1366x768)
Graphics	Intel HD Graphics or AMD Radeon HD Graphics
Operating System	Windows 7 or Windows 8
Battery	6-cell lithium-ion
Optical Drive	DVD±RW
Wireless	802.11b/g/n
Ports	1 x HDMI, 1 x VGA
Webcam	Integrated VGA webcam
