Optical drive
NOTE: The optical drive spare part kit includes the rear optical drive bracket but does not include the
optical drive cable or cable bracket. The optical drive cable and cable bracket are included in the optical drive
cable kit. See
Optical drive cable on page 88 for more information about the optical drive cable and cable
bracket.
Description Spare part number
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 689685-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 39).
5. Remove the memory module/wireless module compartment cover (see
WLAN module on page 48).
6. Remove the hard drive (see
Hard drive on page 53).

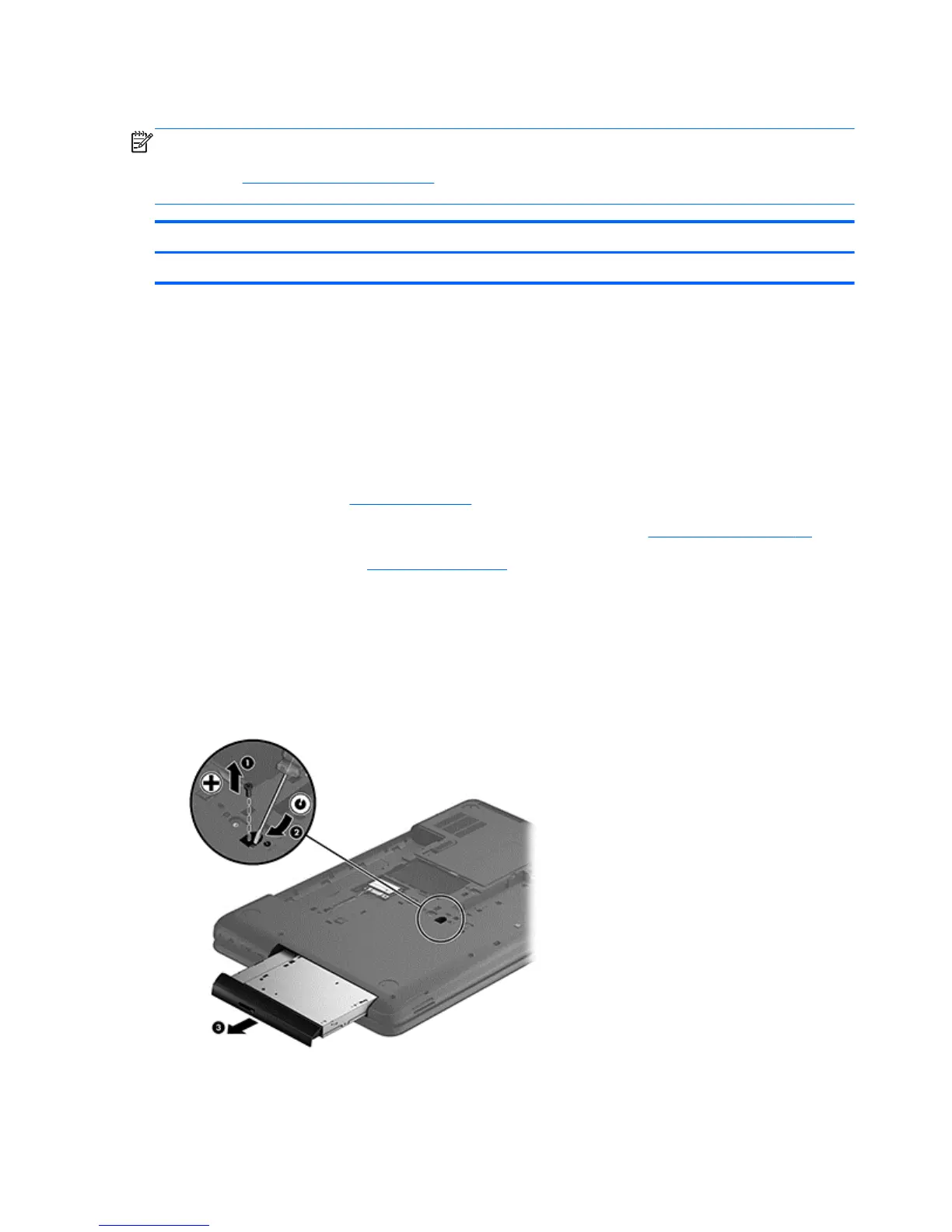

To remove the optical drive:
1. Remove the Phillips PM2.5×5.0 screw (1) that secures the optical drive to the computer.
2. Insert a screwdriver or similar small tool into the hole at the rear of the optical drive bay, and then push
the optical drive (2) to release it from the bay.
3. Remove the optical drive (3) by sliding it out of the optical drive bay.
4. If it is necessary to replace the optical drive bracket on the rear of the optical drive, position the optical
drive with the rear panel toward you.
56 Chapter 4 Removal and replacement procedures ENWW
