HP Compaq CQ58 User Manual

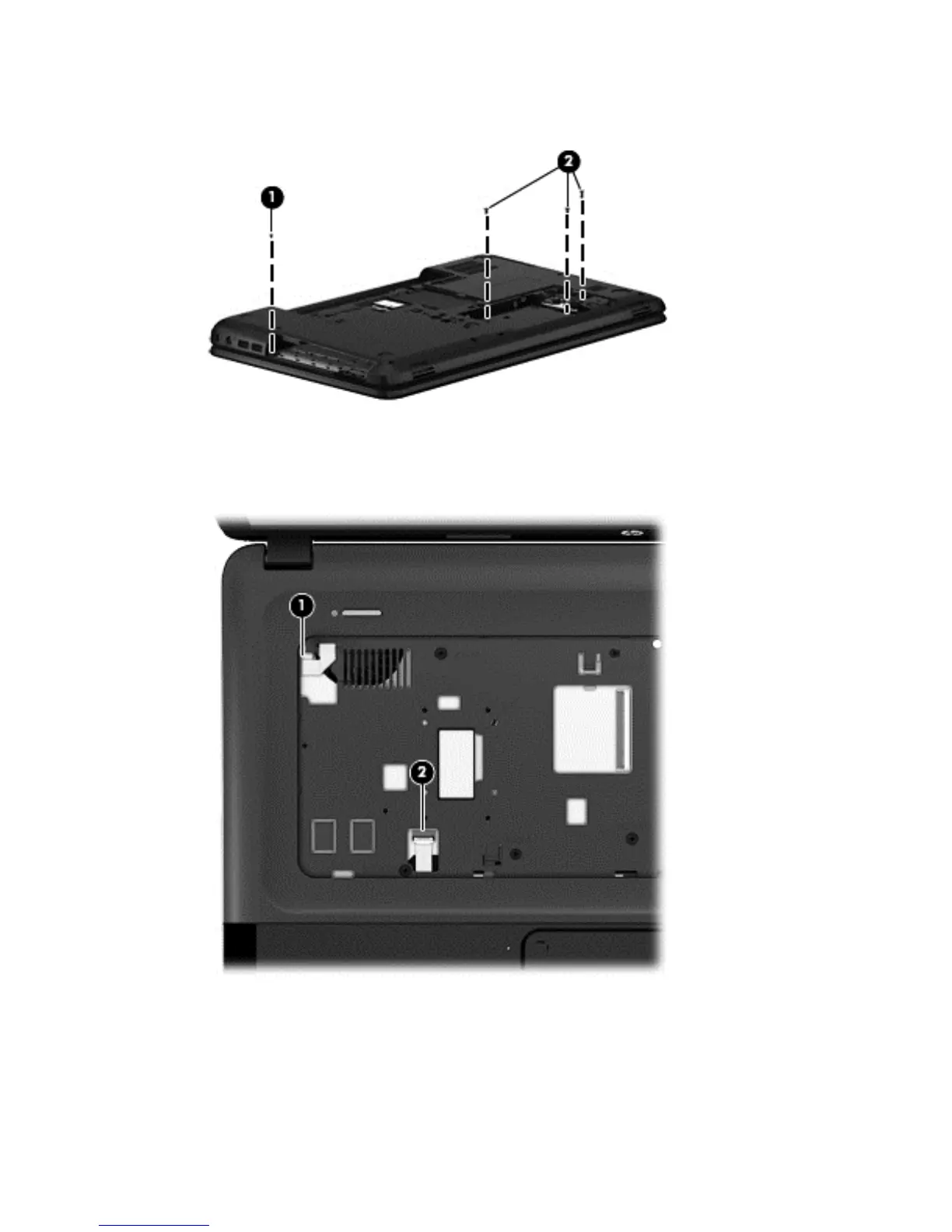

4. Remove the Phillips PM2.0×3.0 screw from the optical drive bay (1) and the three Phillips PM2.5×4.0
screws from the hard drive bay (2) that secure the top cover to the computer.
5. Turn the computer right-side up with the front toward you, and then open the computer.
6. Release the ZIF connectors to the power button board cable (1) and the TouchPad button board cable
(2), and then disconnect the cables from the system board.
ENWW Component replacement procedures 63

HP Compaq CQ58 Specifications

General

Processor	Intel Celeron or AMD E-Series
RAM	Up to 8GB DDR3
Display	15.6-inch HD (1366x768)
Graphics	Intel HD Graphics or AMD Radeon HD Graphics
Operating System	Windows 7 or Windows 8
Battery	6-cell lithium-ion
Optical Drive	DVD±RW
Wireless	802.11b/g/n
Ports	1 x HDMI, 1 x VGA
Webcam	Integrated VGA webcam
