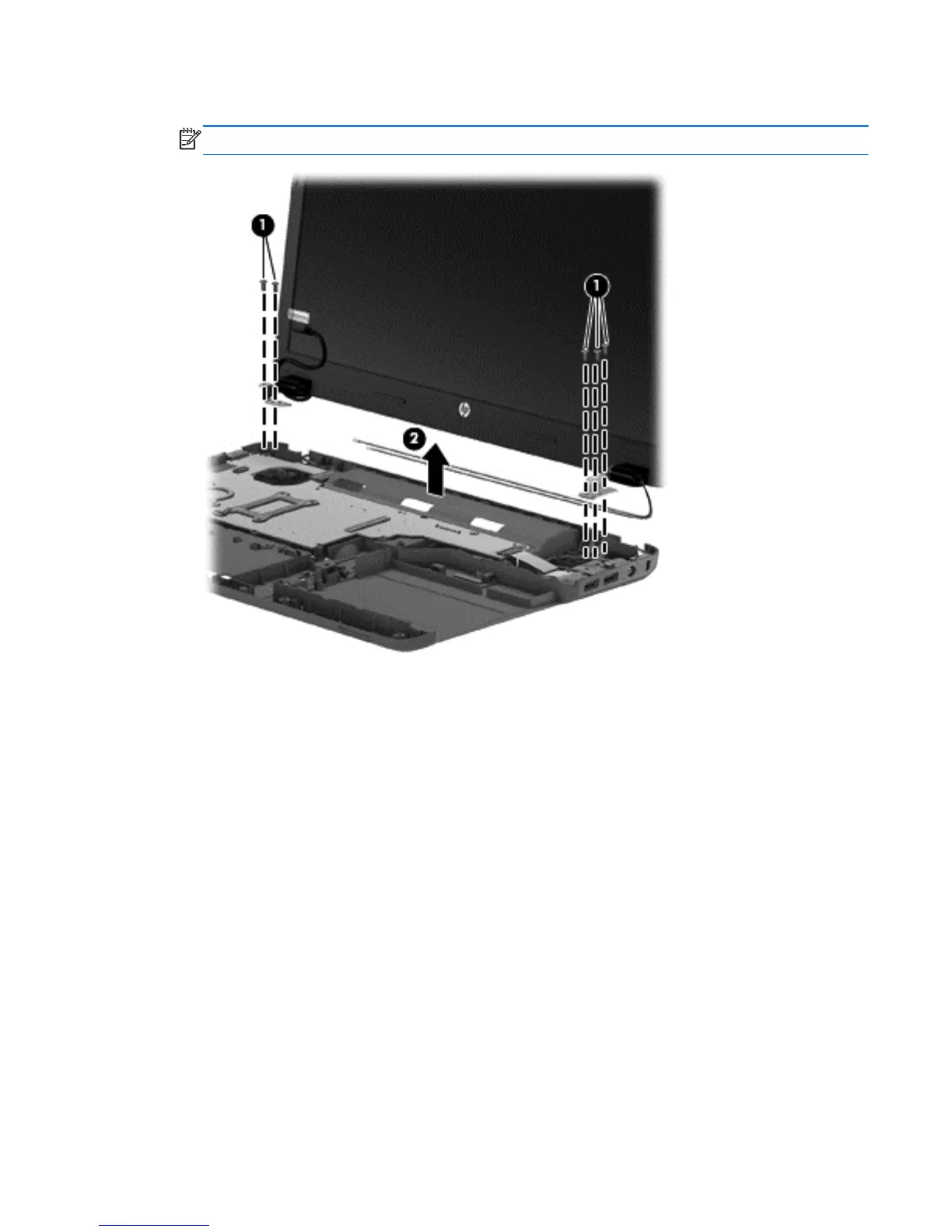

4. Remove the display assembly (2).
NOTE: Models may have either one or two antennas installed.
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display bezel:
a. Remove the two Mylar screw covers (1) and the two Phillips PM2.5×4.0 screws (2) that secure the
display bezel to the display assembly. The Mylar screw covers are included with the display bezel
spare part kit.
b. Flex the top edge (3), the left and right sides (4), and the bottom edge (5) of the display bezel until
the bezel disengages from the display enclosure.
ENWW Component replacement procedures 77
