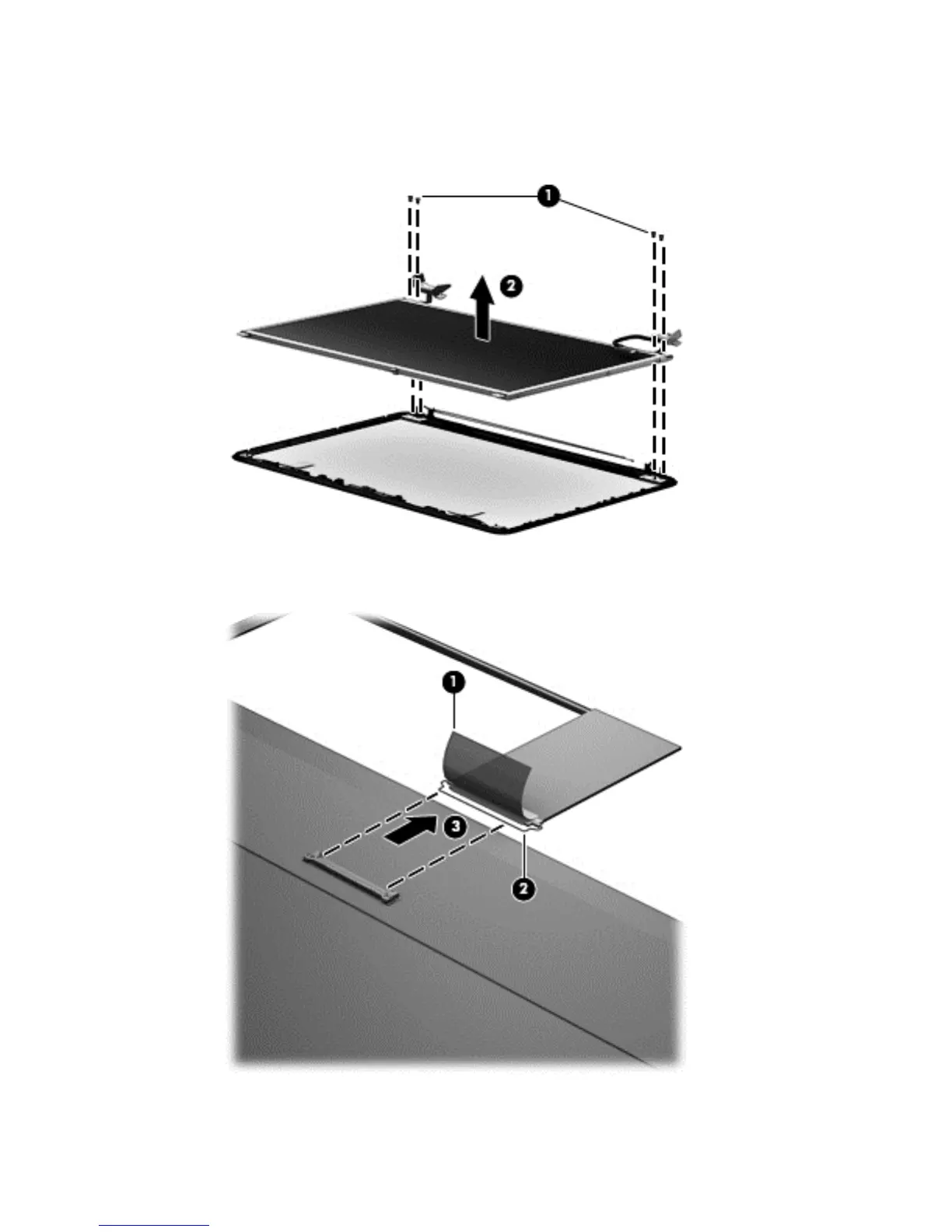

4. To remove the display panel, cable, and hinges:
a. Remove the four Phillips PM2.5×4.0 screws (1) that secure the display panel to the enclosure, and
then remove the display panel (2) from the enclosure.
b. On the back of the display panel, release the adhesive strip (1) that secures the display panel cable
to the display panel, and then disconnect (2) and remove (3) the cable.
c. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to the display panel.
82 Chapter 4 Removal and replacement procedures ENWW
