3–4 Reference Guide
Installation
Connecting the Speakers (Available
with Select Models)

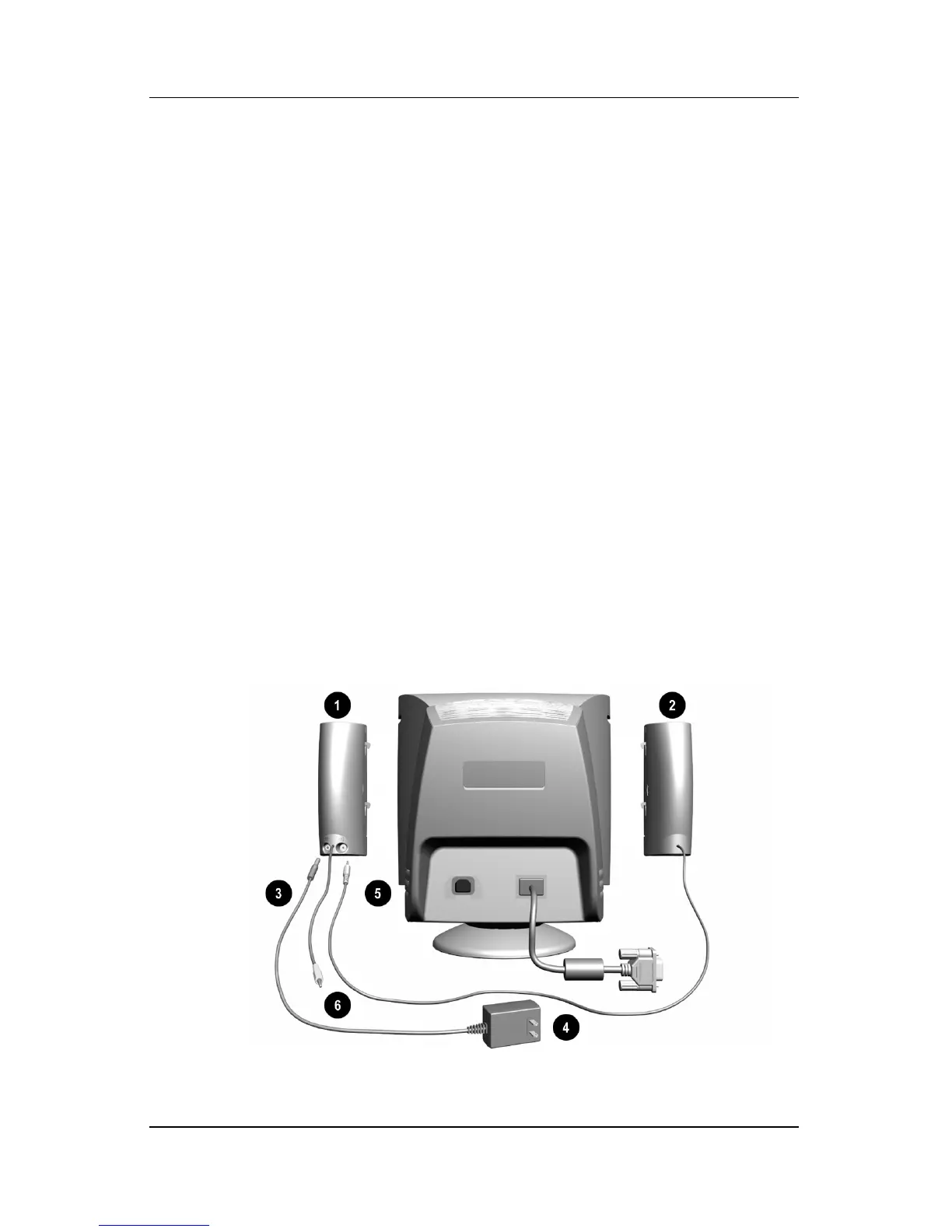

To install the JBL or Harman/Kardon speakers:
1. Place the control speaker 1 and the other speaker 2 on either
side of the monitor.
2. Attach the speaker power cable 3 to the black connector on
the back of the control speaker 1, then connect the AC
adapter 4 into an electrical wall outlet.
3. On the JBL speakers, insert the white connector 5 from the
other speaker 2 into the white port on the back of the control
speaker 1.
On the Harman/Kardon speakers, this connection is not
necessary.
4. Attach the green connector 6 from the control speaker 1 to
the green port on the back of the computer.
