HP Compaq dc5800

8. Rotate the power supply to its upright position. The hard drive is located beneath the power supply.

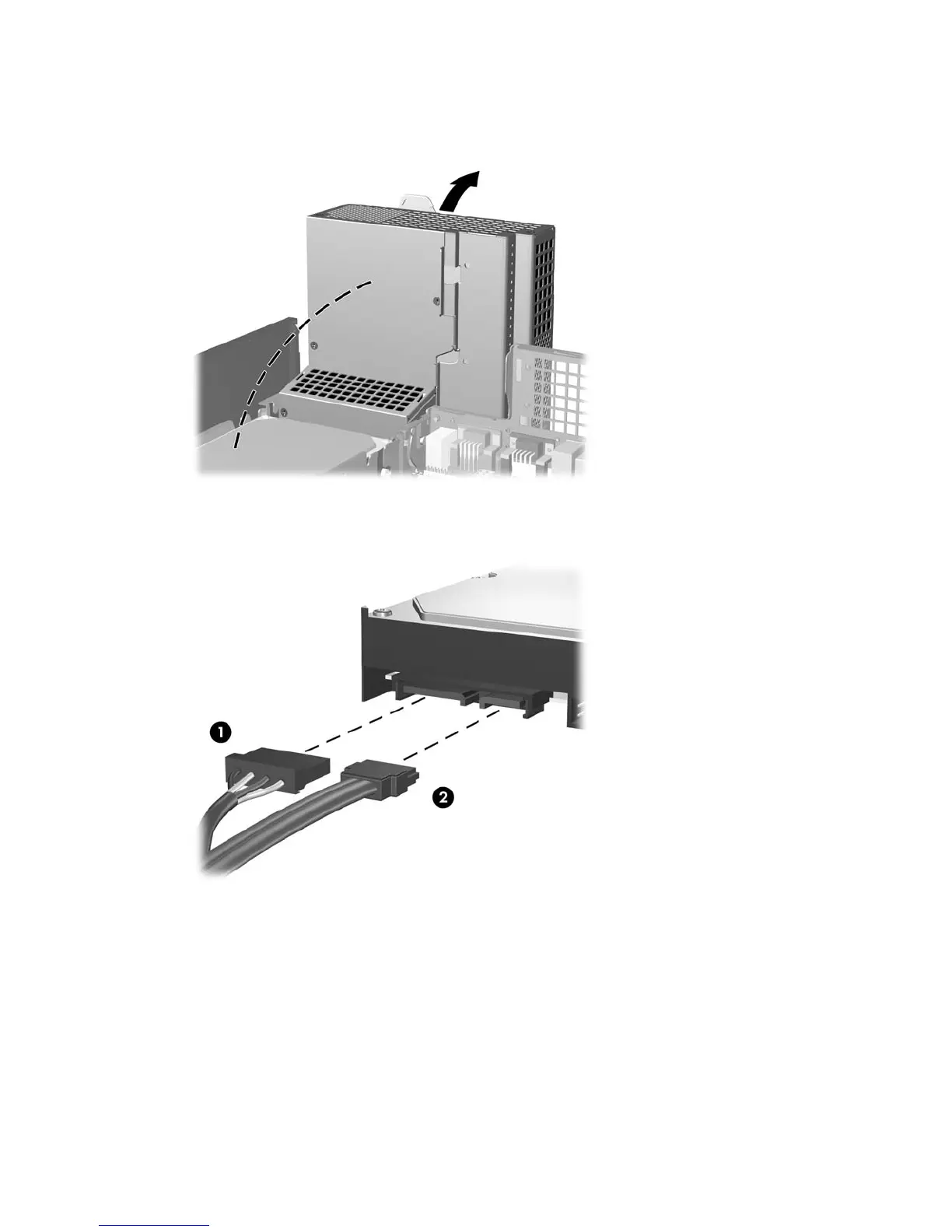

Figure 2-36 Raising the Power Supply
9. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 2-37 Disconnecting the Hard Drive Power Cable and Data Cable
40 Chapter 2 Hardware Upgrades ENWW
