HP Compaq dc5800

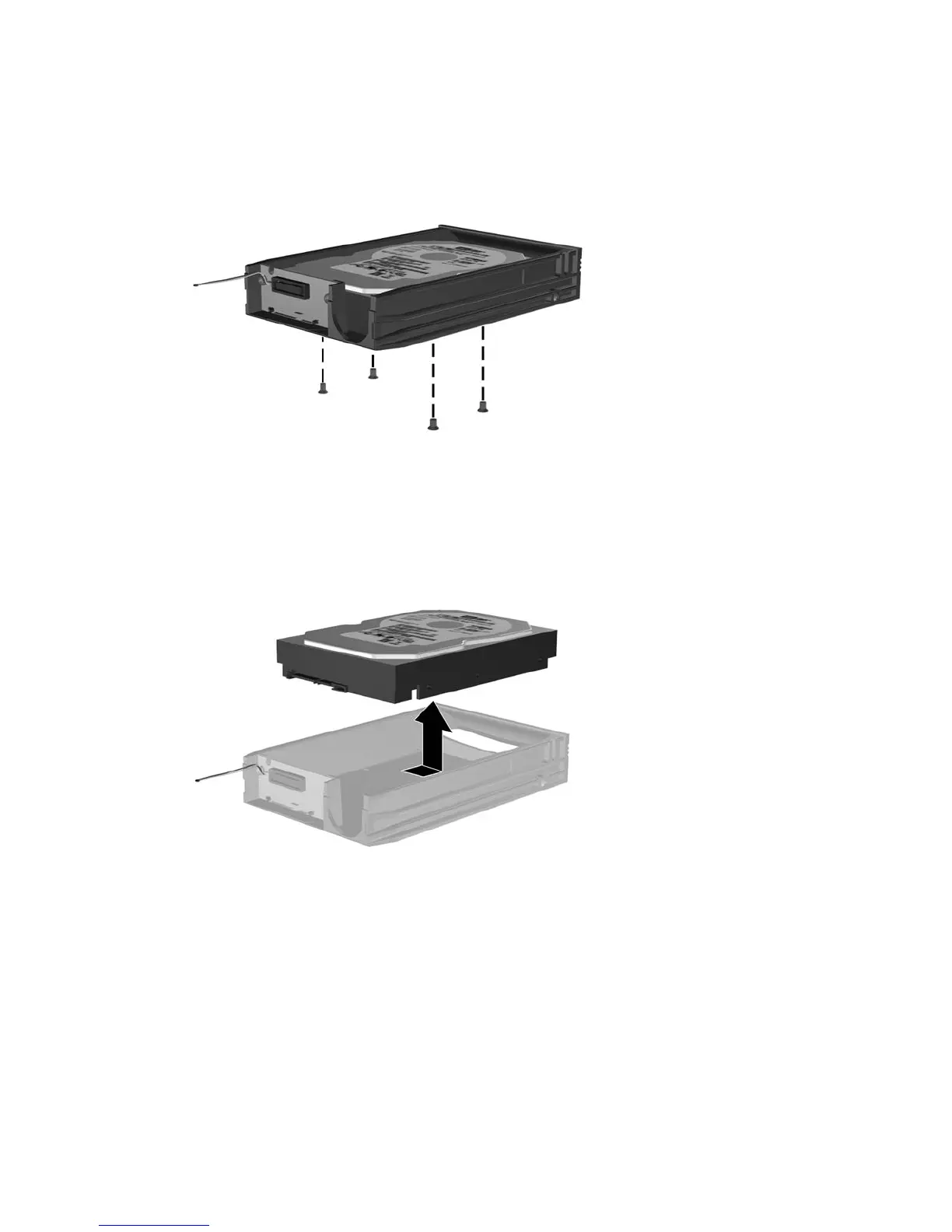

4. Remove the four screws from the bottom of the hard drive carrier.
Figure 2-43 Removing the Security Screws
5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 2-44 Removing the Hard Drive
44 Chapter 2 Hardware Upgrades ENWW
