System Overview
Microtower Chassis
Figure 2-14 shows the layout for the Microtower (MT) chassis used for the HP Compaq dx6100
models. Features include:
■ Externally accessible drive bay assembly.
■ Easy access to expansion slots and all socketed system board components.
NOTE:
[1] Accepts PCI-E graphics or normal layout ADD2 card.

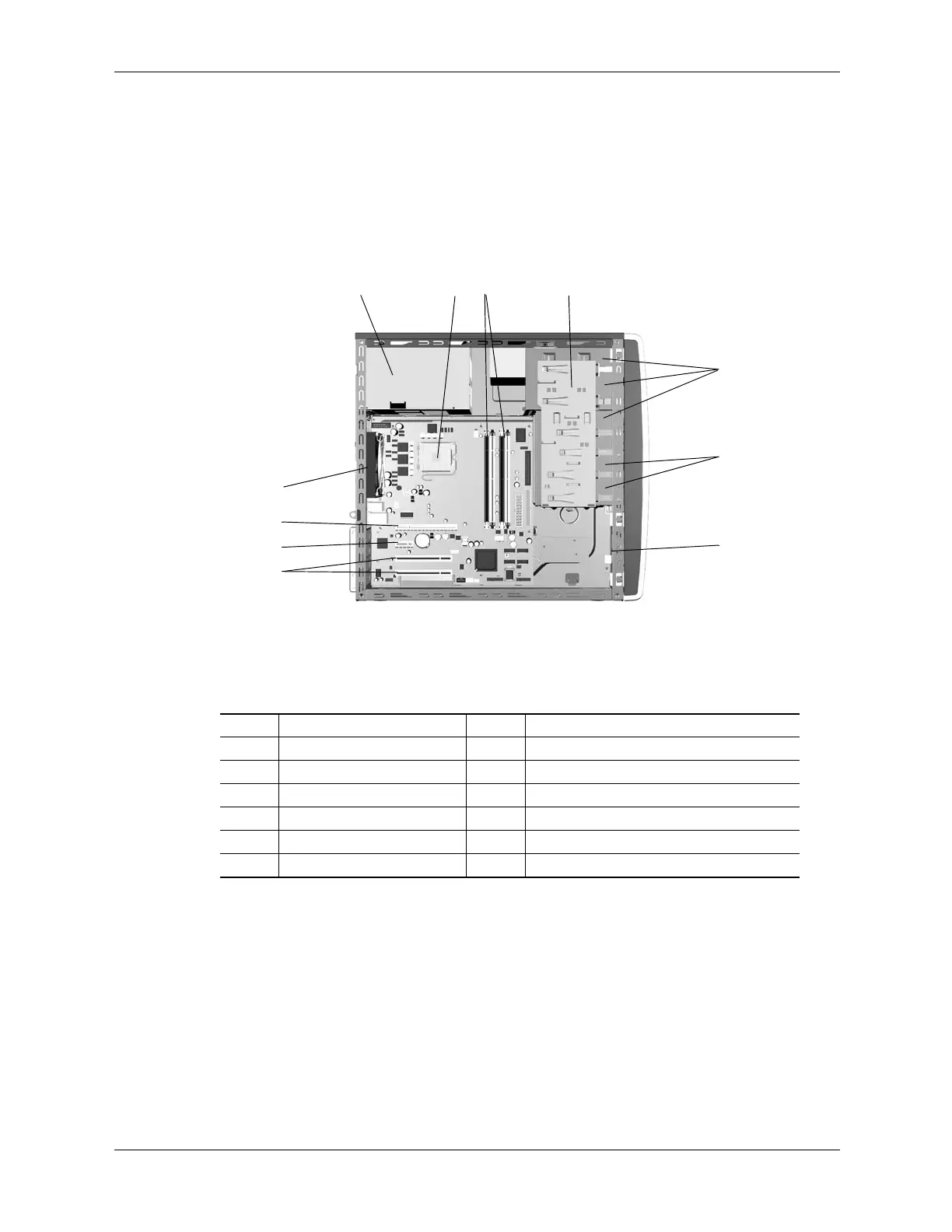

Figure 2-14. MT Chassis Layout, Left Side View
1
3
4
5
6
2
7
-
8
9
q
Item Description Item Description
1 Power supply assembly 7 Speaker
2 Processor socket 8 PCI 2.3 slots
3 DIMM sockets (4) 9 PCI Express x1 slot
4 DriveLock 10 PCI Express x16 graphics/normal layout SDVO slot [1]
5 Externally accessible drive bays 11 Chassis fan
6 Internally accessible drive bays -- --

HP Compaq dc7100 CMT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Storage	40GB to 160GB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 900
Optical Drive	DVD-ROM, CD-RW, DVD+/-RW
Network	Integrated Gigabit Ethernet
Form Factor	Convertible Minitower
Expansion Slots	1 PCI Express x16, 3 PCI
Ports	USB 2.0, serial, parallel, PS/2, audio in/out
