HP Compaq dc7600 User Manual

Small Form Factor
Small Form FactorSmall Form Factor
Small Form Factor

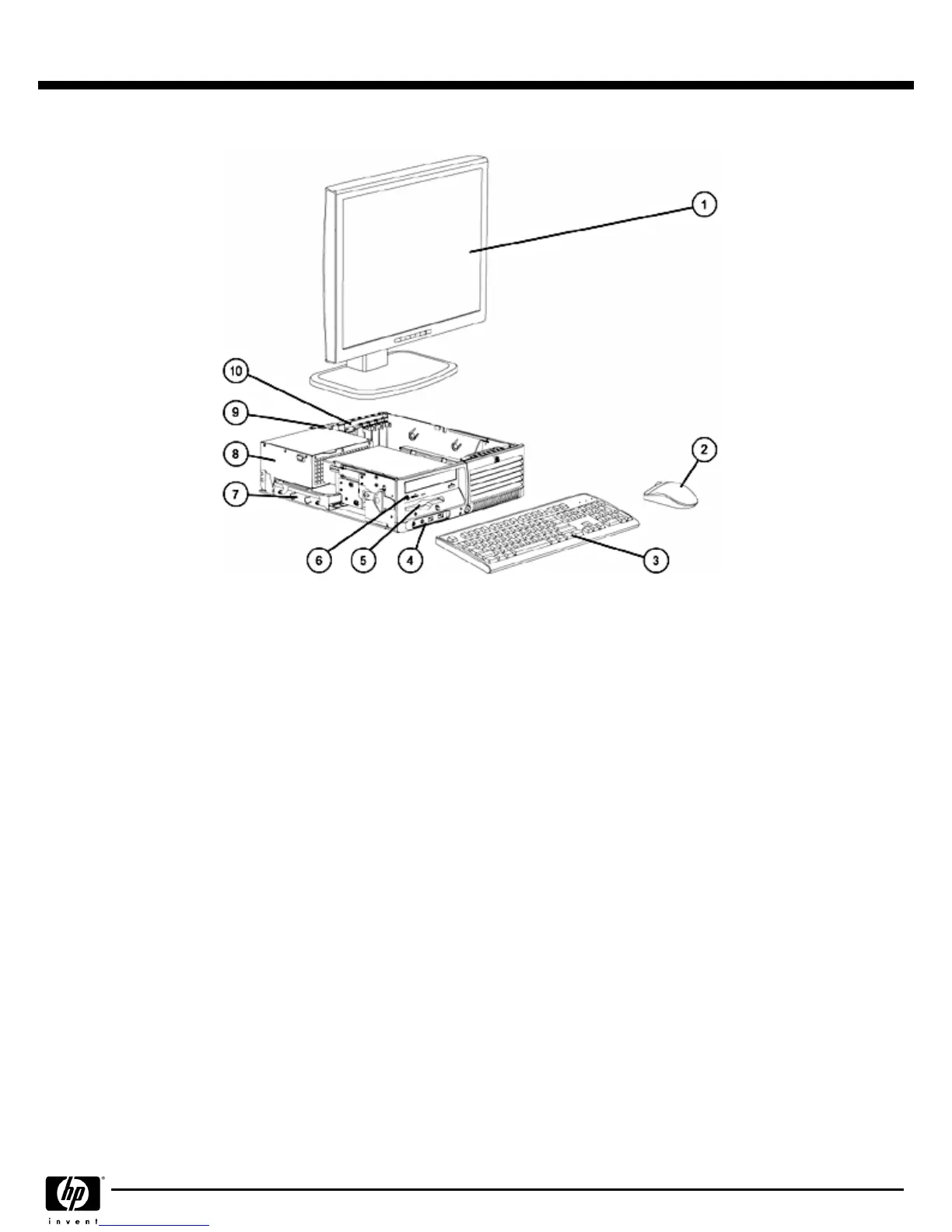

1. Monitor (sold separately) 7. 1 3.5" internal bay
2. 2-Button Scroll Mouse (PS/2 or USB) 8. 240-watt power supply with power harness cable
incorporating 2 SATA, 1 PATA and 1 FDD device power
connectors
3. HP Standard Keyboard (PS/2 or USB) 9. Rear I/O: 6 USB 2.0, 1 standard serial port, 1 optional serial
port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out
4. Front I/O: 2 USB 2.0, headphone and microphone 10. 2 low profile PCI slots, 1 low profile PCI Express x1 slot, 1 low
profile PCI Express x16 slot standard*; 2 full-height PCI slots
optional
5. 1 3.5" external bay for optional diskette drive, HP 16-in-1
Media Card Reader, or other 3.5" device
6. 1 5.25" external bay for optional optical drive, or other 5.25"
device (bay tilts up for device removal and insertion)
* NOTE:
NOTE: NOTE:
NOTE: With riser card option, express x1 and x16 slots are
inaccessible.
QuickSpecs
HP Compaq dc7600 Business PC
HP Compaq dc7600 Business PCHP Compaq dc7600 Business PC
HP Compaq dc7600 Business PC
Overview
DA - 12253 North America — Version 36 — January 30, 2007 Page 2

HP Compaq dc7600 Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Memory Slots	4 DIMM slots
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Processor	Intel Pentium 4, Intel Celeron D, Intel Pentium D
Chipset	Intel 945G Express
Storage	SATA Hard Disk Drive
Graphics	Intel Graphics Media Accelerator 950
Optical Drive	DVD-ROM
Audio	Integrated High Definition Audio
Ports	USB 2.0, serial, parallel, audio in/out
Operating System	Windows XP Professional
Form Factor	Small Form Factor, Convertible Minitower
Processor Speed	Up to 3.8 GHz (Pentium 4) or 2.66 GHz (Core 2 Duo)
