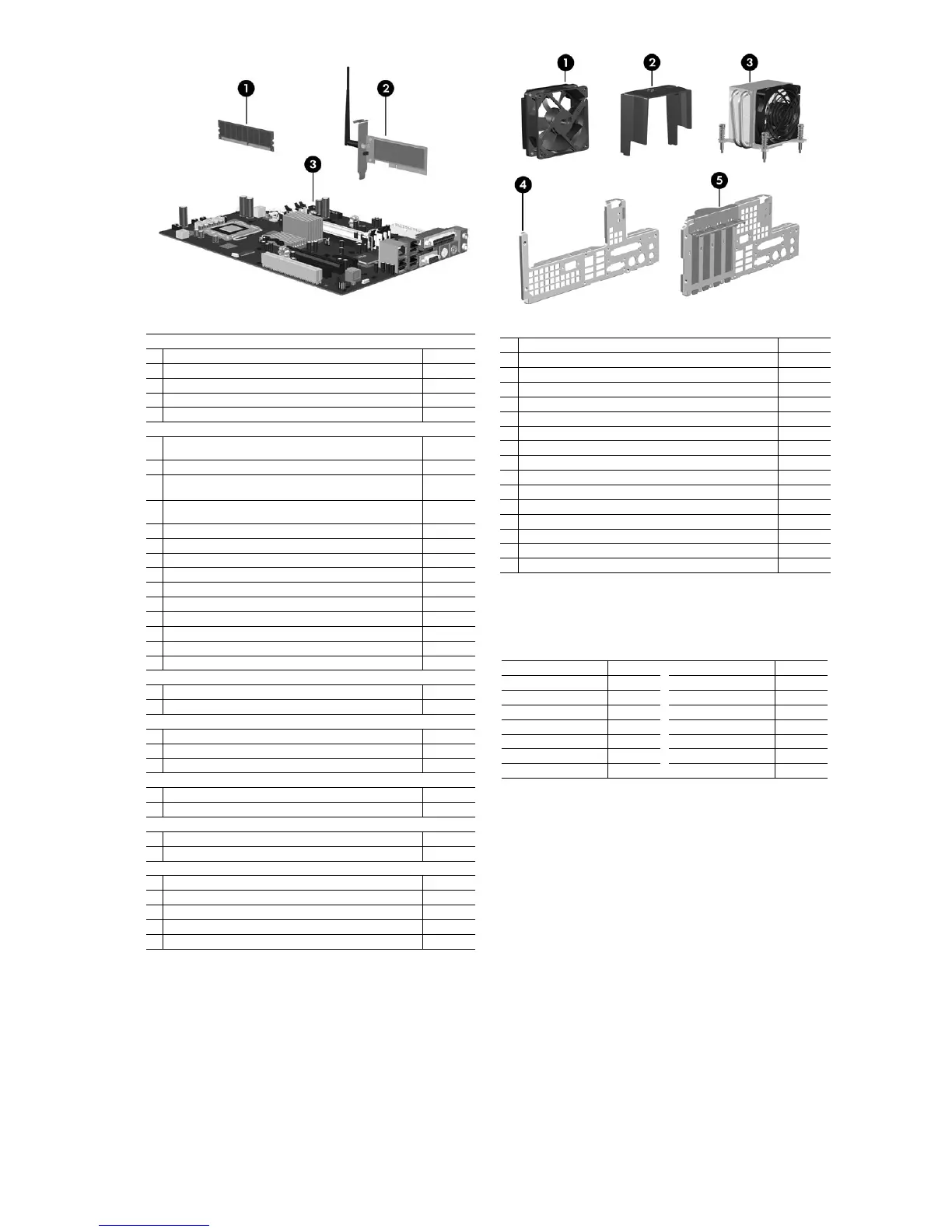

dc7800 Illustrated Parts & Service Map, SFF Chassis 459786-001 page 2
Standard and Optional Boards
Memory modules
1 512 MB, PC2-5300, CL5
396520-001
1 1 GB, PC2-5300, CL5
398038-001
1 2 GB, PC2-5300, CL5
450367-001
1 512 MB, PC2-6400, CL6
418952-001
1 1 GB, PC2-6400, CL6
418951-001
Other boards
2 Belkin 802.11a/g WLAN adapter for use in the United States and most of
the world
391866-002
* Belkin 802.11a/g, WLAN adapter for use in the rest of the world 391866-001
*
nVidia GeForce 8440 GS 256-MB video card with dual-link DVI-I and
TV (S-Video) outputs. LP
445743-001
* nVidia GeForce 8440 GS 256-MB video card with DMS59 and TV (S-
Video) outputs. LP
445744-001
* DVI-D ADD2 graphics 398333-001
* 1394 card 2 external, 1 internal port, FH 393308-001
* 1394 card 2 external, 1 internal port, LP 393307-001
* 802.11a/b/g, WLAN PCI card, international, LP 356296-B35
* HP dual-band wireless antenna PCI Adapter, LP 435269-001
* Intel, Gigabit NIC 398754-001
* Broadcom 5751 NetXtreme Gigabit Ethernet Controller, LP 435268-001
* Broadcom 5751 NetXtreme Gigabit Ethernet Controller, FH 430654-001
* Agere International 56K Modem 398661-001
* ReadyBoost module, 1 GB 455971-001
System Boards with thermal grease, alcohol pad, and CPU socket cover
3 System board 437793-001
* System board, excludes ES/CS 451139-001
Intel Celeron Processors with alcohol pad and thermal grease
* 440, 512K cache, 2.00 GHz 449166-001
* 430, 512-KB cache, 1.8 GHz 449165-001
* 420, 512-KB cache, 1.8 GHz 449164-001
Intel Pentium Dual Core Processors with alcohol pad and thermal grease
* E2180, 1-MB cache, 2.00 GHz 457656-001
* E2160, 1-MB cache, 1.80 GHz 457622-001
Intel Core 2 Quad Processor with alcohol pad and thermal grease
* Q6700, 8-MB cache, 2.66 GHz 455402-001
* Q6600, 8-MB cache, 2.40 GHz 452451-001
Intel Core 2 Duo Processors with alcohol pad and thermal grease
* E6850, 4-MB cache, 3.00 GHz 450792-001
* E6750, 4-MB cache, 2.66 GHz 450791-001
* E6550, 4-MB cache, 2.33 GHz 450694-001
* E4500, 2-MB cache, 2.20 GHz 449452-001
* E4400, 2-MB cache, 2.00 GHz 449451-001
* Not shown
LP = Low profile
FH = Full height
Miscellaneous Parts
1 Chassis fan 451144-001
2 Fan duct 451145-001
3 Fansink with alcohol pad and factory-applied thermal grease 453053-001
4 Backwall, LP, includes riser card assy 440498-001
5 Backwall, FH 451140-001
* Solenoid lock 451149-001
* Heatsink retention plate 453318-001
* Power switch/LED holder 370857-001
* Mouse, PS2, optical 417966-001
* Mouse, scroll 390937-001
* Mouse, optical 390938-001
* Battery, real-time clock 153099-001
* Internal speaker 394779-001
* Second serial port, LP 393601-001
* Second serial port, FH 392414-001
* Modem cable 198220-001
*Not shown
LP = Low profile
FH = Full height
Modem RJ-11 adapters (not illustrated)
Austrian 417561-011 Italian 316904-065
Belgian 316904-181 Netherlands 316920-335
Czechoslovakian 234963-221 Polish 316904-241
French 316904-051 Saudi Arabian 316904-AR1
German 316904-045 Scandinavian 382848-DH1
Greek 316904-151 Swiss 417562-111
Hungarian 234963-215 Turkish 316904-141
Israel 316904-BB1 United Kingdom 158593-035
