Technical Reference Guide www.hp.com 6-7
Integrated Graphics Subsystem
6.5.2 DisplayPort Connector
All systems include a DisplayPort connector (Figure 6-3) for attaching a digital monitor. This
interface also supports the use of an optional adapter for converting the DisplayPort output to a
DVI or analog VGA output.

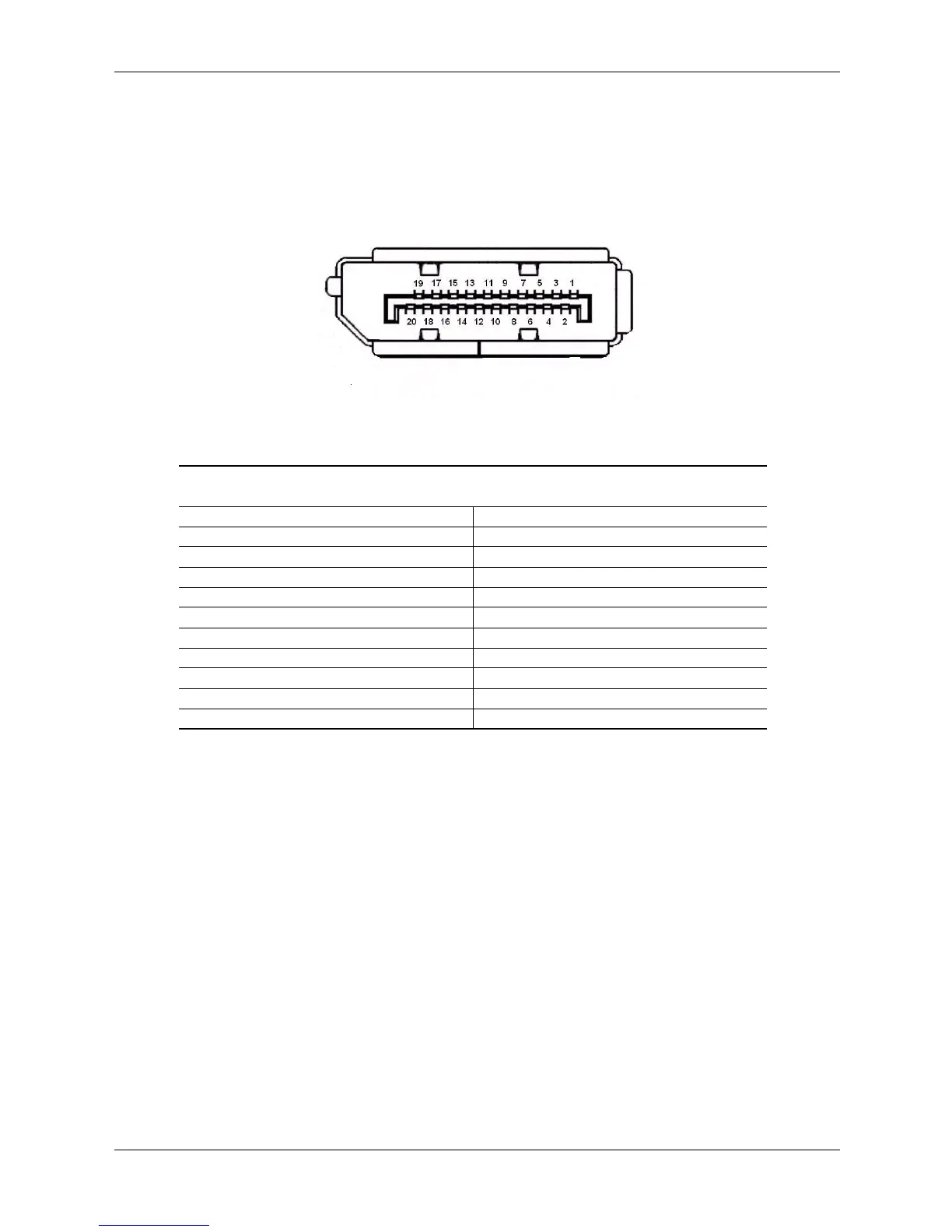

Figure 6-3. DisplayPort Connector, (as viewed from rear of chassis).
Table 6-4.
DB-15 Monitor Connector Pinout
Pin Signal Pin Signal
1 ML Lane (p) 0 11 Ground
2 Ground 12 ML Lane (n) 3
3 ML Lane (n) 0 13 Ground
4 ML Lane (p) 1 14 Ground
5Ground 15AUX Ch (p)
6 ML Lane (n) 1 16 Ground
7 ML Lane (p) 2 17 AUX Ch (n)
8 Ground 18 Hot Plug Detect
9 ML Lane (n) 2 19 DP Power Return
10 ML Lane (p) 3 20 DP Power
