HP Compaq dx2200 - Disassembly Illustrations

HP-00007-01, Appendix 3 22-Mar-2006
HP Restricted
Page 4
3.2 ILLUSTRATIONS

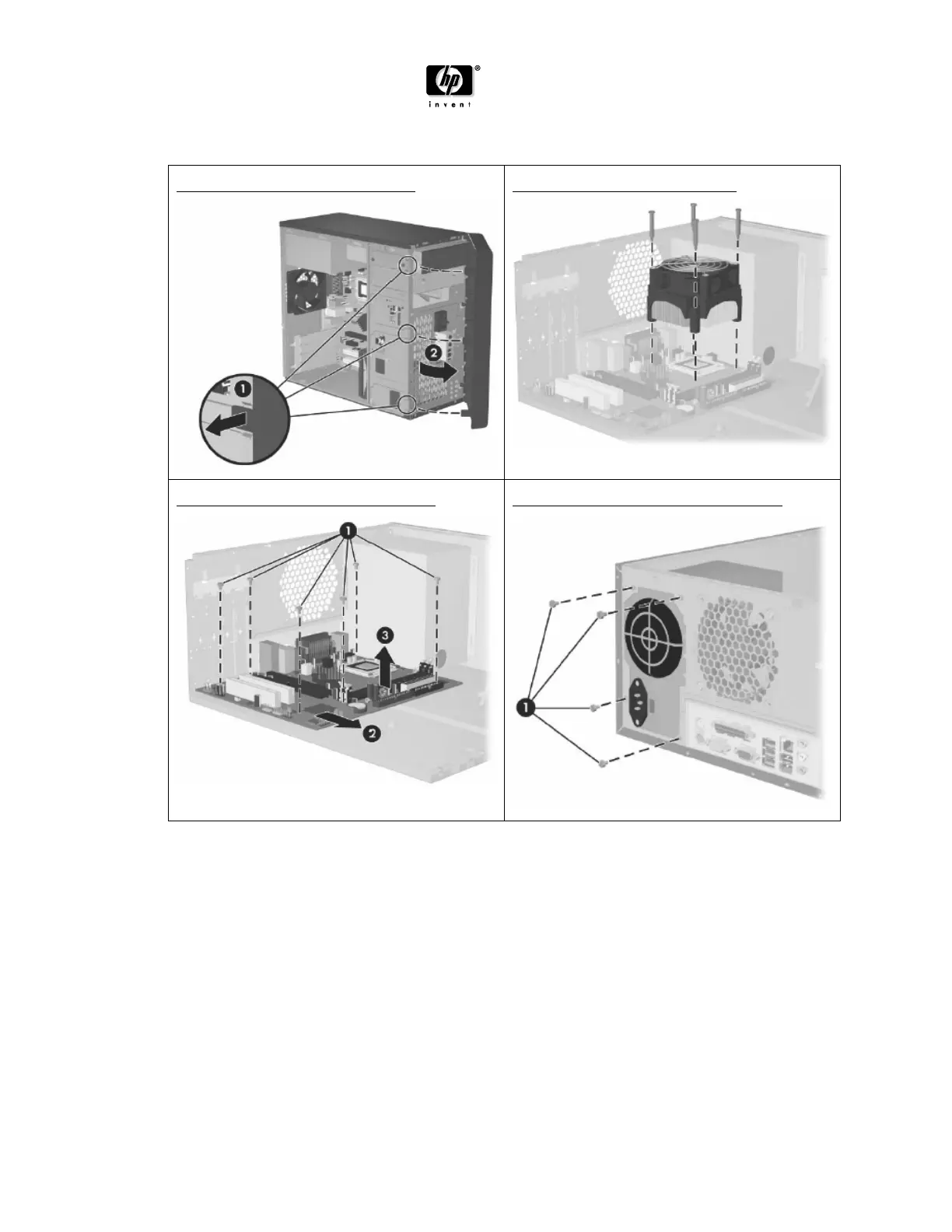

Figure 1: Removing the front bezel
Figure 2: Removing the heatsink
Figure 3: Removing the system board Figure 4: Power supply screw locations
