7. Install two M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the computer cover. The M3
metric guide screws are black.
CAUTION Use only 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
NOTE When replacing the drive, transfer the four M3 metric guide screws from the old
drive to the new one.

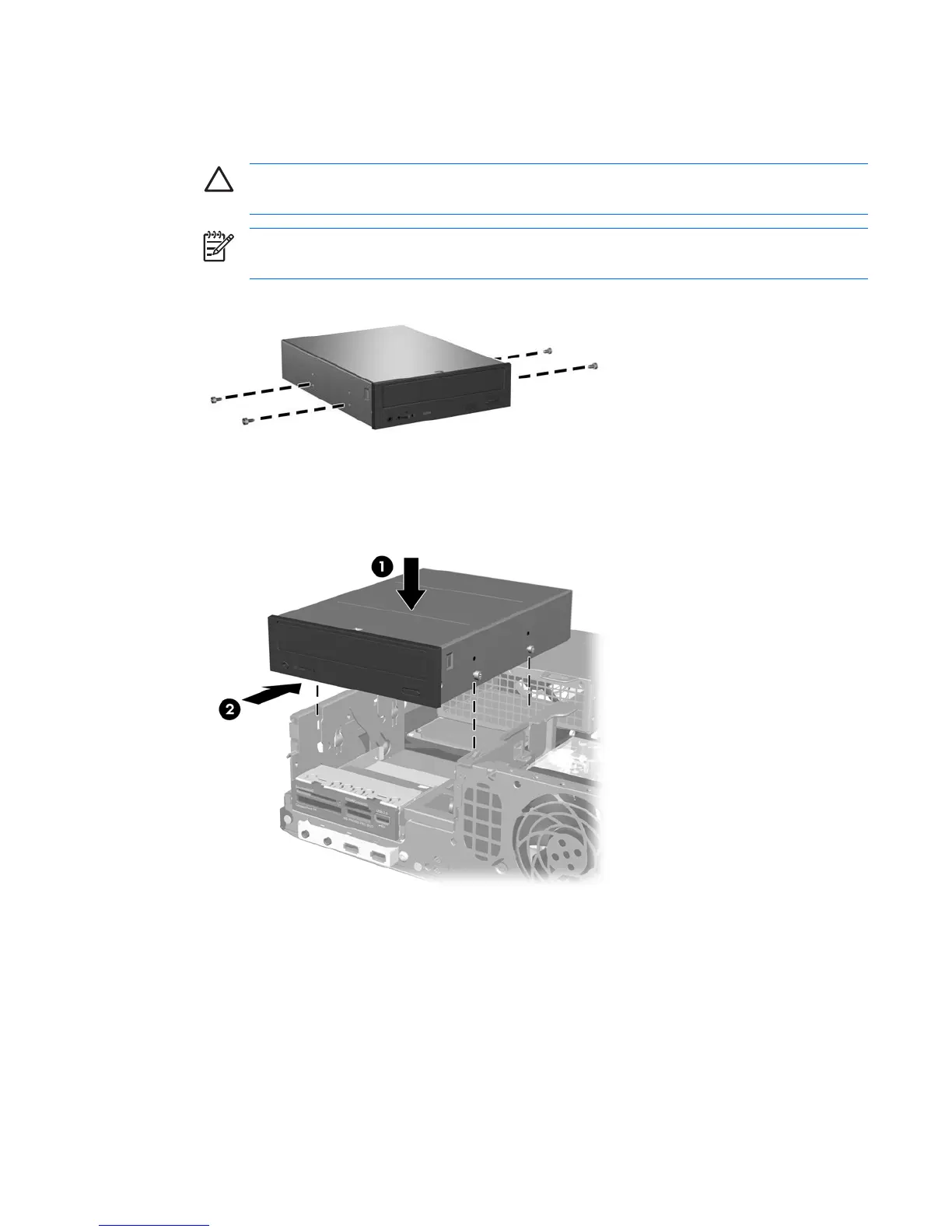

Figure 2-18 Installing Guide Screws in the Optical Drive
8. Position the guide screws on the drive into the J-slots in the drive bay (1). Then slide the drive
toward the rear of the computer (2) until it locks into place.
Figure 2-19 Installing the Optical Drive
ENWW Installing and Removing Drives 29
