9. Rotate the drive cage to its upright position.

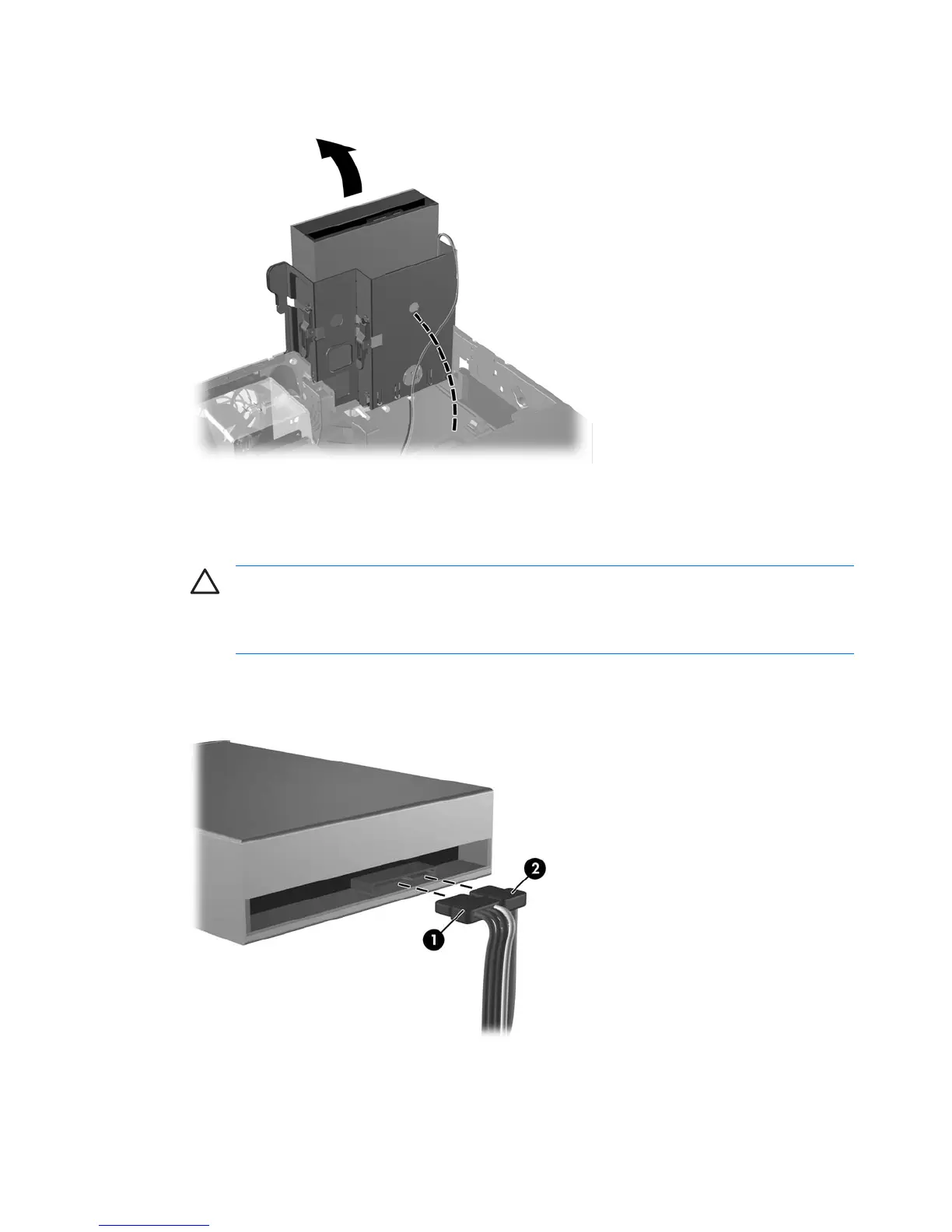

Figure 2-20 Rotating the Drive Cage Up
10. Connect the SATA data cable to the white system board connector labeled SATA1.
11. Route the data cable through the cable guides.
CAUTION There are two cable guides that keep the data cable from being pinched by the
drive cage when raising or lowering it. One is located on the clutch base to the right of the
drive cage. The other is located on the bottom side of the drive cage. Ensure that the data
cable is routed through these guides before connecting it to the optical drive.
12. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 2-21 Connecting the Power and Data Cables
30 Chapter 2 Hardware Upgrades ENWW
