HP Compaq Elite 8200 CMT User Manual

HP Compaq 8200 Elite Small Form Factor Business PC
HP Compaq 8200 Elite Small Form Factor Business PCHP Compaq 8200 Elite Small Form Factor Business PC
HP Compaq 8200 Elite Small Form Factor Business PC

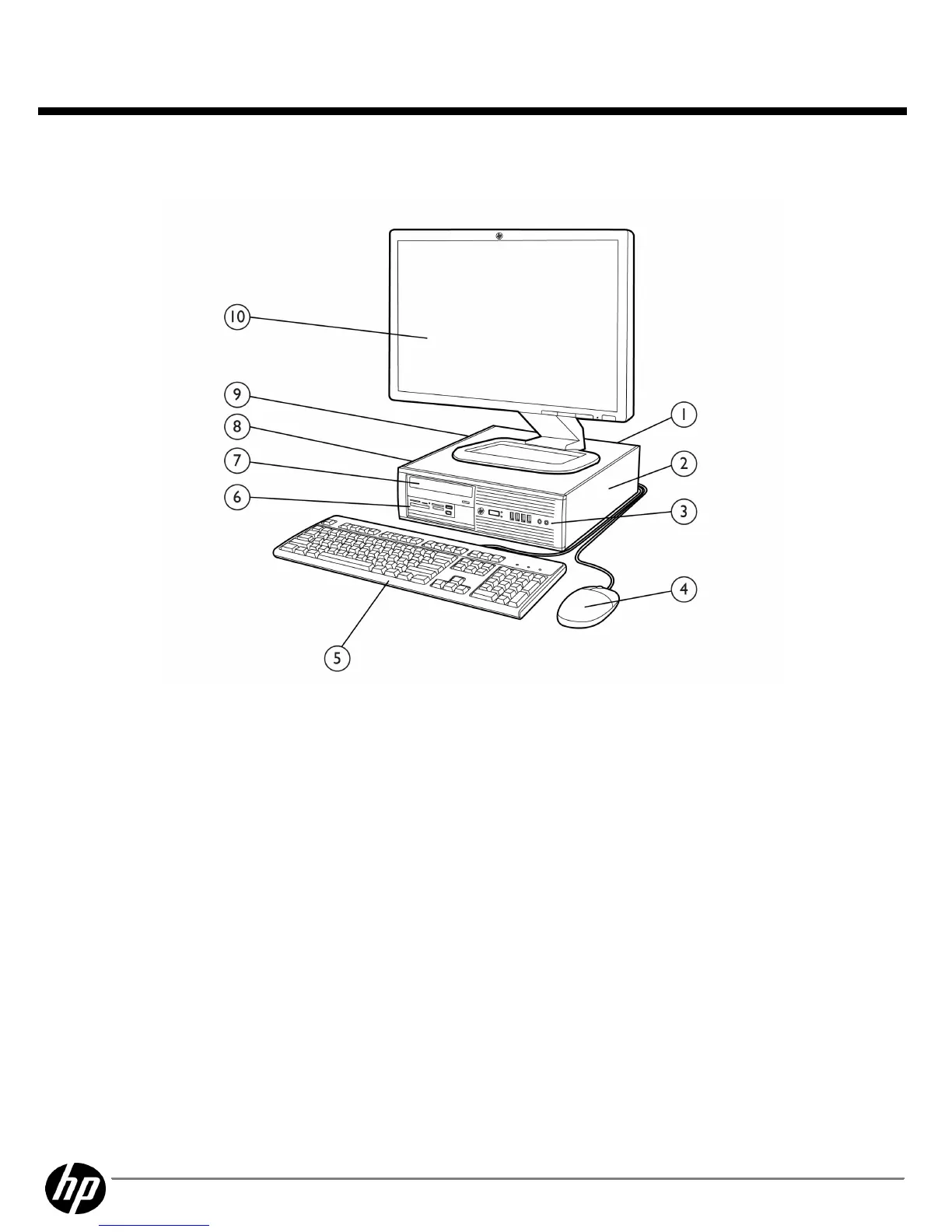

1 Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort
v1.1a and VGA video interfaces, and 3.5mm audio in/out jacks
2 Low profile expansion slots include (1) PCI, (1) PCI Express x1 and (2) PCI Express x16 graphics
3 Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
4 HP Mouse
5 HP Keyboard
6 3.5” external drive bay supporting a media card reader or a secondary hard disk drive
7 5.25” external drive bay supporting an optical disk drive
8 3.5” internal drive bay supporting primary hard disk drive
9 240W standard or 90% high efficiency Power Supply
10 HP Monitor (sold separately)
QuickSpecs
HP Compaq 8200 Elite Series
HP Compaq 8200 Elite SeriesHP Compaq 8200 Elite Series
HP Compaq 8200 Elite Series
Overview
DA - 13879 North America — Version 10 — June 13, 2011 Page 2

HP Compaq Elite 8200 CMT Specifications

General

Processor Speed	Up to 3.4 GHz
Network	Integrated Intel 82579LM Gigabit Network Connection
Processor	Intel Core i7-2600, Intel Core i5-2500, Intel Core i5-2400
Chipset	Intel Q67 Express
Memory	Up to 32 GB DDR3 SDRAM
Storage	SSD options available
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7
Audio	High Definition Audio
Ports	10 USB 2.0, 1 Serial, 1 Parallel, 2 PS/2, 1 VGA, 1 DisplayPort
Expansion Slots	1 PCI Express x16, 1 PCI
Power Supply	320W
Form Factor	Convertible Minitower
Weight	Approximately 22 lbs
