HP Compaq LE1902x User Manual

2. To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing
arm plate and into the mounting holes on the monitor.

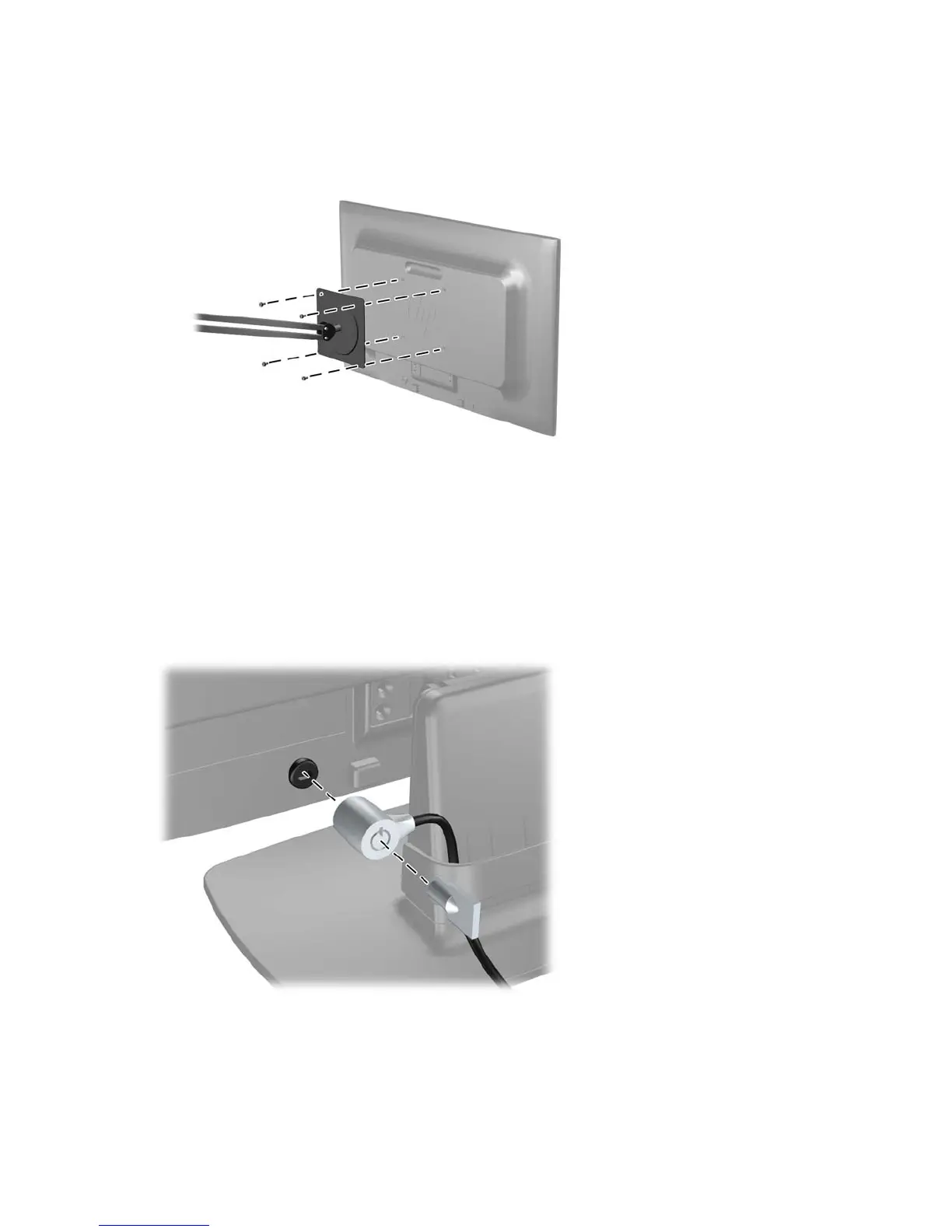

Figure 2-9 Mounting the Monitor
To attach the monitor to other mounting fixtures, follow the instructions included with the
mounting fixture to ensure that the monitor is safely attached.
3. Reconnect the cables to the monitor panel.
Installing a Cable Lock
You can secure the monitor to a fixed object with an optional cable lock available from HP.
Figure 2-10 Installing a Cable Lock
10 Chapter 2 Setting Up the Monitor ENWW

HP Compaq LE1902x Specifications

General

Brand	HP
Model	Compaq LE1902x
Category	Monitor
Language	English
