5–6 Maintenance and Service Guide
Removal and Replacement Procedures

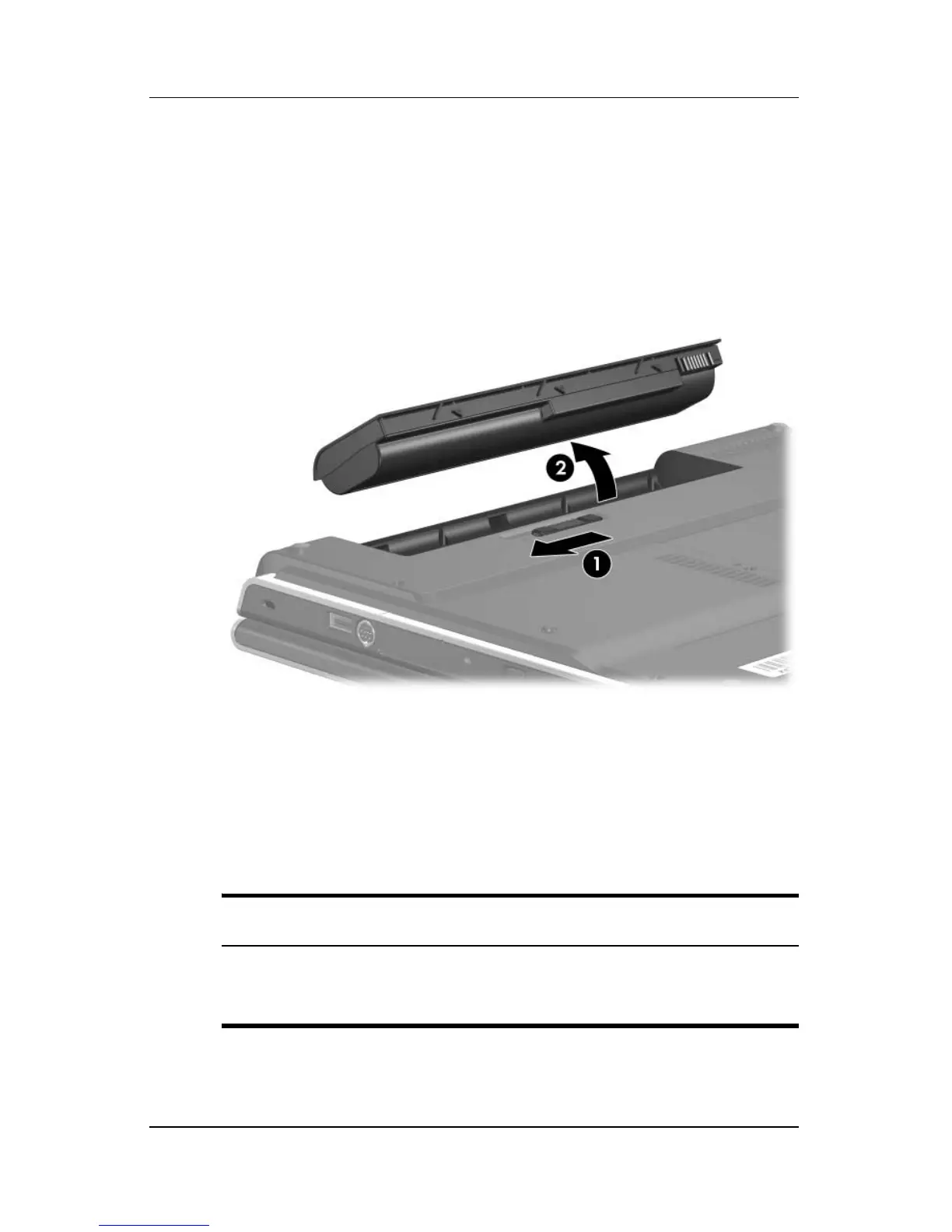

b. Slide and hold the battery release latch 1 to the left.
(The front edge of the battery pack disengages from
the computer.)
c. Lift the front edge of the battery pack 2 up and swing
it back.
d. Remove the battery pack.
Removing the Battery Pack
Reverse the above procedure to install the battery pack.
5.4 Hard Drive
Hard Drive Spare Part Number Information
80-GB (4200-rpm; includes frame and connector)
60-GB (4200-rpm; includes frame and connector)
40-GB (5400-rpm; includes frame and connector)
394268-001
394267-001
394266-001
