HP Compaq Pro 4300 Illustrated Parts & Service Map

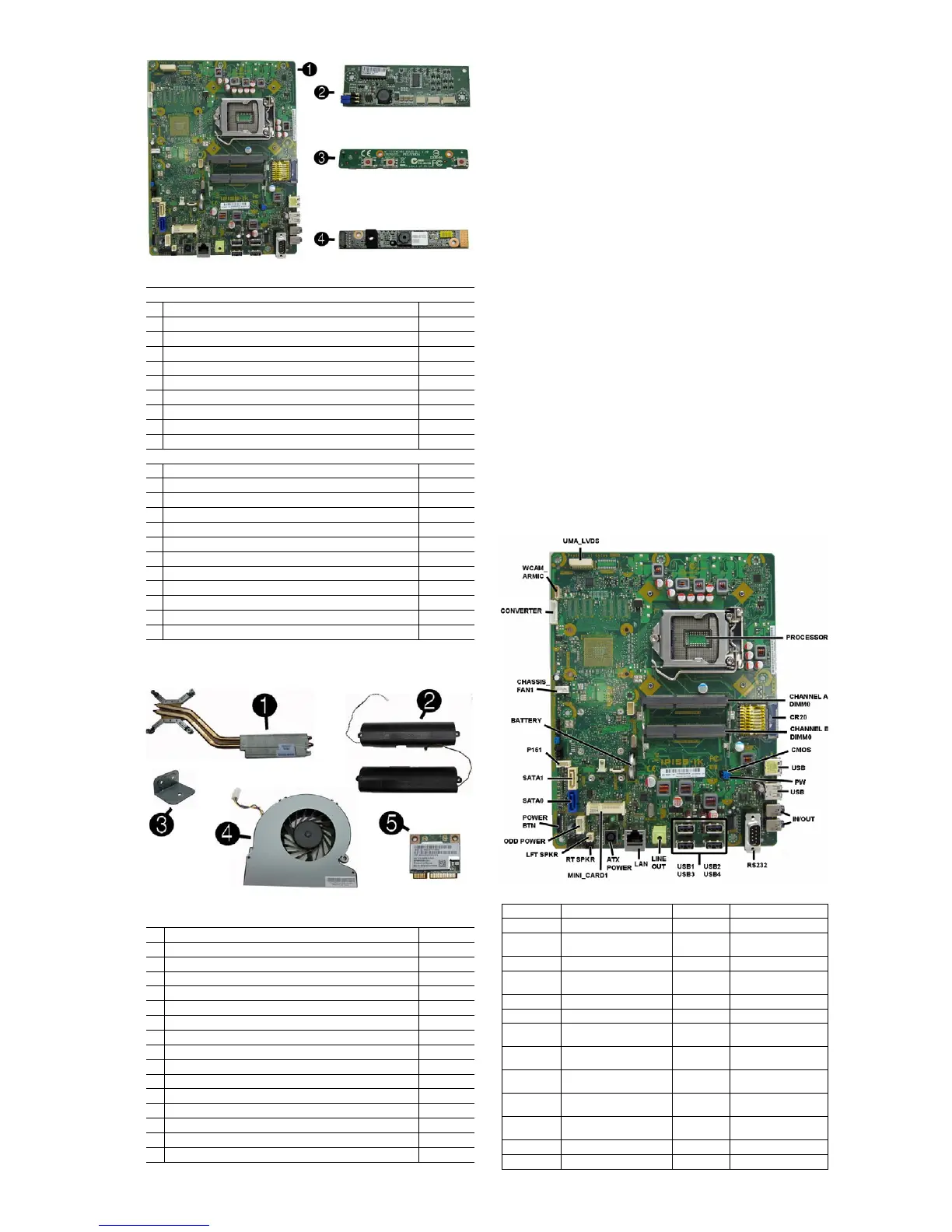

HP Compaq Pro 4300 AIO 700498-003 page 2
Boards
Miscellaneous Parts
Password Security and CMOS
Establishing a Setup or Power-On password
1. Turn on or restart the computer.
2. As soon as the computer turns on, press the Esc key while “Press the ESC key for
Startup Menu” message is displayed at the bottom of the screen.
3. Press the F10 key to enter Computer Setup.
4. To establish Setup password, select Security > Setup Password and follow the
instructions.
- or -
To establish a Power-On password, select Security > Power-On Password and
follow the instructions on the screen
5. Before exiting, click File > Save Changes and Exit.
Resetting a Setup or Power-On password
1. Turn off the computer and disconnect the power cord from the power outlet.
2. Remove the access panel.
3. On the system board, locate the header labeled PW.
4. Remove the jumper from the header.
5. Replace the jumper.
6. Replace the access panel and reconnect the power cord.
7. Turn on the computer and allow it to start.
Resetting CMOS
1. Turn off the computer and disconnect the power cord from the power outlet.
2. Remove the access panel.
3. On the system board, locate the header labeled CMOS.
4. Remove the jumper and place it on pins 1 and 2.
5. Wait for three seconds, and then replace the jumper to its original position (pins 2
and 3).
6. Replace the access panel and reconnect the power cord.
7. Turn on the computer and allow it to start.
System Board
Boards, Memory, Processors
System boards (include replacement thermal material)
1 System board for use in models without Windows 8 693481-001
* System board for use in models with Windows 8 Standard 693481-501
* System board for use in models with Windows 8 Professional 693481-601
* System board for use in models with NetClone 700014-001
2 Converter board 697319-001
3 Sidekey board 663348-001
4 Webcam, 1.3MP with analog microphone 698187-001
* Memory module, 2 GB (PC3-12800, CL11, SODIMM)
689372-001
* Memory module, 4 GB (PC3-12800, CL11, SODIMM)
689373-001
* Memory module, 8 GB (PC3-12800, CL11, SODIMM)
689374-001
Processors (include replacement thermal grease)
* Intel Core i7 3770s processor, 3.1 GHz 689370-001
* Intel Core i5 3570 processor, 3.4 GHz 688162-001
* Intel Core i5 3475s processor, 2.9 GHz 695078-001
* Intel Core i5 3470s processor, 2.9 GHz 695077-001
* Intel Core i3 2130 processor, 3.4 GHz 665120-001
* Intel Core i3 2120 processor, 3.3 GHz 638629-001
* Intel Pentium Dual-Core G870 processor, 3.1 GHz 691936-001
* Intel Pentium Dual-Core G860 processor, 3.0 GHz 665123-001
* Intel Pentium Dual-Core G640 processor, 2.8 GHz 691935-001
* Intel Celeron G550 processor, 2.6 GHz 691934-001
* Intel Celeron G540 processor, 2.5 GHz 665119-001
* Intel Celeron G460 processor, 1.8 GHz 682410-001
* Not shown
Miscellaneous Parts
1
Heat sink/thermal module (includes replacement thermal material) 697315-001
2 Speaker, right 697330-001
2 Speaker, left 697331-001
3 Optical drive bracket 651600-001
4 CPU blower/fan 697320-001
5 802.11a/b/g/n WLAN PCIe card 652165-001
* Grommet, rubber, hard drive 663357-001
* Optical drive insert (for models without an optical drive) 697339-001
* Web cam cover (for models without a webcam) 697340-001
* Bluetooth 4.0 and 802.11a/b/g/n WLAN combo card 697316-001
* HP keyed cable lock 626729-002
* HP Business Digital Headset 642738-001
* Mouse, laser, USB 674318-001
* Mouse, wireless 674317-001
* Mouse, optical, USB 673416-001
* Mouse, washable 619580-001
*Not shown
System Board Connectors and Jumpers
UMA_LVDS Display panel connector
MINI_CARD1 PCIe X1 slot (WLAN)
PROCESSOR Processor socket RT SPKR Right speaker connector
CHANNEL A
DIMM0
Memory socket - Ch A LFT SPKR Left speaker connector
CR20 External 6-in-1 card reader
ODD POWER Optical drive power
CHANNEL B
DIMM0
Memory socket - Ch B
POWER BTN Power switch/LED
CMOS CMOS header SATA0 Hard drive data
USB
External USB connectors (2) SATA1 Optical drive data
PW Password header HDD
POWER
Hard drive power
IN/OUT Headphone out/micro-
phone in connectors
BATTERY RTC battery slot
RS232 External display connector CHASSIS_
FAN1
Fan connector
USB1-USB4 Internal USB connectors
CONVERTER Converter power con-
nector
LINE OUT External audio connector WCAM_
ARMIC
Camera/microphone
connector
LAN Network connector CHFAN Main fan connector
ATX PWR External power connector

HP Compaq Pro 4300 Specifications

General

Full HD	No
Panel type	TN
LED backlight	Yes
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Tcase	65.3 °C
Bus type	DMI
Processor cache	3 MB
Processor cores	2
Processor model	i3-3240
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Desktop Series
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8
Thermal Design Power (TDP)	55 W
CPU multiplier (bus/core ratio)	34
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Product type	All-in-One PC
Motherboard chipset	Intel® H61
Internal memory	4 GB
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Total storage capacity	500 GB
Compatible memory cards	SD
Autonomy mode	-
Storage drive interface	Serial ATA
On-board graphics card ID	0x152
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 2500
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
RMS rated power	4 W
Wi-Fi standards	Not supported
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Headphone outputs	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Bundled software	Adobe Flash Player\\r HP Marketplace\\r Bing\\r Microsoft Internet Explorer\\r PDF Complete Corporate Edition\\r WinZip Basic\\r Yahoo\\r Compre Office
Recovery operating system	Windows 8 Pro
Operating system installed	Windows 7 Professional
Processor ARK ID	65690
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal solution specification	PCG 2011C
Intel Secure Key Technology version	0.00
Intel Identity Protection Technology version	1.00
Product color	Black
Country of origin	China
Total megapixels	1.3 MP
AC adapter power	150 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	220 mm
Width (with stand)	507 mm
Height (with stand)	406 mm
Weight (with stand)	5730 g
