Getting Started
Startup Guide 1–3
Identifying the Docking Station

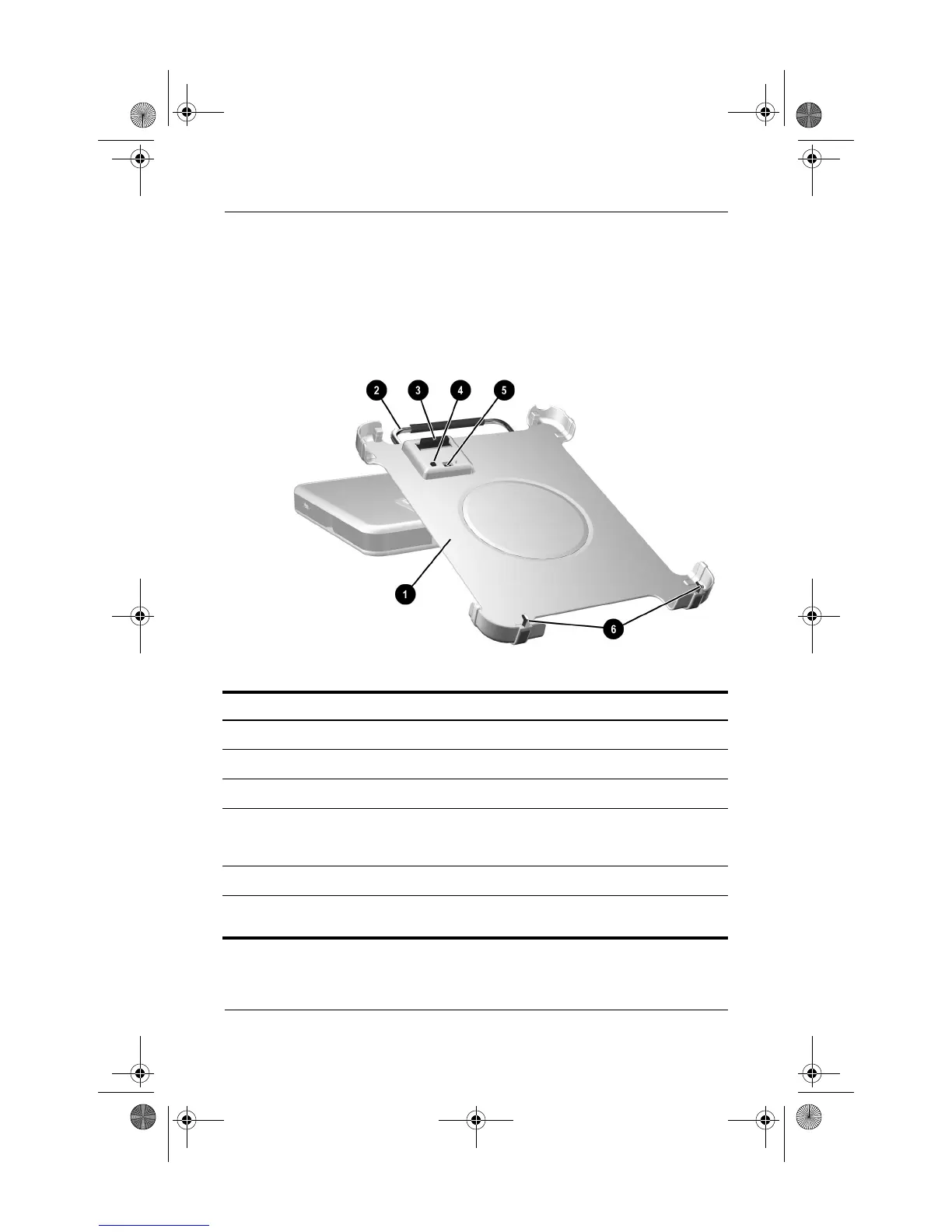

Components
Front View
Component Description
1
Docking stand Holds the tablet PC when it is docked.
2
Release handle Ejects the tablet PC from the docking stand.
3
Docking connector Connects to the tablet PC.
4
Docking eject pin Disconnects the tablet PC from the docking
stand docking connectors when the release
handle is pulled.
5
Docking restraint latch Secures the tablet PC to the docking stand.
6
Docking alignment
brackets (2)
Fit into the tablet PC docking alignment slots
to align the tablet PC in the docking stand.
