6–34 Maintenance and Service Guide
Removal and Replacement Procedures
✎
Make note of which antenna cable is attached to which antenna
clip on the Mini PCI communications card before
disconnecting the cables.
4. Disconnect the auxiliary and main antenna cables 1 from the
Mini PCI communications card.
5. Spread the two retaining tabs 2 on each side of the Mini PCI
socket to release the Mini PCI communications card. (The
edge of the card opposite the socket rises away from the
tablet PC.)
6. Remove the Mini PCI communications card by pulling the
card away from the socket at a 45-degree angle 3.
✎
The Mini PCI communications card is slotted 4 to prevent
incorrect installation.

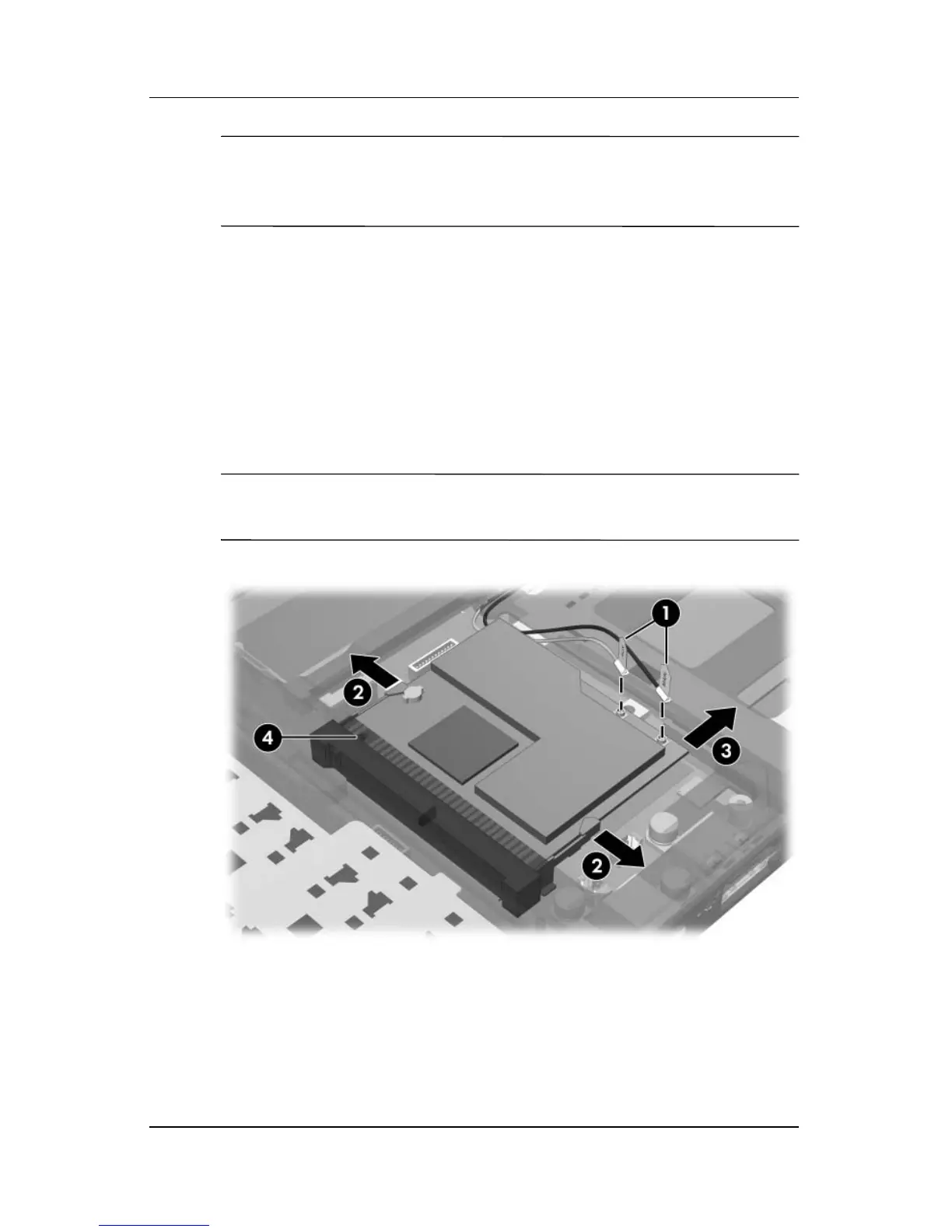

Removing a Mini PCI Communications Card
Reverse the above procedure to install a Mini PCI
communications card.
