Maintenance and S
ervi
ce Guide
6–4
7
7.

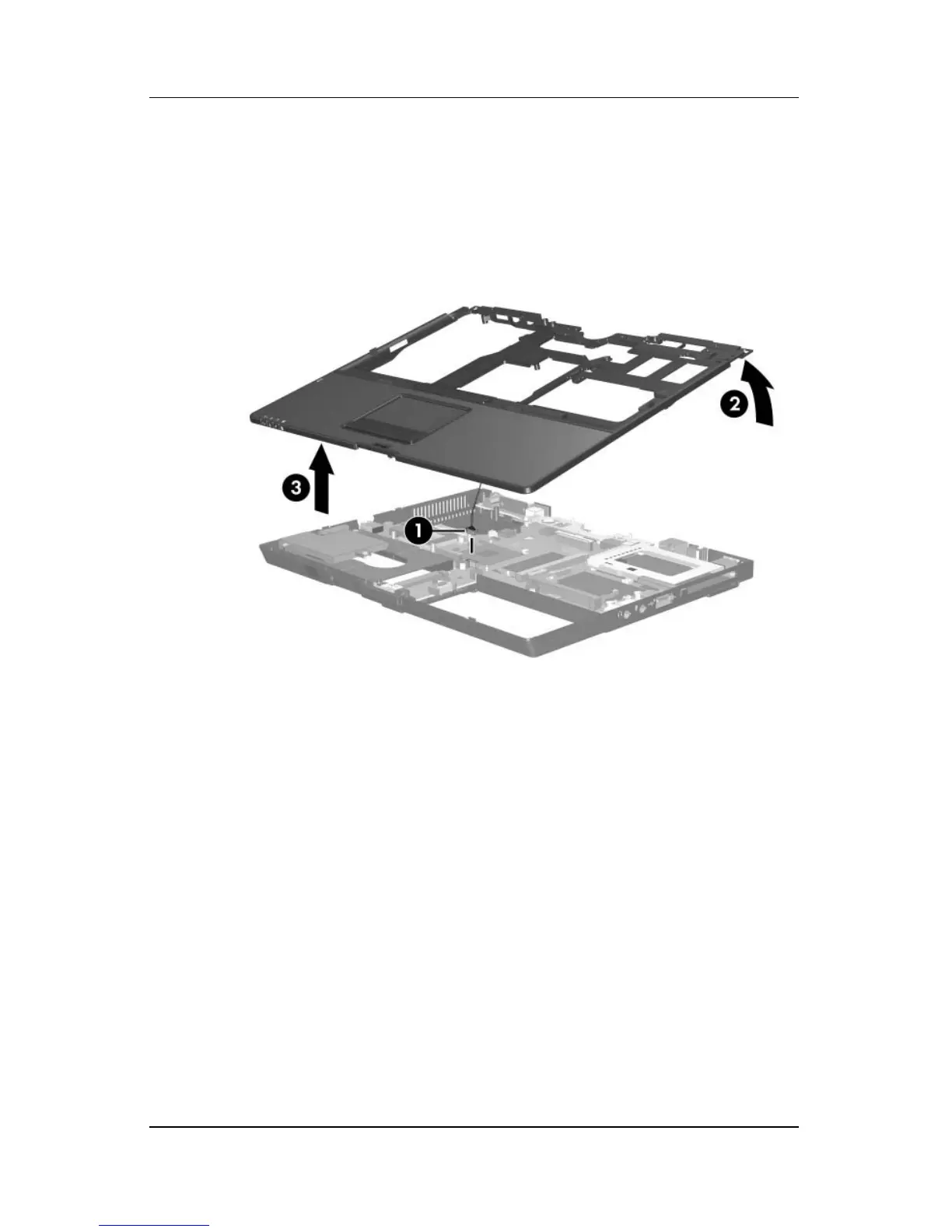

Disconnect the T
ouchPad cable from the system board
1
.
8.
Lift the rear edge of the top cov
er
2
until it disengages from
the base enclosure.
9.
Lift the top cov
er straight up
3
and remove it.
R
emo
ving the T
op Co
ve
r
Re
verse the abov
e procedure to install the top cov
er
.
134
136
