HP Compaq tc4200

6–62 Maintenance and Service Guide
Removal and Replacement Procedures
2. Turn the system board upside down with the left side
toward you.
3. Remove the RTC battery from the system board socket.

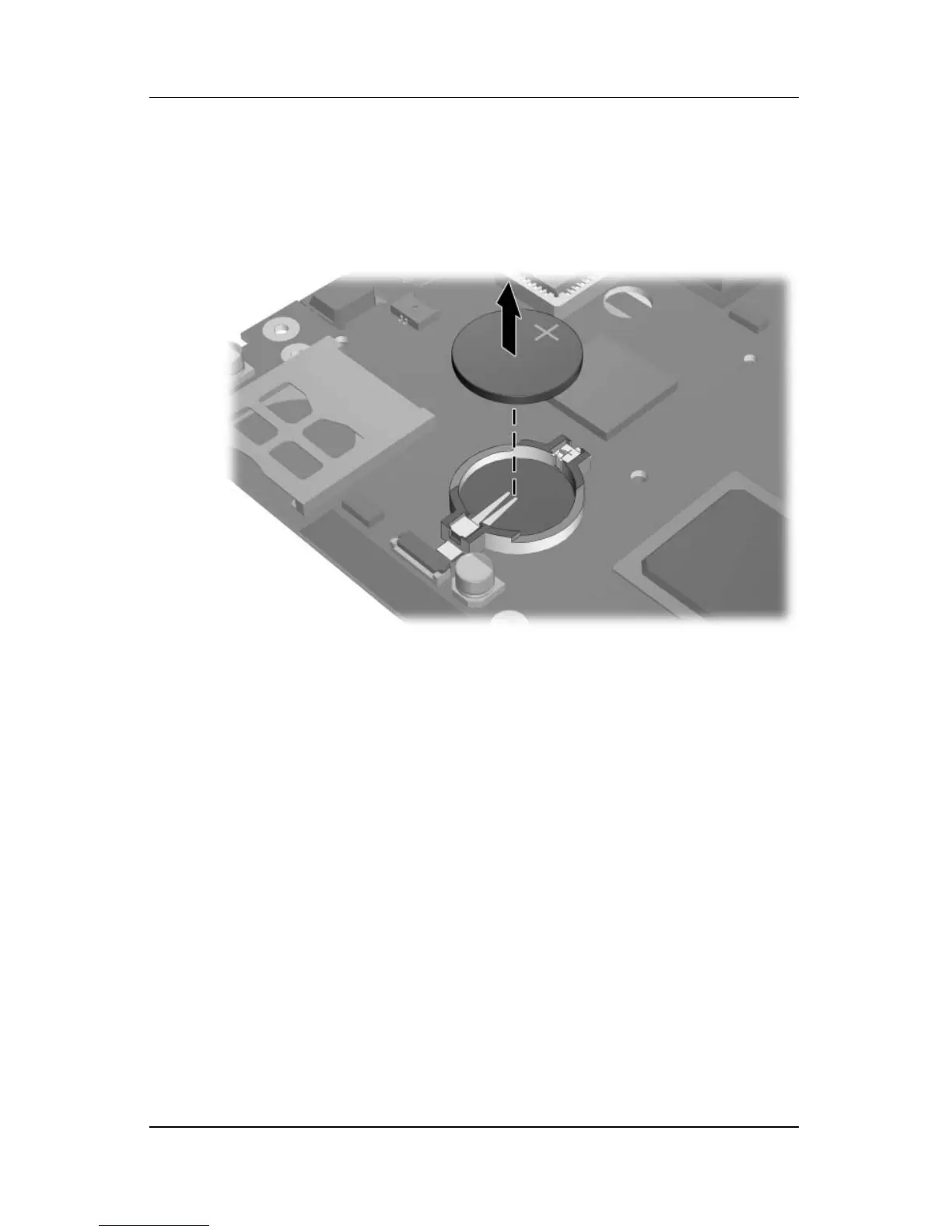

Removing the RTC Battery
Reverse the above procedure to install the RTC battery.
