2-26 www.hp.com Hardware Reference Guide
Hardware Upgrades
The 3.5-inch bay is located underneath the optical drive. To install a
drive into the 3.5-inch bay:
✎
Install guide screws to ensure the drive will line up correctly in the
drive cage and lock in place. HP has provided extra guide screws
(four 6-32 standard screws and four M3 metric screws), installed in
the front of the chassis, under the computer cover. The hard drive uses
6-32 standard screws. All other drives use M3 metric screws. The
HP-supplied M3 metric screws are black and the HP-supplied 6-32
standard screws are silver.
1. Follow the procedure described in the “Removing an Optical
Drive” section to remove the optical drive and access the 3.5-inch
drive bay.
2. Position the guide screws on the drive into the J-slots in the drive
bay 1. Then, slide the drive toward the rear of the computer 2 to
secure the drive in the J slots.

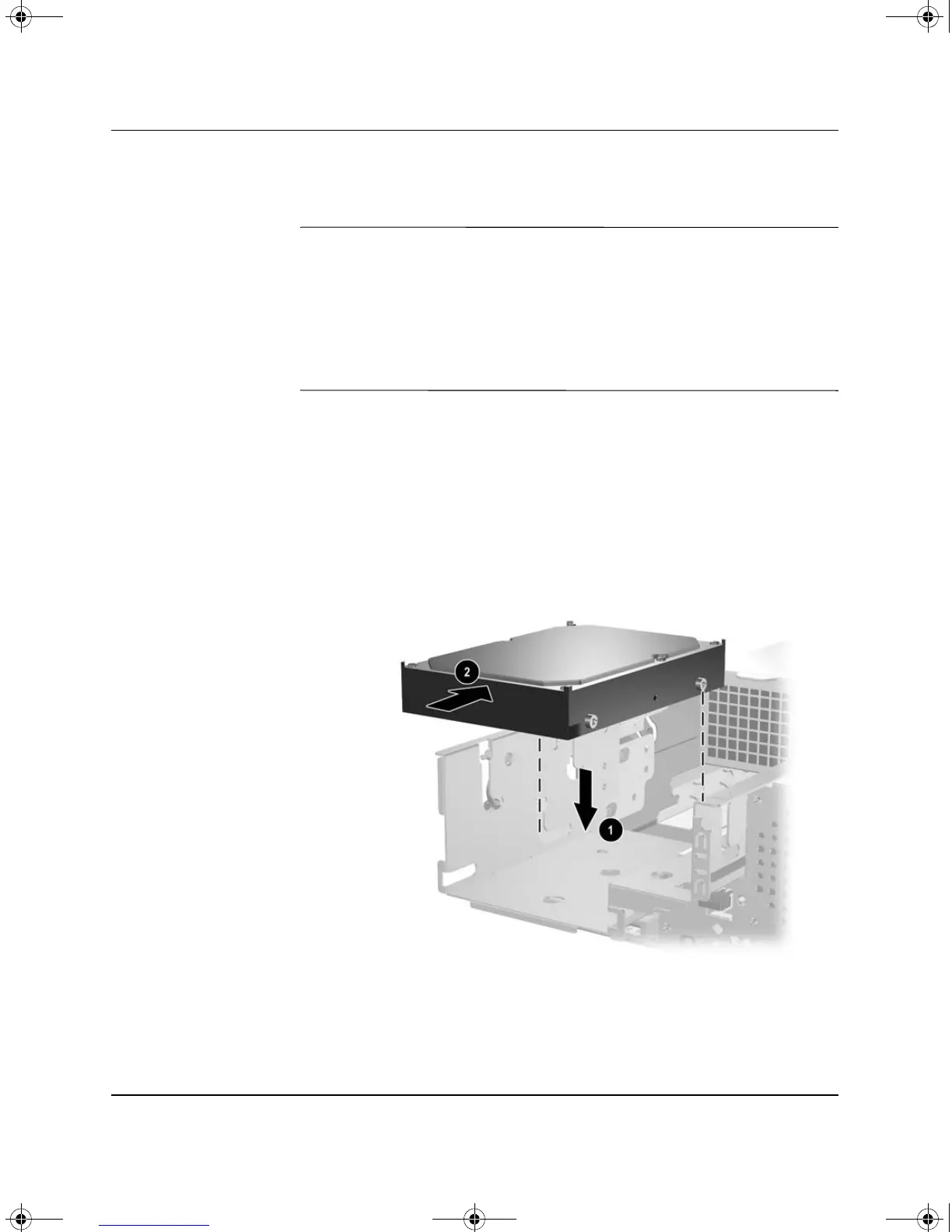

Installing a Drive into the 3.5-inch Drive Bay (Hard Drive shown)
3. Slide the drive cage back into the chassis until it locks into place.
376293-002.book Page 26 Friday, February 18, 2005 3:02 PM

HP DC5100 Specifications

General

Processor	Intel Pentium 4 or Intel Celeron D
Memory	Up to 4 GB DDR2 SDRAM
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Chipset	Intel 915G Express
Graphics	Intel Graphics Media Accelerator 900
Optical Drive	DVD-ROM, CD-RW/DVD-ROM Combo, or DVD+/-RW
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Audio	Integrated AC'97 audio
Expansion Slots	2 PCI, 1 PCI Express x1, 1 PCI Express x16
Form Factor	Microtower
Processor Speed	Up to 3.8 GHz
Storage	40 GB to 250 GB HDD
