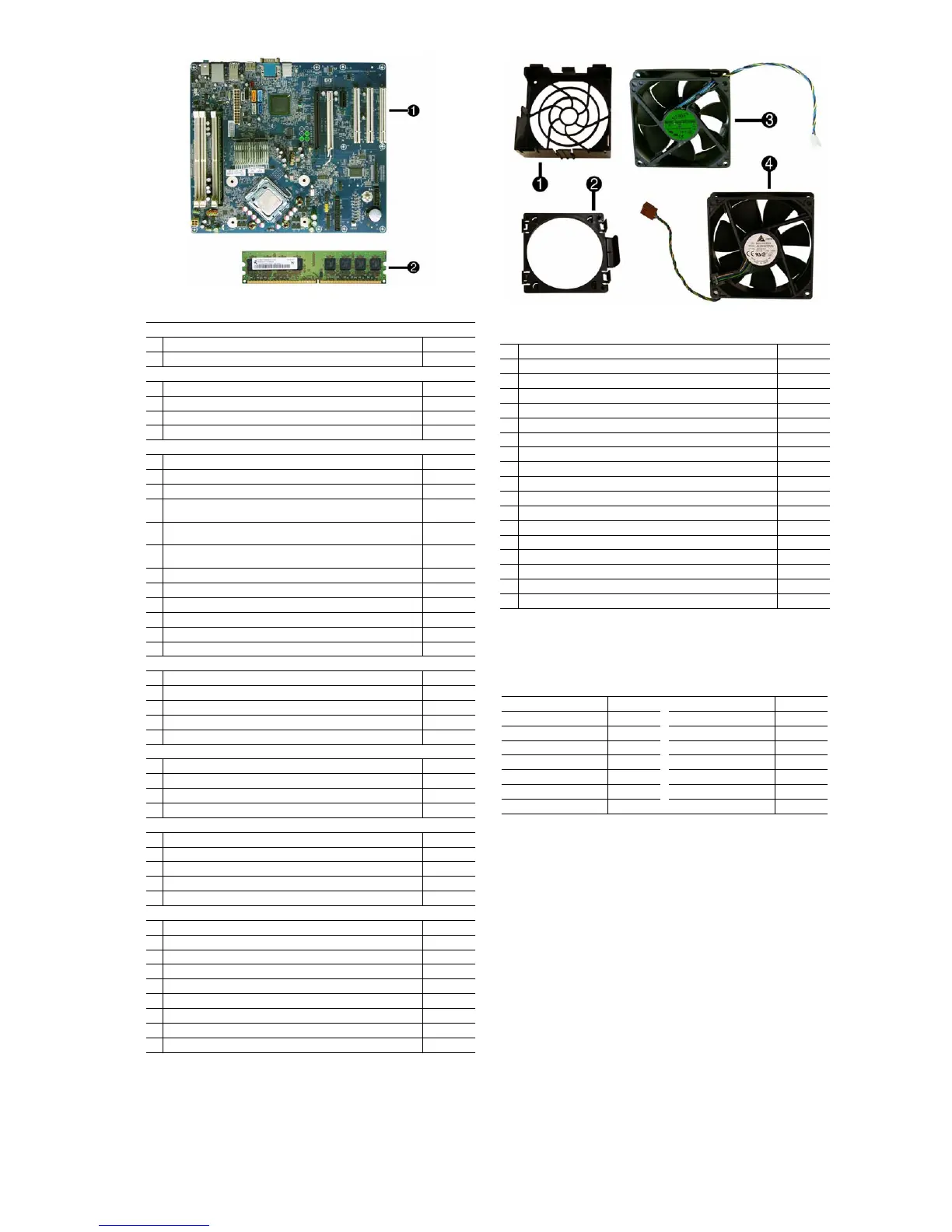

dc7900 Illustrated Parts & Service Map, CMT Chassis 506593-002 page 2
Standard and Optional Boards
System boards with thermal grease, alcohol pad, and CPU socket cover
1 System board 462431-001
1 System board, excludes ES/CS 490629-001
Memory modules (PC2-6400, CL6)
2 512 MB
418952-001
21 GB
418951-001
22 GB
457624-001
24 GB
497735-001
Other boards
* Saffron WLAN 802.11a/b/g for use world-wide, includes bracket 498307-001
* Modem, PCIe, 56K, Agere International 56K, includes bracket 490689-001
* Modem, PCI, 56K, Agere International 398661-001
* ATI HD2400 (RV610) 256-MB graphics card, one DMS559 connector
and one S-Video connector, low profile with ATX bracket
462477-001
* ATI HD3650 (RV635) 512-MB graphics card, two DP 1.1a connectors,
one dual-link DVI connector, includes bracket
481421-001
* ATI HD3470 (RV620) 256-MB graphics card, one DP 1.1a connector, one
dual-link DVI connector, includes bracket
483951-001
* Quadro NVS295 256-MB PCIe graphics card 519298-001
* HP nVidia Quadro NVS 290 256-MB graphics card, includes bracket 456137-001
* Broadcom NetXtreme Gbit Ethernet Plus NIC 488293-001
* NIC, GB, Intel PRO/1000, PCIe, full-height 398754-001
* Intel Gigabit NIC, includes bracket 490367-001
* 1394 card 2 external, 1 internal port 441448-001
Intel Celeron Processors with alcohol pad and thermal grease
* 450, 2.2 GHz, 512-KB cache, single core 508256-001
* 440, 2.0 GHz, 512-KB cache, single core 449166-001
* E1500, 2.2 GHz, 512-MB cache, dual core 516899-001
* E1400, 2.0 GHz, 512-MB cache, dual core 491574-001
* E1200, 1.6 GHz, 512-MB cache, dual core 468589-001
Intel Pentium Dual Core Processors with alcohol pad and thermal grease
* E5400, 2.7 GHz, 2-MB L2 cache 531989-001
* E5200, 2.5 GHz, 2-MB L2 cache 503382-001
* E2220, 2.4 GHz, 1-MB L2 cache 480714-001
* E2200, 2.2 GHz, 1-MB L2 cache 465216-001
Intel Core 2 Quad Processors with alcohol pad and thermal grease
* Q9650, 3.00 GHz, 12-MB L2 cache 497734-001
* Q9550, 2.83 GHz, 12-MB L2 cache 465758-001
* Q9400, 2.66 GHz, 6-MB L2 cache 497733-001
* Q8300, 2.50 GHz, 4-MB L2 cache 516901-001
* Q8200, 2.33 GHz, 4-MB L2 cache 503381-001
Intel Core 2 Duo Processors with alcohol pad and thermal grease
* E8600, 3.33 GHz, 6-MB L2 cache 497732-001
* E8500, 3.16 GHz, 6-MB L2 cache 466170-001
* E8400, 3.00 GHz, 6-MB L2 cache 509554-001
* E8300, 2.83 GHz, 6-MB L2 cache 466168-001
* E7500, 2.93 GHz, 3-MB L2 cache 531988-001
* E7400, 2.80 GHz, 3-MB L2 cache 508255-001
* E7300, 2.66 GHz, 3-MB L2 cache 500134-001
* E7200, 2.53 GHz, 3-MB L2 cache 490507-001
* E5300, 2.60 GHz, 2-MB L2 cache 516900-001
* Not shown
Miscellaneous Parts
1 Fan holder, system fan 450710-001
2 Fan holder, CPU 450709-001
3 Chassis fan 450711-001
4 Fan, heatsink 455310-001
* Heatsink with alcohol pad and factory-applied thermal grease 490812-001
* Fan duct 450707-001
* Internal speaker 430129-001
* Hood sensor 392417-001
* Grommet, hard drive isolation 450712-001
* Solenoid lock 392416-001
* Mouse, PS2, optical 417966-001
* Mouse, optical 390938-001
* Mouse, laser 459821-001
* Printer port 497727-001
* 2nd serial port 392414-001
* Modem cable 198220-001
* Hard drive, removable carrier 444873-001
* Hard drive, removable frame 444872-001
*Not shown
LP = Low profile
FH = Full height
Modem RJ-11 adapters (not illustrated)
Austrian 417561-011 Italian 316904-065
Belgian 316904-181 Netherlands 316920-335
Czechoslovakian 234963-221 Polish 316904-241
French 316904-051 Saudi Arabian 316904-AR1
German 316904-045 Scandinavian 382848-DH1
Greek 316904-151 Swiss 417562-111
Hungarian 234963-215 Turkish 316904-141
Israel 316904-BB1 United Kingdom 158593-035
