HP DesignJet Series - Electronics Module Removal

7-18
Removal and Installation
HP Designjet Ultra Low End Printer Service Manual
Electronics Module
Removal
Switch off the product and remove the power cable.
1. Remove the Center Cover
⇒ Page 7-7 .
2. Remove the Right End Cover
⇒ Page 7-9.
Following step not applicable to
Designjet 10ps, 20ps, 30, 30n,
50ps

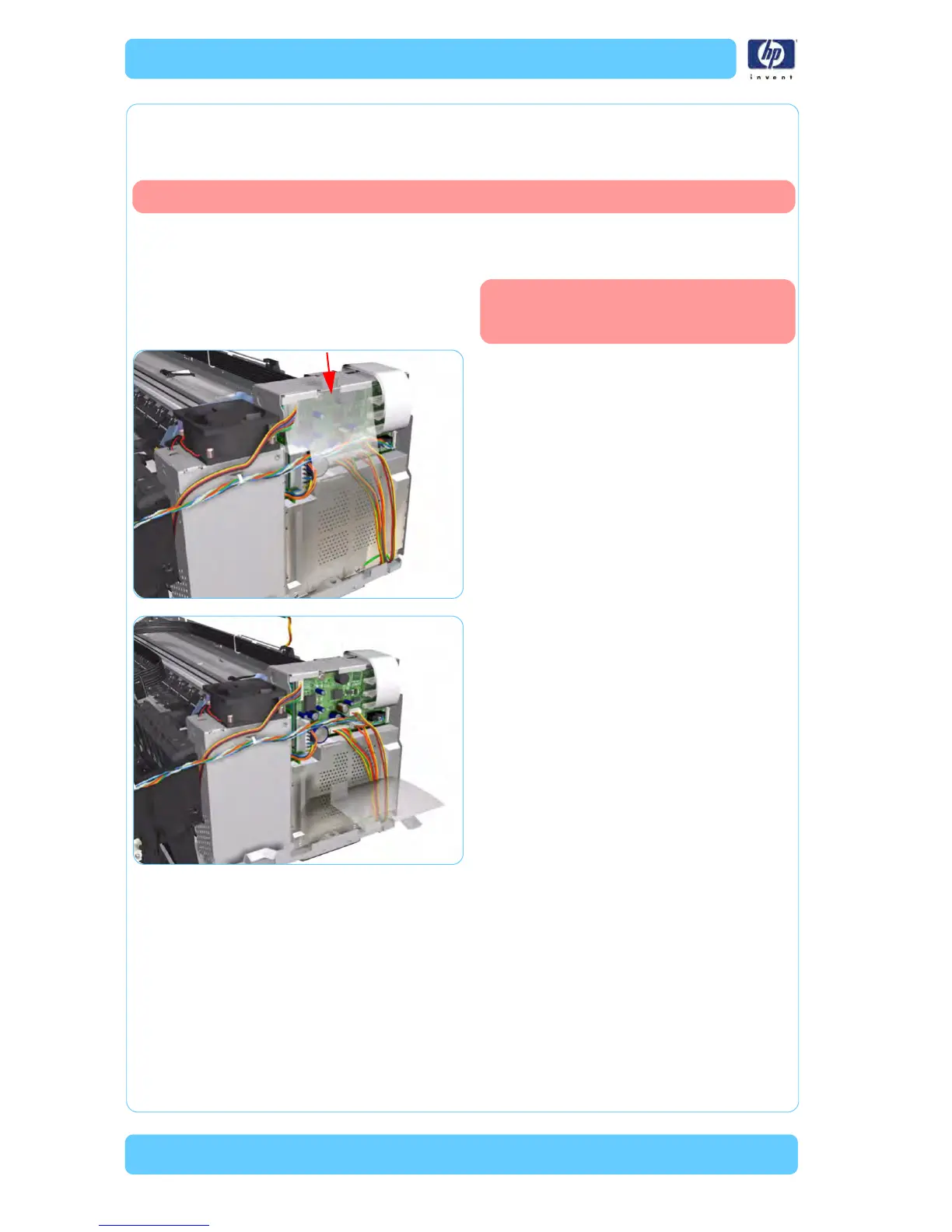

3. Release the Plastic Cover protecting the
Electronics Module.
4. Disconnect ALL the cables from the Main
PCA
.
