5-2
Calibrations
HP Designjet Ultra Low End Printer Service Manual
PRS Adjustment
When Required
It is very important that you perform the PRS Adjustment whenever:
The Pivot Assembly is removed or replaced.
The Feed Roller Assembly is removed or replaced
The Carriage Assembly is replaced (it is not necessary to perform the PRS
Adjustment if the carriage is reseated).
Note: B-size printers do not need Prs Adjustment

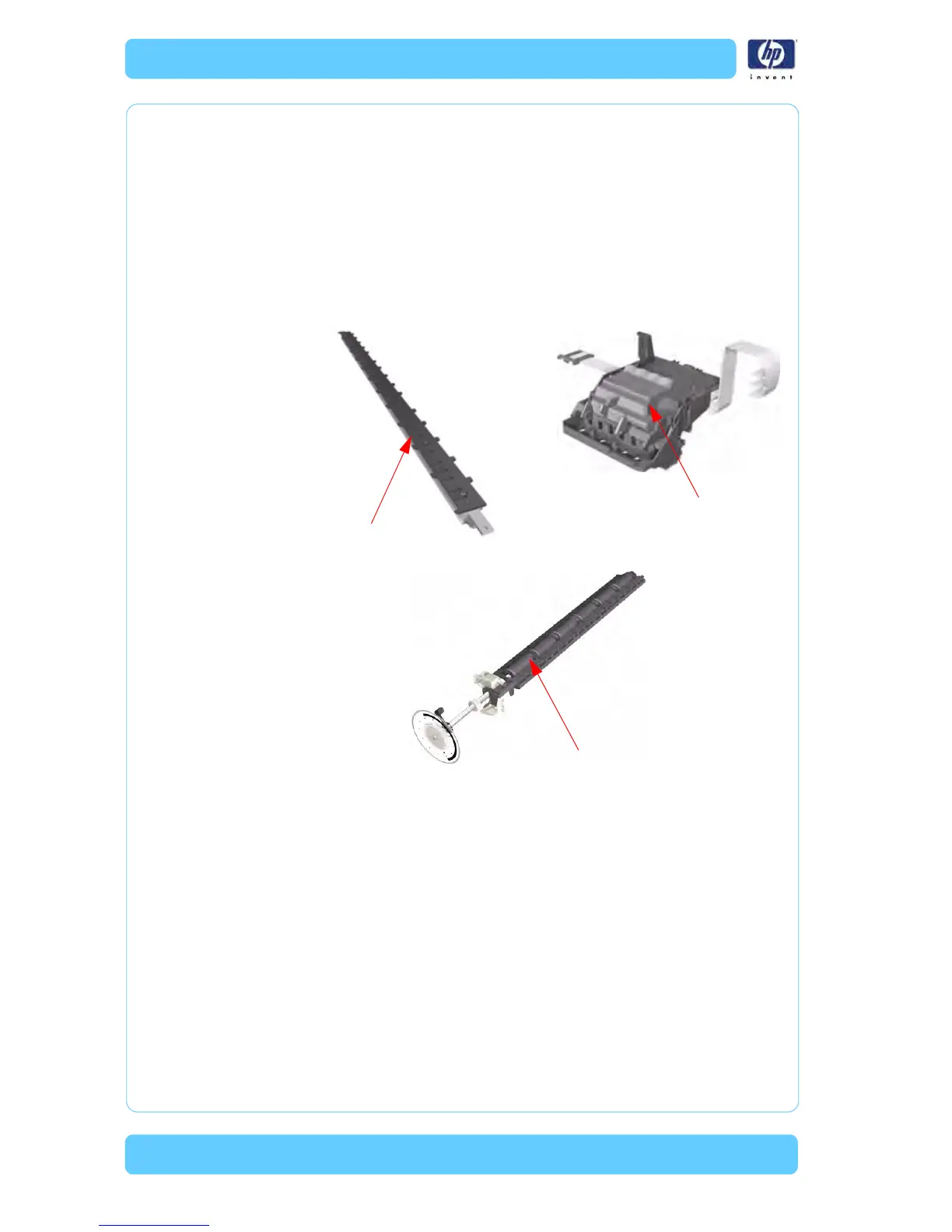

Pivot Assembly
Carriage Assembly
Feed Roller Assembly
