5-8
Calibrations
HP Designjet Ultra Low End Printer Service Manual

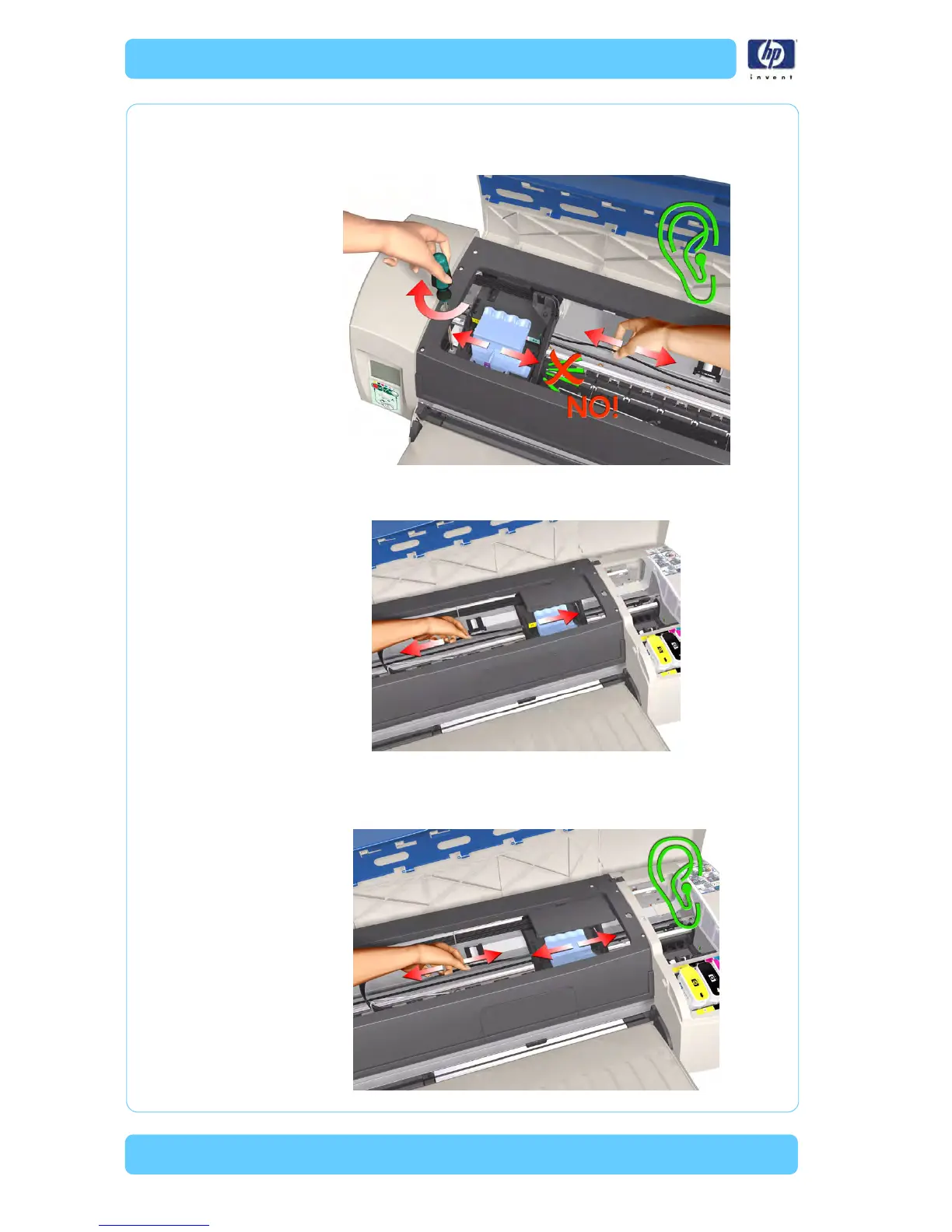

8 Repeat steps 5 to 7 until you reach a point where you will hear the scraping
sound and by turning the screw just 1/8th of a turn clockwise, the scraping
sound will disappear.
9 Move the Carriage Assembly to the right hand side of the Printer (to the
po
sition shown).
10 Using the belt, move the Carriage Assembly backwards and forwards over
the
Pivot Assembly (but staying on the right hand side of the printer),
carefully listening for a scraping sound.
