HP Designjet T1100

6-50 HP Designjet T Series — Service Manual
Removal and Installation
Top Cover
Removal
1. Remove the Window on page 6-12.
2. Re
move the Right Cover on page 6-27.
3. Re
move the Left Cover on page 6-30.
4. Re
move the Rear Tray on page 6-35.
5. Re
move the Rear Cover on page 6-36.
6. Re
move the Front Panel on page 6-47.

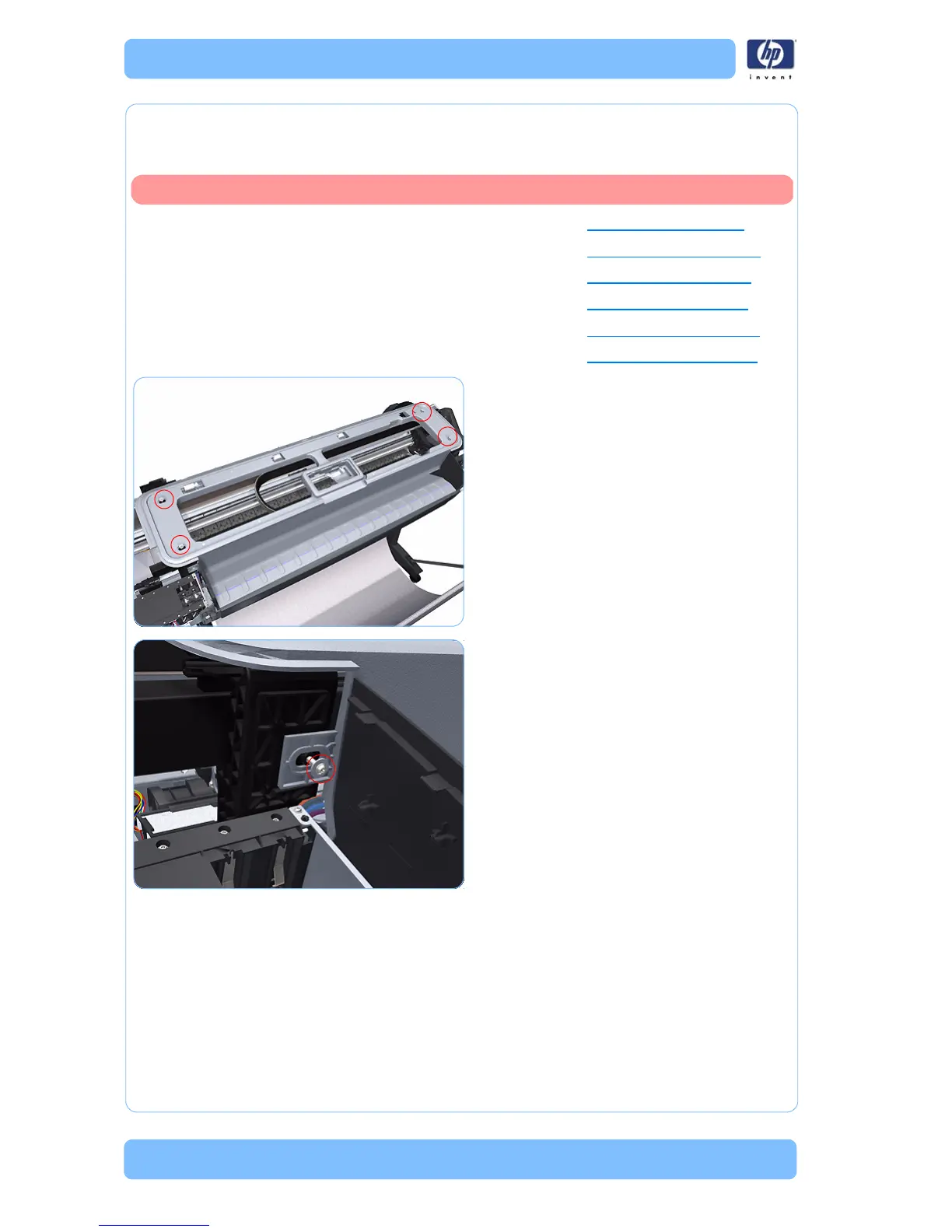

7. Remove the four T-15 top screws that
secure the Top Cover to the printer.
8. Remove the front T-15 screw that secures
the front left side of the Top Cover to the
printer.
Switch off the printer and remove the power cable.
