Removal and Installation - Ink Supply Tubes Support Rail (T1100/T1100ps/T610)

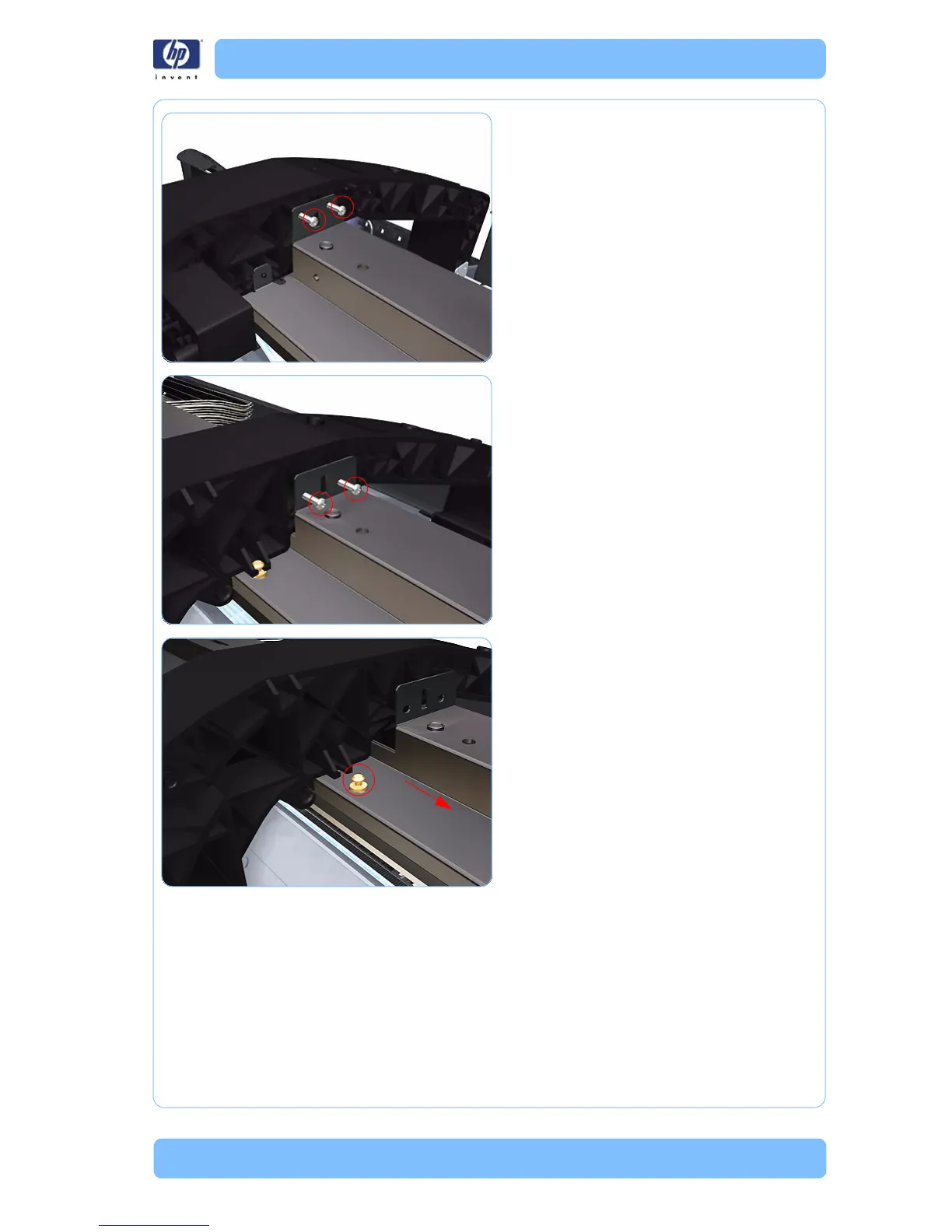

11. Remove two T-15 screws that secure the Ink
Supply Tubes Support Rail to the right Top
Cover Support.
12. Remove two T-15 screws that secure the Ink
Supply Tubes Support Rail to the left Top
Cover Support.
13. Slide the rail to the enough to disengage it
from the attachment lug.
