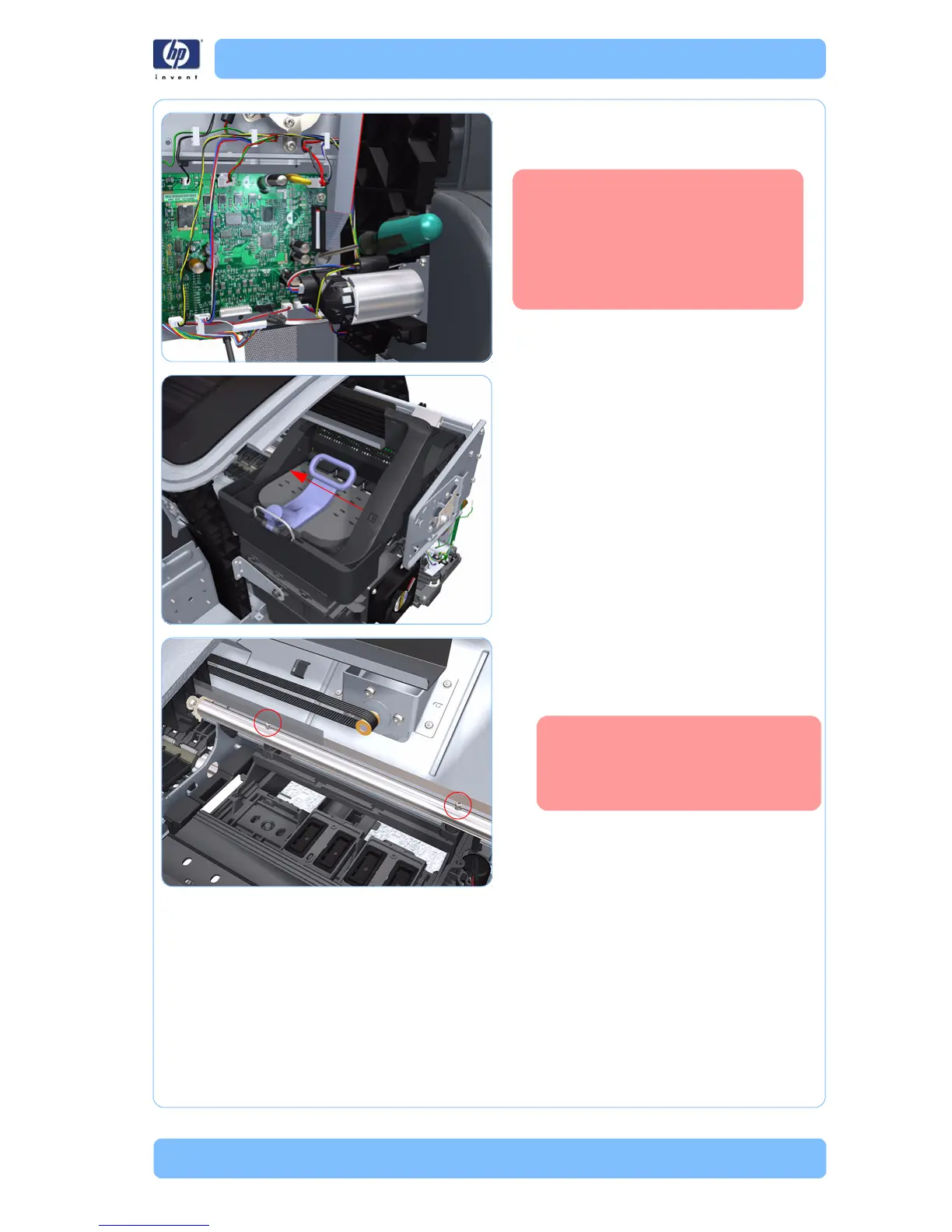

Removal and Installation - Service Station (T1100/T1100ps/T610)
8. Loosen the T-10 uncapping screw
sufficiently so you can manually move the
Carriage Assembly in step
8.
If you are uncapping a 44 inch
printer, you will need to use either
a very long or very short
screwdriver to loosen the
uncapping screw. In this way, you
can loosen the screw and pass the
rewinder motor.
9. Push the Carriage Assembly into the print
path to gain access to two T-10 screws
that secure the Service Station to the
Carriage Rail.
10. Remove the two allen screws that secure
the Service Station to the Carriage Rail. To
avoid damaging the Encoder Strip, you
can use a standard screwdriver.
Support the Service Station so
it does not fall when you
remove the attachment
screws.
44 inch T1100 printer shown (with Rewinder)
