HP Designjet T1100

HP Designjet T Series — Service Manual 6-67
Removal and Installation - Service Station (T1120/T1120ps)

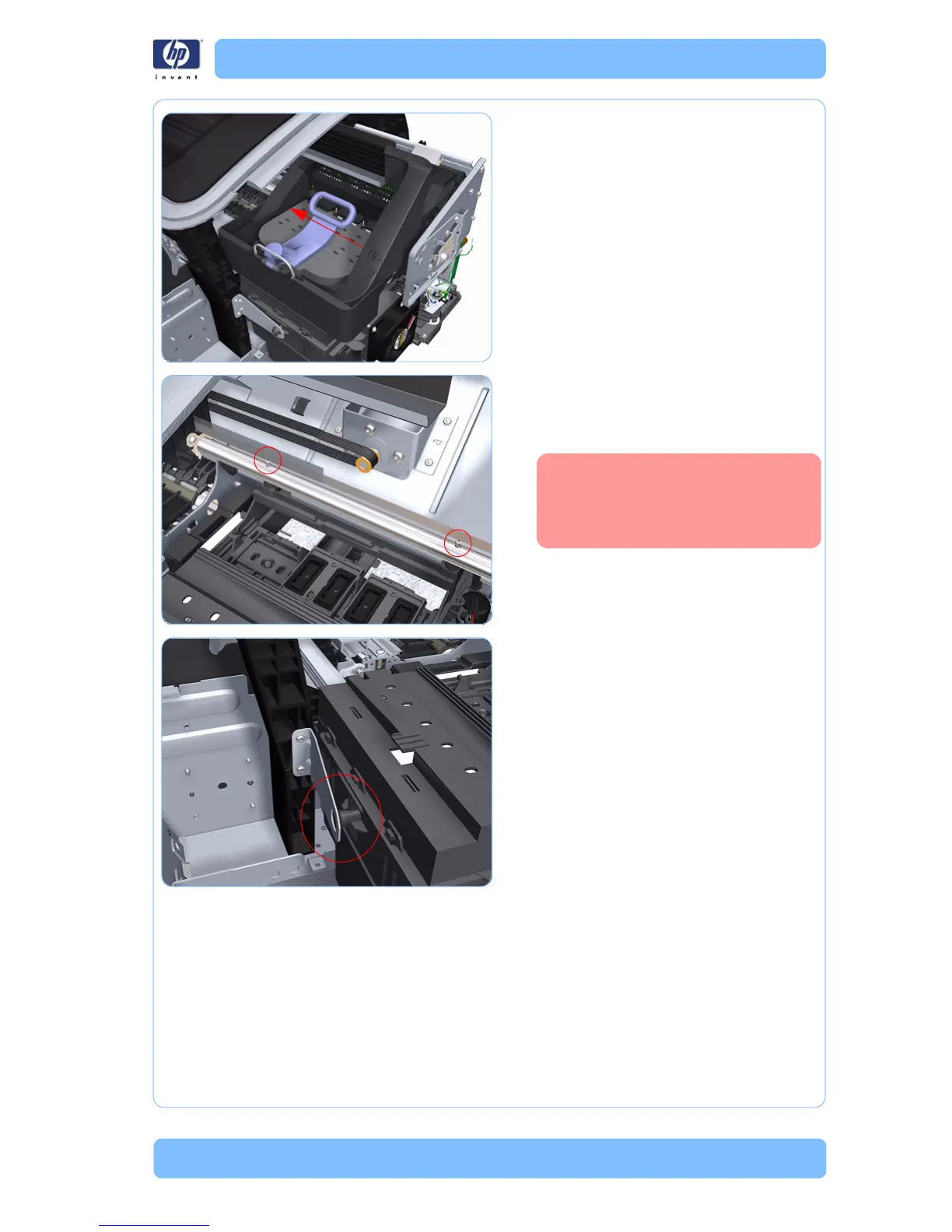

8. Push the Carriage Assembly into the print
path to gain access to two T-10 screws
that secure the Service Station to the
Carriage Rail.
9. Remove the two allen screws that secure
the Service Station to the Carriage Rail. To
avoid damaging the Encoder Strip, you
can use a standard screwdriver.
Support the Service Station so
it does not fall when you
remove the attachment
screws.
10. Unclip the clip to release the Service
Station from the printer.
