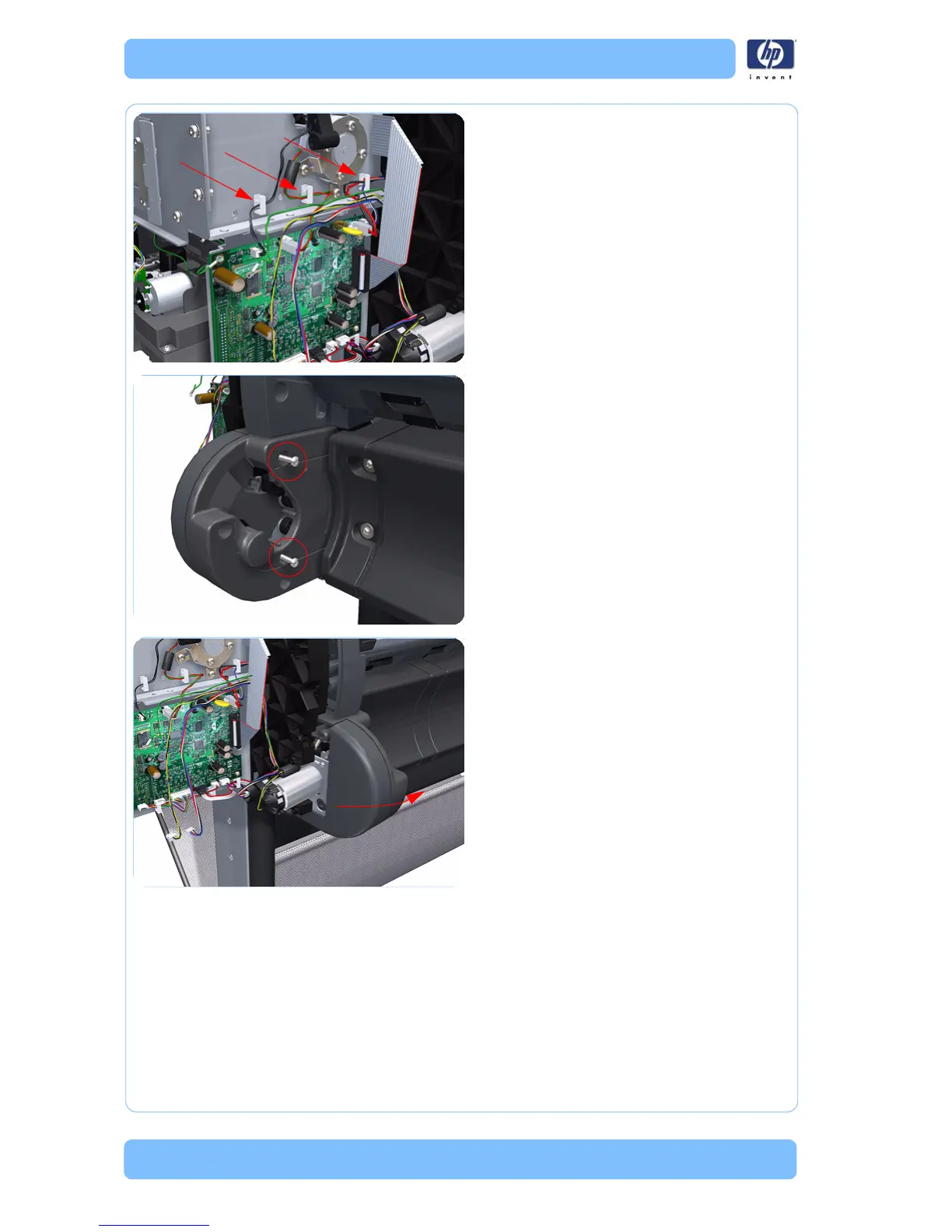

5. Unroute the Rewinder, encoder, and
grounding cables from the cable clamps.
6. Remove the two T-10 screws that secure the
Right Spindle Holder (rewinder included).
7. Unroute the Rewinder and encoder cables
from all other cables. Rotate the Right
Spindle Holder (rewinder included)
towards the right.
44 inch T1100 printer shown (with Rewinder)
44 inch T1100 printer shown (with Rewinder)
44 inch T1100 printer shown (with Rewinder)
