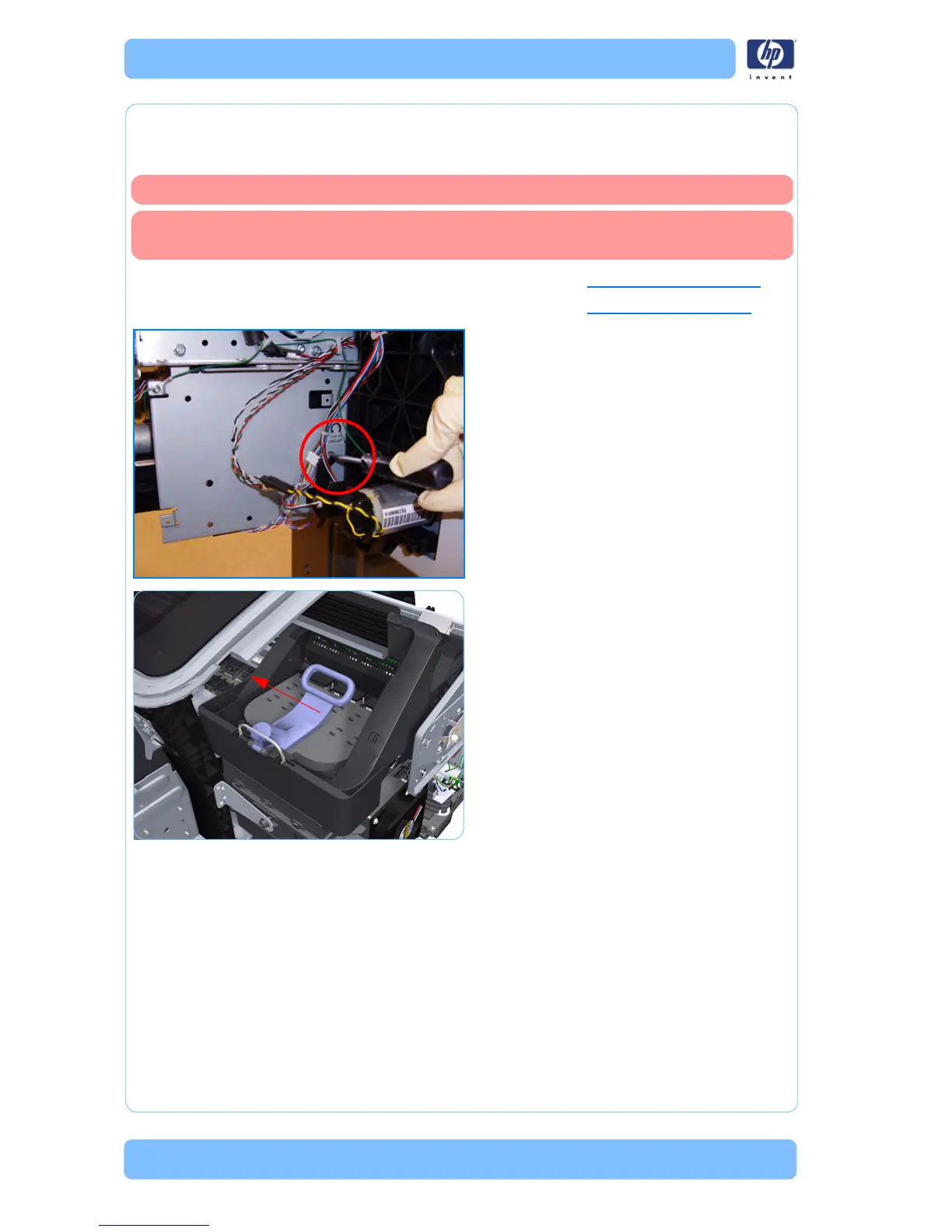

6-146 HP Designjet T Series — Service Manual
Removal and Installation
Scan-Axis Motor (T1120/T1120ps)
Removal
1. Remove the Right Cover on page 6-27.
2. Re
move the Left Cover on page 6-30.
3. Loosen the T-10 uncapping screw
sufficiently so you can manually move the
Carriage Assembly in step 4.
4. Push the Carriage Assembly into the print
path.
Switch off the printer and remove the power cable.
The only difference between the T1120/T1120ps and T1100, T1100ps, T610
Scan-Axis Motor is the cable harness.
